For the approximate turn-on voltage for a germanium diode.
Physics
ScanSolve AI Answer
Answer
C

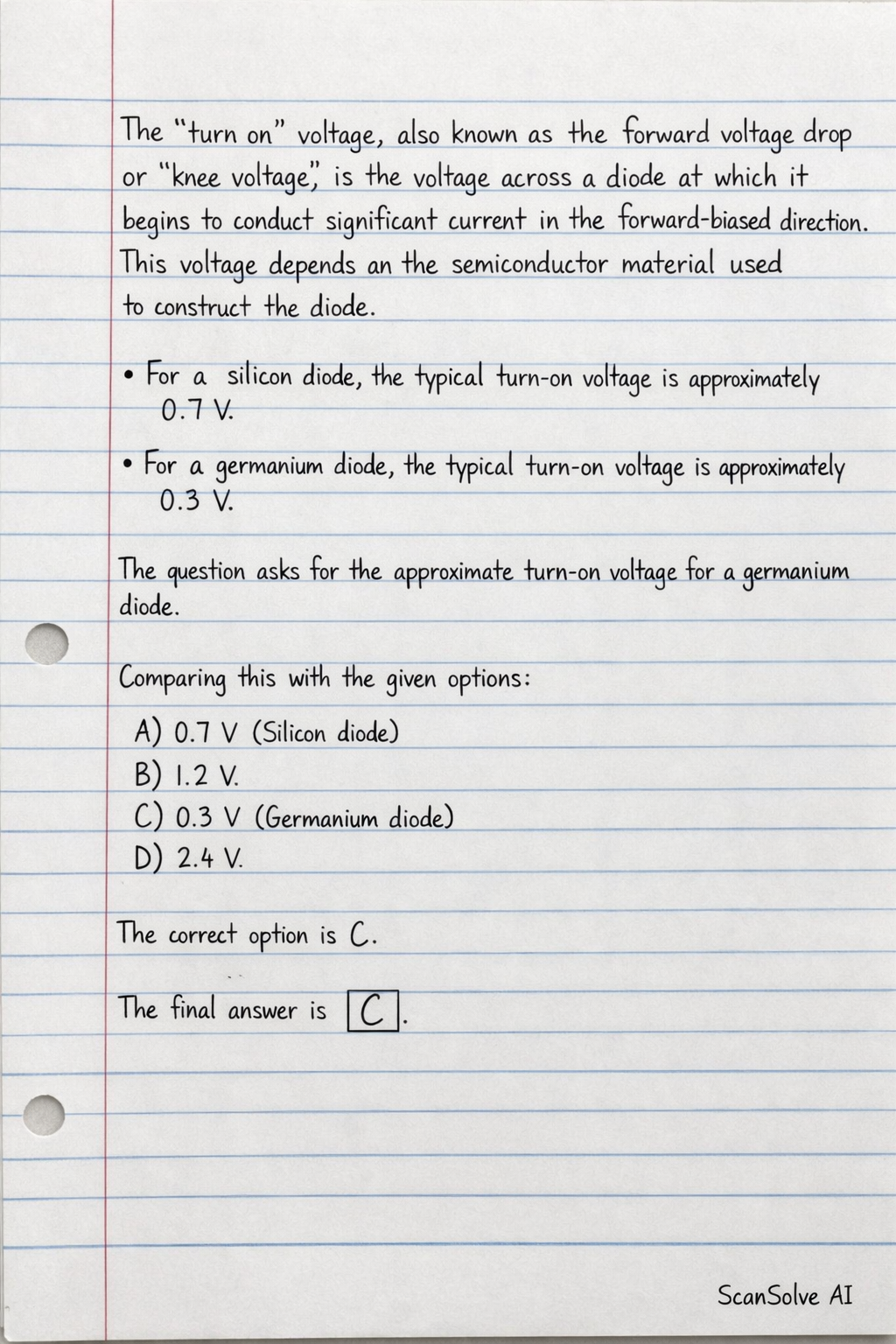

The "turn on" voltage, also known as the forward voltage drop or knee voltage, is the voltage across a diode at which it begins to conduct significant current in the forward-biased direction. This voltage depends on the semiconductor material used to construct the diode.
- For a silicon diode, the typical turn-on voltage is approximately .
- For a germanium diode, the typical turn-on voltage is approximately .
The question asks for the approximate turn-on voltage for a germanium diode.
Comparing this with the given options:
A) (Silicon diode)
B)
C) (Germanium diode)
D)
The correct option is C.
The final answer is .
