Determine if a 1 shell 2 tube pass heat exchanger configuration is suitable, given the following inlet and outlet temperatures for the hot oil and cooling water. Check for temperature cross.

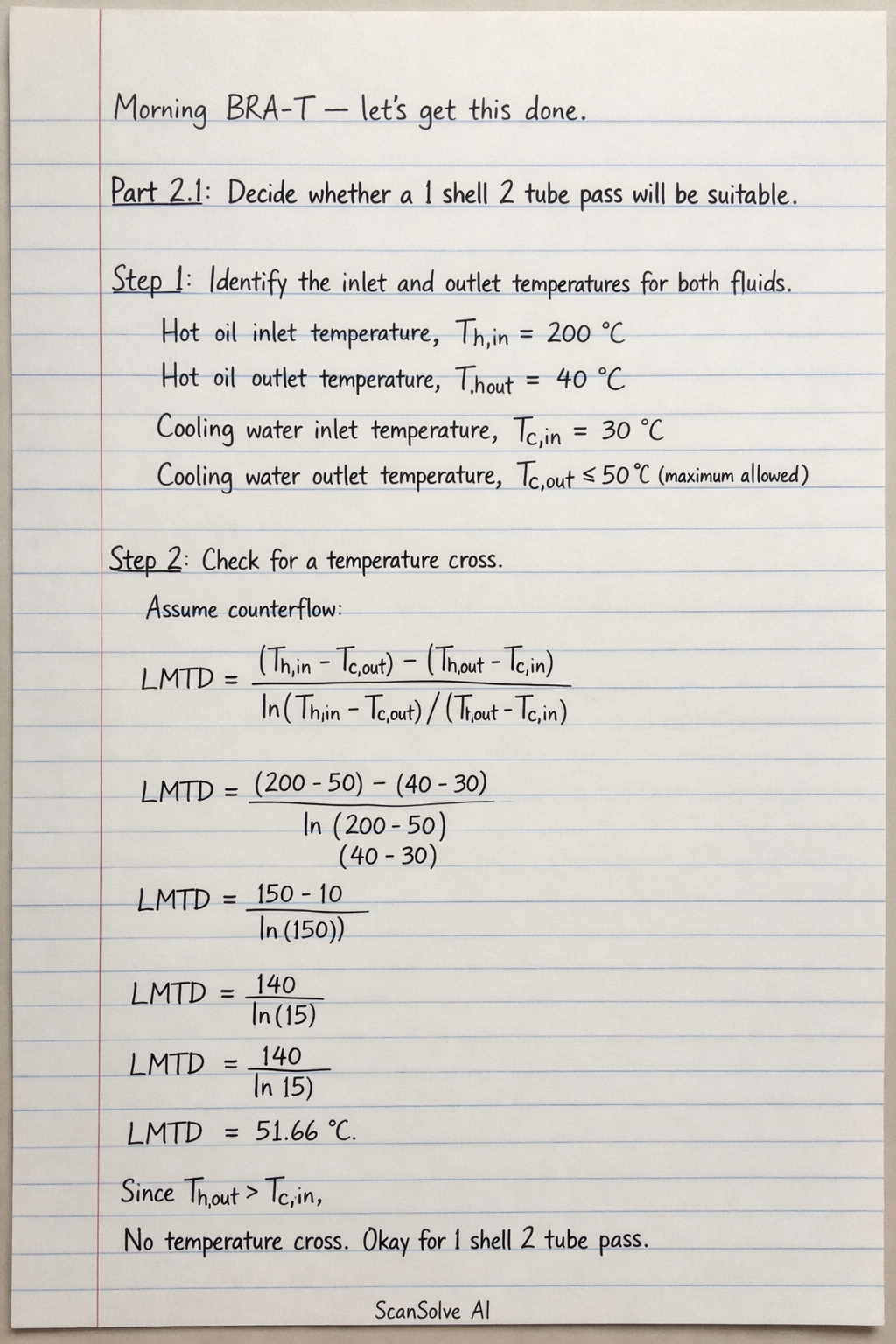

Part 2.1: Decide whether a 1 shell 2 tube pass will be suitable. Step 1: Identify the inlet and outlet temperatures for both fluids. Hot oil inlet temperature, Th,in = 200 °C; Hot oil outlet temperature, Th,out = 40 °C; Cooling water inlet temperature, Tc,in = 30 °C Cooling water outlet temperature, Tc,out ≤ 50 °C (maximum allowed) Step 2: Check for a temperature cross. A

Determine if a 1 shell 2 tube pass heat exchanger configuration is suitable, given the following inlet and outlet temperatures for the hot oil and cooling water. Check for temperature cross.

Part 2.1: Decide whether a 1 shell 2 tube pass will be suitable. Step 1: Identify the inlet and outlet temperatures for both fluids. Hot oil inlet temperature, Th,in = 200 °C; Hot oil outlet temperature, Th,out = 40 °C; Cooling water inlet temperature, Tc,in = 30 °C Cooling water outlet temperature, Tc,out ≤ 50 °C (maximum allowed) Step 2: Check for a temperature cross. A

Solved: Determine if a 1 shell 2 tube pass heat exchanger…

Hot oil inlet temperature, $T_{h,in} = 200 \text{ °C}$
Hot oil outlet temperature, $T_{h,out} = 40 \text{ °C}$
Cooling water inlet temperature, $T_{c,in} = 30 \text{ °C}$
Cooling water outlet temperature, $T_{c,out} \le 50 \text{ °C}$ (maximum allowed)

Determine if a 1 shell 2 tube pass heat exchanger configuration is suitable, given the following inlet and outlet temperatures for the hot oil and cooling water. Check for temperature cross.

Step-by-step solution

Identify the inlet and outlet temperatures for both fluids.

Check for a temperature cross.
