17. (i) Give an example of a machine where the load is between the fulcrum and the effort. (ii) A wheel and axle is used to raise a man whose weight is 800N by the application of 250N. The radii of the wheel and axle are 800mm and 200mm respectively, what is the efficiency of the machine?

Part i

Example of a machine where the load is between the fulcrum and the effort.

This describes a Class 2 lever.
Example: A wheelbarrow.

Part ii

80%80\%

Efficiency of a wheel and axle.

Given:
Load FL=800 NF_L = 800 \text{ N}
Effort FE=250 NF_E = 250 \text{ N}
Wheel radius RW=800 mm=0.8 mR_W = 800 \text{ mm} = 0.8 \text{ m}
Axle radius RA=200 mm=0.2 mR_A = 200 \text{ mm} = 0.2 \text{ m}

  1. Calculate the Mechanical Advantage (MA).

    MA=LoadEffort=FLFEMA = \frac{\text{Load}}{\text{Effort}} = \frac{F_L}{F_E} MA=800 N250 N=3.2MA = \frac{800 \text{ N}}{250 \text{ N}} = 3.2

  2. Calculate the Velocity Ratio (VR).

    VR=Radius of WheelRadius of Axle=RWRAVR = \frac{\text{Radius of Wheel}}{\text{Radius of Axle}} = \frac{R_W}{R_A} VR=0.8 m0.2 m=4VR = \frac{0.8 \text{ m}}{0.2 \text{ m}} = 4

  3. Calculate the efficiency (η\eta).

    η=MAVR×100%\eta = \frac{MA}{VR} \times 100\% η=3.24×100%\eta = \frac{3.2}{4} \times 100\% η=0.8×100%=80%\eta = 0.8 \times 100\% = 80\%

    The efficiency of the machine is 80%\boxed{80\%}.

Was this helpful?

Try one yourself

A new problem that tests the same skill.

Still stuck on this one?

Ask a follow-up, and the answer starts from this question.

Got a different question?Ask your own question

More Physics Questions

QA wheel and axle have radii 80cm and 10cm respectively. If the efficiency of the machine is 0.85, an…QCalculate the mechanical advantage of a machine given the load is 180 N and the effort is 20 N.QIn Class III levers, the effort lies between load and fulcrum. Mechanical Advantage (MA) of inclined…QA machine lifts a load of 180 N with an effort of 20 N. Calculate the mechanical advantage.QA student was using a machine of velocity ratio of 1 where he applied an effort of 750N and had a…
See all Physics questions →
Got a syllabus? Photograph it and I'll tell you what's due and what's worth the most.

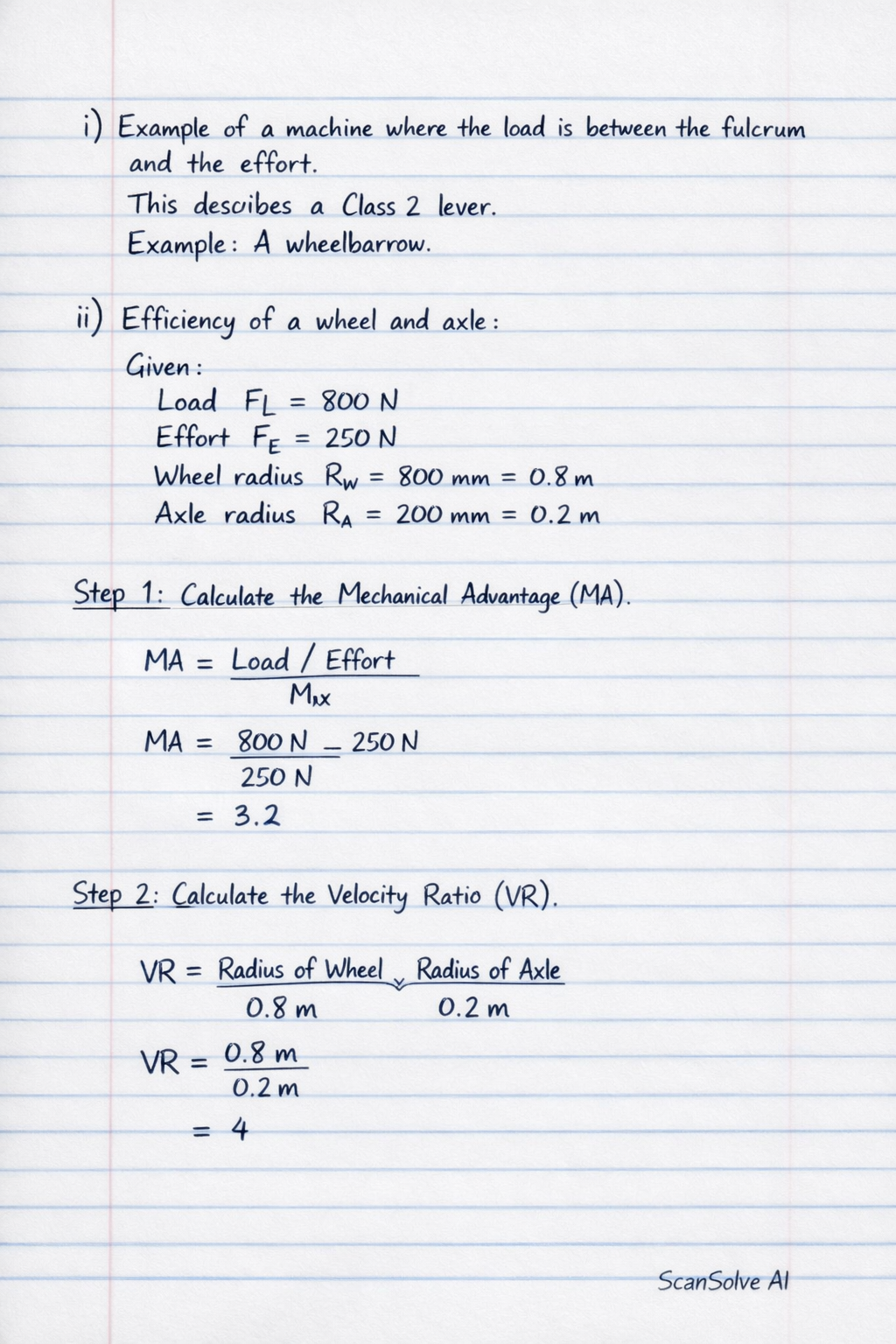

Handwritten step-by-step solution preview
