State Ohm's law in words.

Physics

ScanSolve AI Answer

Step-by-step solution

2 steps
  1. State Ohm's law in words.

    Ohm's law states that the current flowing through a conductor between two points is directly proportional to the voltage across the two points, and inversely proportional to the resistance between them, provided the temperature and other physical conditions remain constant.

  2. Calculate values for the circuit when both switches S1S_1 and S2S_2 are CLOSED.

    In this configuration, the 2 Ω2 \, \Omega and 5 Ω5 \, \Omega resistors are in series in one branch, and the 3 Ω3 \, \Omega resistor is in a parallel branch. Ammeter A1A_1 measures the current through the 2 Ω2 \, \Omega and 5 Ω5 \, \Omega branch, which is given as $1.5 ,

Was this helpful?

Still stuck on this one?

Ask a follow-up, and the answer starts from this question.

Got a different question?Ask your own question

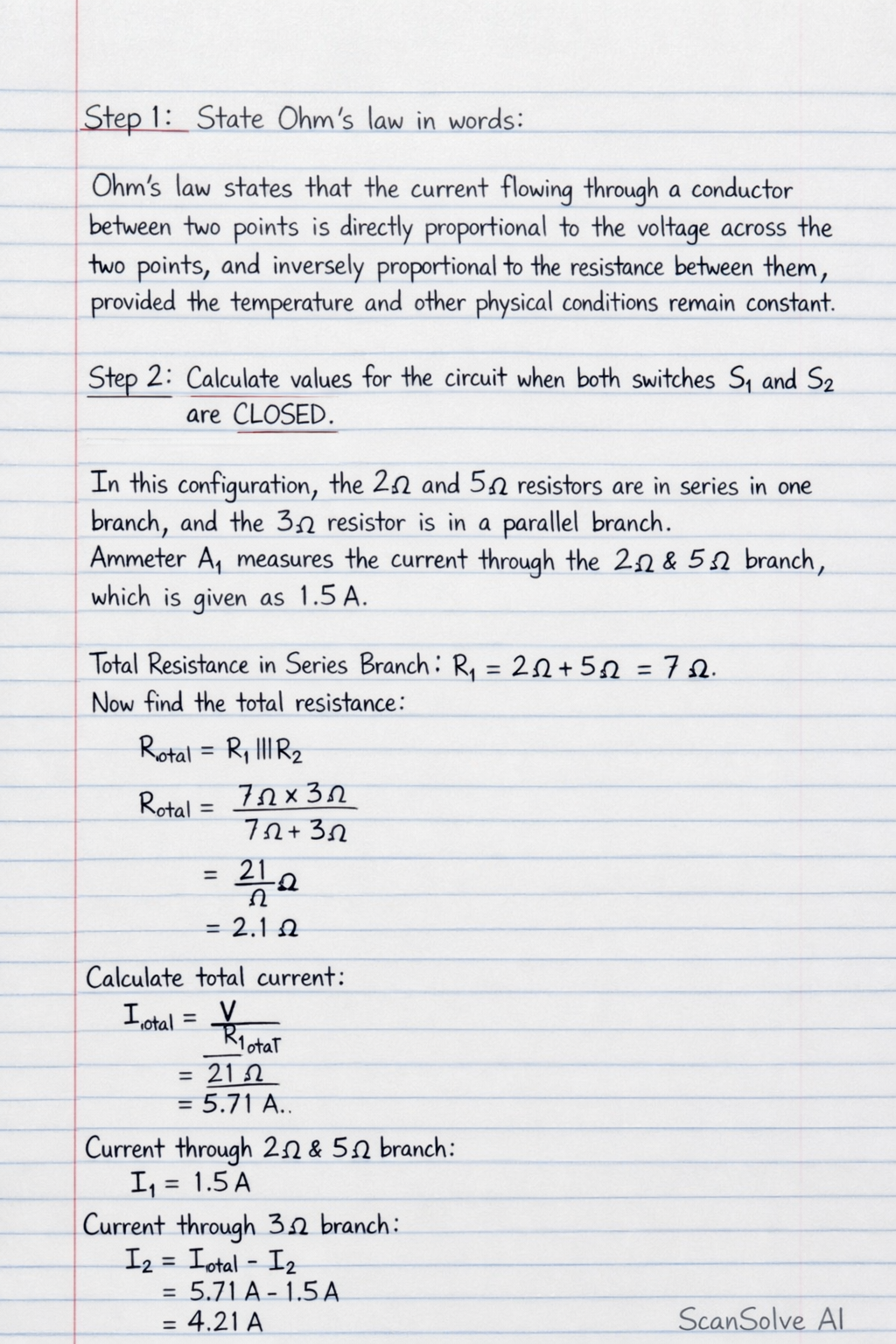

Handwritten step-by-step solution preview
