Part 8.1: Circuit Analysis
This physics problem tests your understanding of fundamental physical laws and their applications. The step-by-step solution below breaks down the problem using relevant equations and physical reasoning.
ScanSolve AI Answer
Here's a step-by-step solution to the problem.

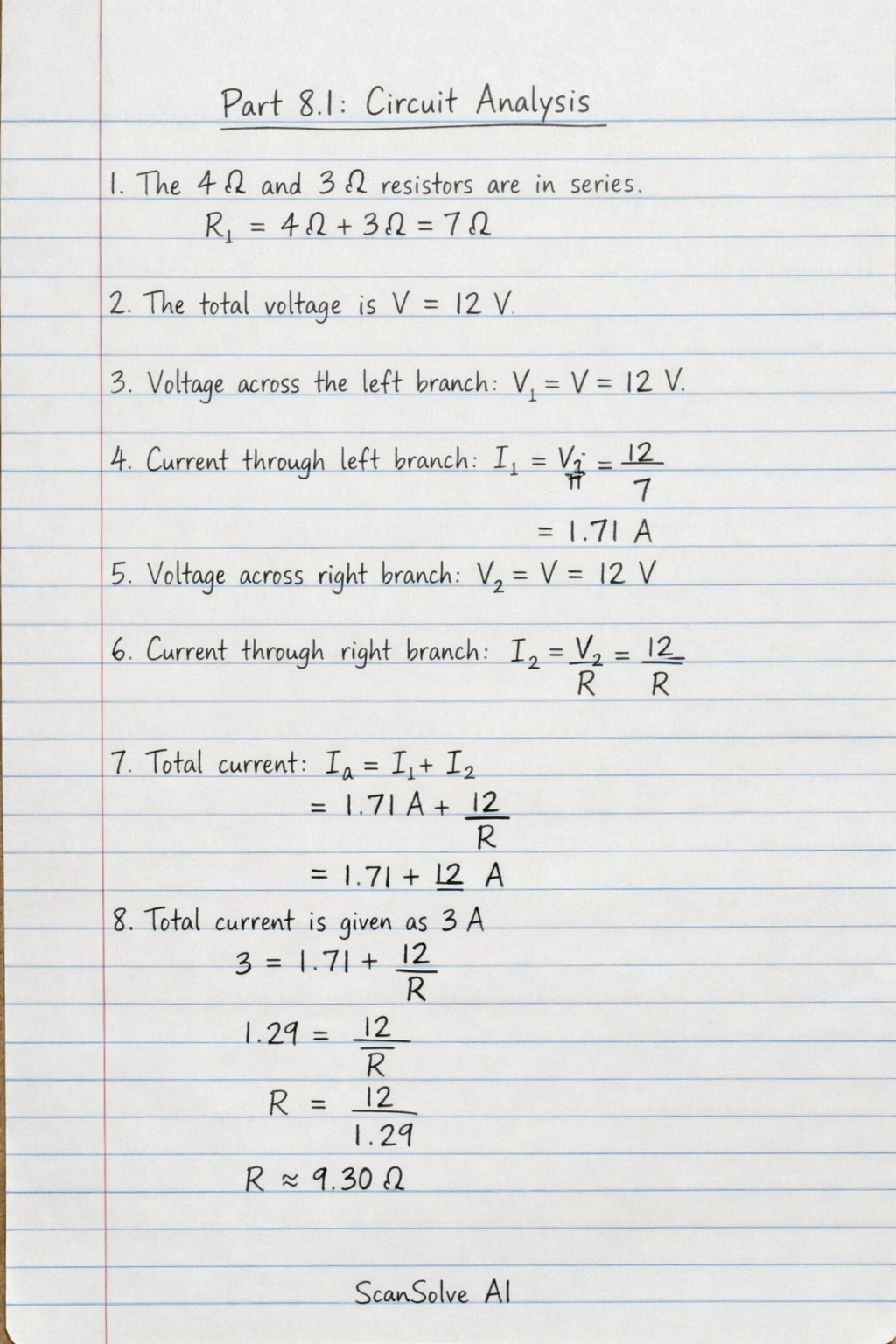

Part 8.1: Circuit Analysis
Assumptions based on the circuit diagram and problem statement:
The $4 \Omega$ resistor is in series with the $3 \Omega$ resistor. Let's call this the "left branch".
The unknown resistor $R$ is in parallel with the left branch. Let's call this the "right branch".
Switch $S_1$ is in series with the $3 \Omega$ resistor.
Switch $S_2$ is in series with resistor $R$.
The ammeter (A) measures the total current from the battery.
The battery voltage is $V_{
