We read your photo as:

Explain the relationship between optical density and the refractive index of a medium. What does a higher refractive index indicate?

Physics

ScanSolve AI Answer

Answer

b

25.37∘\text{25.37}^\circ

Step-by-step solution

4 steps

Part a

Snell's law states the relationship between the angles of incidence and refraction and the refractive indices of the two media.

n1sin⁡(θ1)=n2sin⁡(θ2)n_1 \sin(\theta_1) = n_2 \sin(\theta_2)

where n1n_1 is the refractive index of the first medium, θ1\theta_1 is the angle of incidence, n2n_2 is the refractive index of the second medium, and θ2\theta_2 is the angle of refraction.

Part b

25.37∘\text{25.37}^\circ

  1. State the given values.

    Given:
    Refractive index of air, n1=1.0n_1 = 1.0
    Angle of incidence in air, θ1=40∘\theta_1 = 40^\circ
    Refractive index of glass, n2=1.5n_2 = 1.5

  2. Apply Snell's Law.

    n1sin⁡(θ1)=n2sin⁡(θ2)n_1 \sin(\theta_1) = n_2 \sin(\theta_2) 1.0×sin⁡(40∘)=1.5×sin⁡(θ2)1.0 \times \sin(40^\circ) = 1.5 \times \sin(\theta_2)

  3. Calculate sin⁡(θ2)\sin(\theta_2).

    0.6428=1.5×sin⁡(θ2)0.6428 = 1.5 \times \sin(\theta_2) sin⁡(θ2)=0.64281.5\sin(\theta_2) = \frac{0.6428}{1.5} sin⁡(θ2)≈0.4285\sin(\theta_2) \approx 0.4285

  4. Calculate θ2\theta_2.

    θ2=arcsin⁡(0.4285)\theta_2 = \arcsin(0.4285) θ2≈25.37∘\theta_2 \approx 25.37^\circ

    The angle of refraction in the glass is 25.37∘\boxed{\text{25.37}^\circ}.

Part c

The light ray will bend towards the normal. This is because light is traveling from a medium with a lower refractive index (air, n=1.0n=1.0) to a medium with a higher refractive index (glass, n=1.5n=1.5). When light enters a denser optical medium, it slows down and bends towards the normal.

Was this helpful?

Try one yourself

A new problem that tests the same skill.

Still stuck on this one?

Ask a follow-up, and the answer starts from this question.

Got a different question?Ask your own question

More Physics Questions

QDefine the refractive index of a mediumQExplain what meant by the refractive index of a material is 1.33QCalculate the refractive index of glass with respect to water given their refractive indices with…QCalculate the refractive index of diamond with respect to water and determine in which medium light…QDetermine the refractive index of a medium using experimental data and Snell's Law.
See all Physics questions →
Got a syllabus? Photograph it and I'll tell you what's due and what's worth the most.

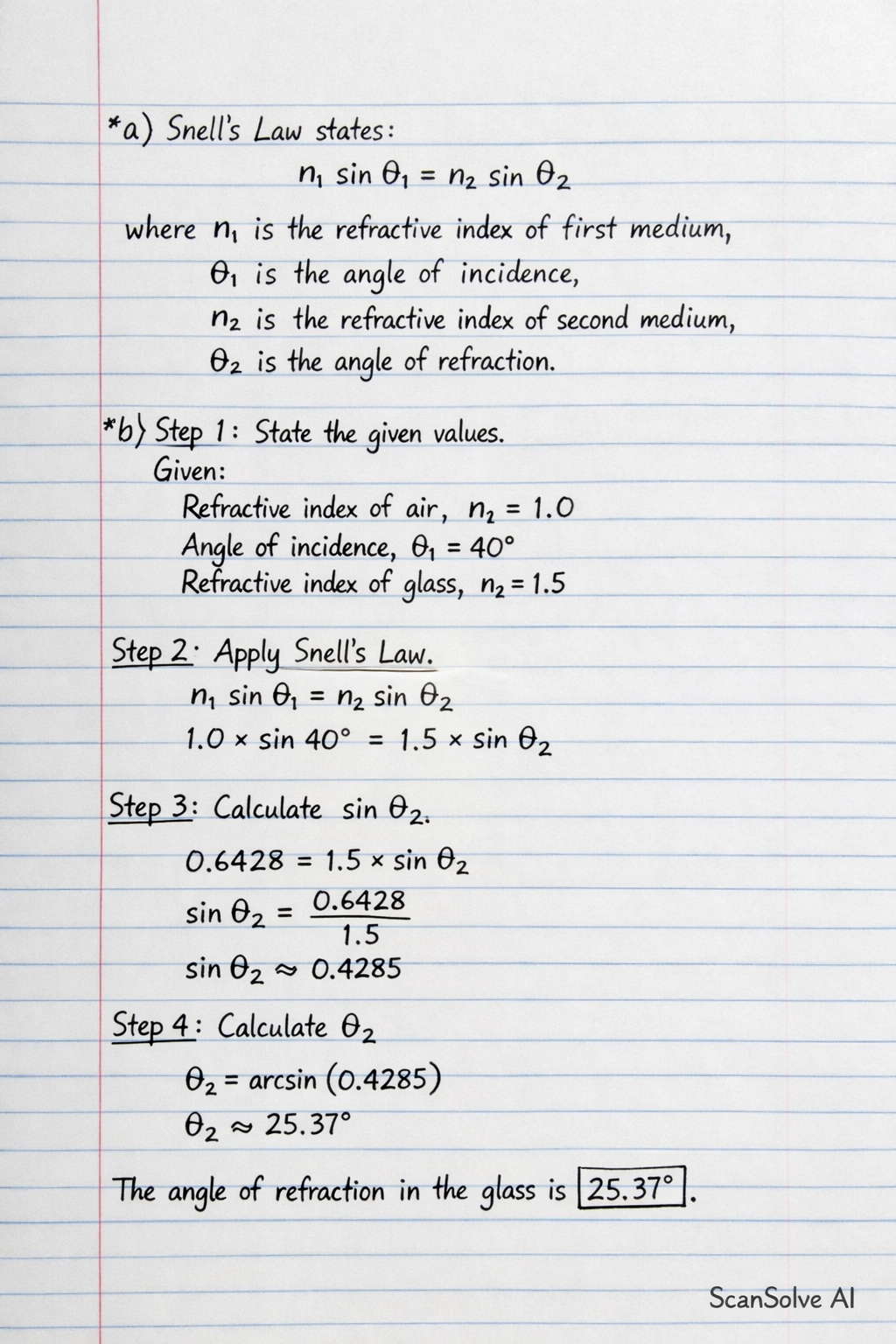

Handwritten step-by-step solution preview
