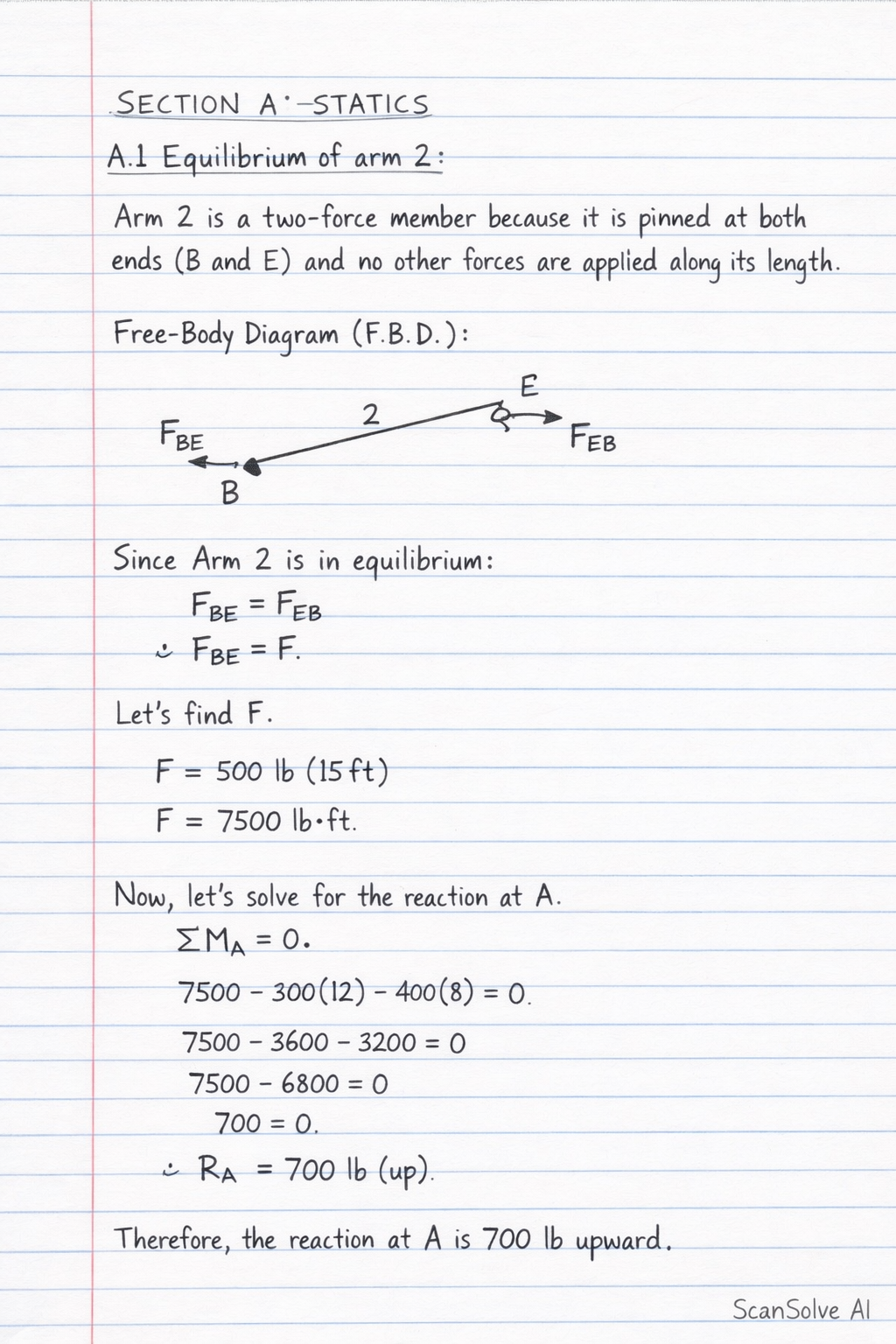

Here's a complete solution for the statics problems presented. SECTION A: STATICS A.1 Equilibrium of arm 2: Arm 2 is a two-force member because it is pinned at both ends (B and E) and no other forces are applied along its length. F.P.S. (Free-body Diagram): [scale=0.8] (0,0) -- (4,1); % Arm 2 at (2,0.5) 2; (0,0) circle (1.5pt) node[below left] B;
