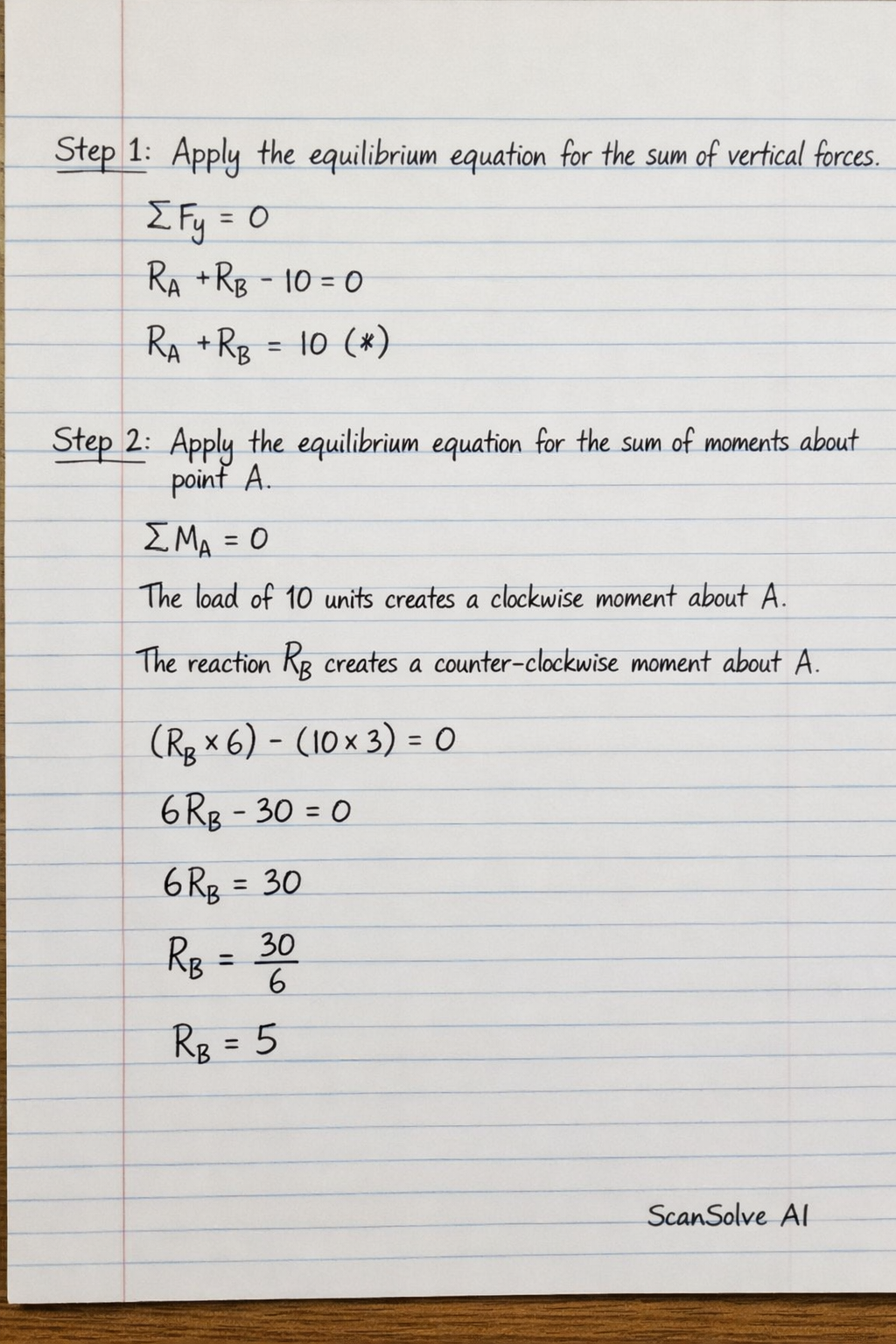

To determine the reactions at supports A and B, we will use the equations of static equilibrium. Let R_A be the reaction force at support A. Let R_B be the reaction force at support B. The downward point load is 10 units. The distance from A to the load is 3 units. The distance from the load to B is 3 units. The total length of the beam is 3 + 3 = 6 units. Step 1: Apply the equilibrium equation for the sum of vertical forces. Assume upward forces are positive and downward forces are negative. F_y = 0 R_A + R_B - 10 = 0 R_A + R_B = 10 (*) Step 2: Apply the equilibrium equation for the sum of moments about point A. Assume counter-clockwise moments are positive. M_A = 0 The load of 10 units creates a clockwise moment about A. The reaction R_B creates a counter-clockwise moment about A. (R_B × 6) - (10 × 3) = 0 6 R_B - 30 = 0 6 R_B = 30 R_B = (30)/(6) R_B = 5 Step 3: Substitute the value of R_B into equation (*) to find R_A. R_A + 5 = 10 R_A = 10 - 5 R_A = 5 The reactions at the supports are: R_A = 5 units R_B = 5 units The final answer is R_A = 5, R_B = 5.
