The first stage of the circuit converts a direct current (d.c.) to an alternating current (a.c.). Explain why a transformer needs a.c. to work.
ScanSolve AI Answer
Step-by-step solution
2 stepsc)
State the principle of a transformer.
A transformer operates on the principle of electromagnetic induction. This requires a changing magnetic field to induce an electromotive force (e.m.f.) in the secondary coil.
Explain why a.c.
is necessary.
Alternating current (a.c.) continuously changes its direction and magnitude, which in turn produces a continuously changing magnetic flux in the primary coil. This changing flux links with the secondary coil, inducing an a.c. voltage across it. Direct current (d.c.) produces a constant magnetic field, which does not induce a continuous e.m.f. in the secondary coil.
Still stuck on this one?
Ask a follow-up, and the answer starts from this question.
More Physics Questions

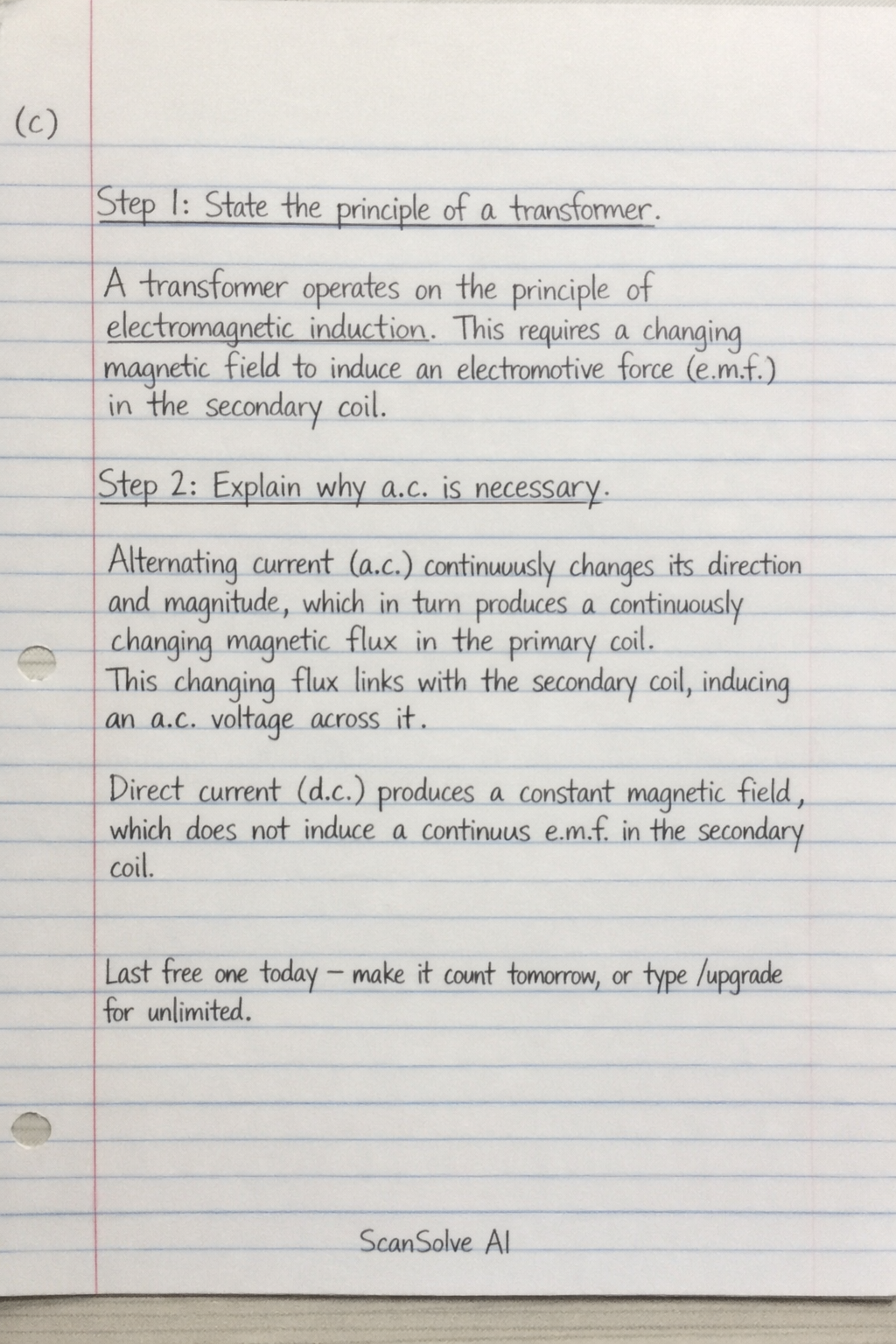

Handwritten Step-by-Step Solution
