What are the recommended filler rod, flame, and flux selections for oxy-acetylene welding of various iron, carbon steel, and cast steel types?
Physics
ScanSolve AI Answer
Answer
This table, "Table 1. Filler rod, flame and flux selection," provides guidelines for selecting the appropriate flame, filler rod, and flux for various metals during oxy-acetylene fusion welding.
Here is a summary of the recommendations:
-
IRON
- Wrought iron:
- Flame: neutral
- Filler rod: COMWELD mild steel
- Flux: none
- Low carbon iron:
- Flame: neutral
- Filler rod: COMWELD mild steel
- Flux: none
- Galvanised iron:
- Flame: slightly oxidising
- Filler rod: COMWELD COMBOND 411
- Flux: COMWELD copper & brass
- Wrought iron:
-
CARBON STEELS
- Mild steel (up to 0.30%C):
- Flame: neutral
- Filler rod: COMWELD mild steel
- Flux: none
- Medium carbon (0.30% - 0.50%C):
- Flame: slightly carburising
- Filler rod: COMWELD super steel
- Flux: none
- High carbon (0.50% - 0.90C):
- Flame: slightly oxidising
- Filler rod: COMWELD nickel bronze
- Flux: COMWELD copper & brass
- Tool steel (0.80% - 1.50%C):
- Flame: slightly oxidising
- Filler rod: COMWELD nickel bronze
- Flux: COMWELD copper & brass
- Mild steel (up to 0.30%C):
-
CAST STEELS
- Plain carbon (up to 0.25%C):
- Flame: neutral
- Filler rod: COMWELD high test
- Flux: none
- Low alloy:
- Flame: neutral
- Filler rod: COMWELD high test
- Flux: none
- Plain carbon (up to 0.25%C):
-
CAST IRONS
- Grey cast iron:
- Flame: neutral
- Filler rod: COMWELD cast iron
- Flux: COMWELD cast iron
- Malleable iron:
- Flame: slightly oxidising
- Filler rod: COMWELD COMBOND 411
- Flux: COMWELD bronze
- Grey cast iron:
-
LOW ALLOY HIGH TENSILE STEELS
- Molybdenum or Manganese:
- Flame: neutral
- Filler rod: COMWELD super steel
- Flux: none
- Molybdenum or Manganese:
Was this helpful?
Still stuck on this one?
Ask a follow-up, and the answer starts from this question.
Got a different question?Ask your own question
More Physics Questions
QWhat are the recommended settings and preparations for oxy-acetylene welding based on plate…QThe components of Air used by welder isQThe Component of air used by welders isQDraw and name the parts of MMAW (Metal Arc Welding) and the elements of Arc welding.QExplain the functions of the following oxygen acetylene

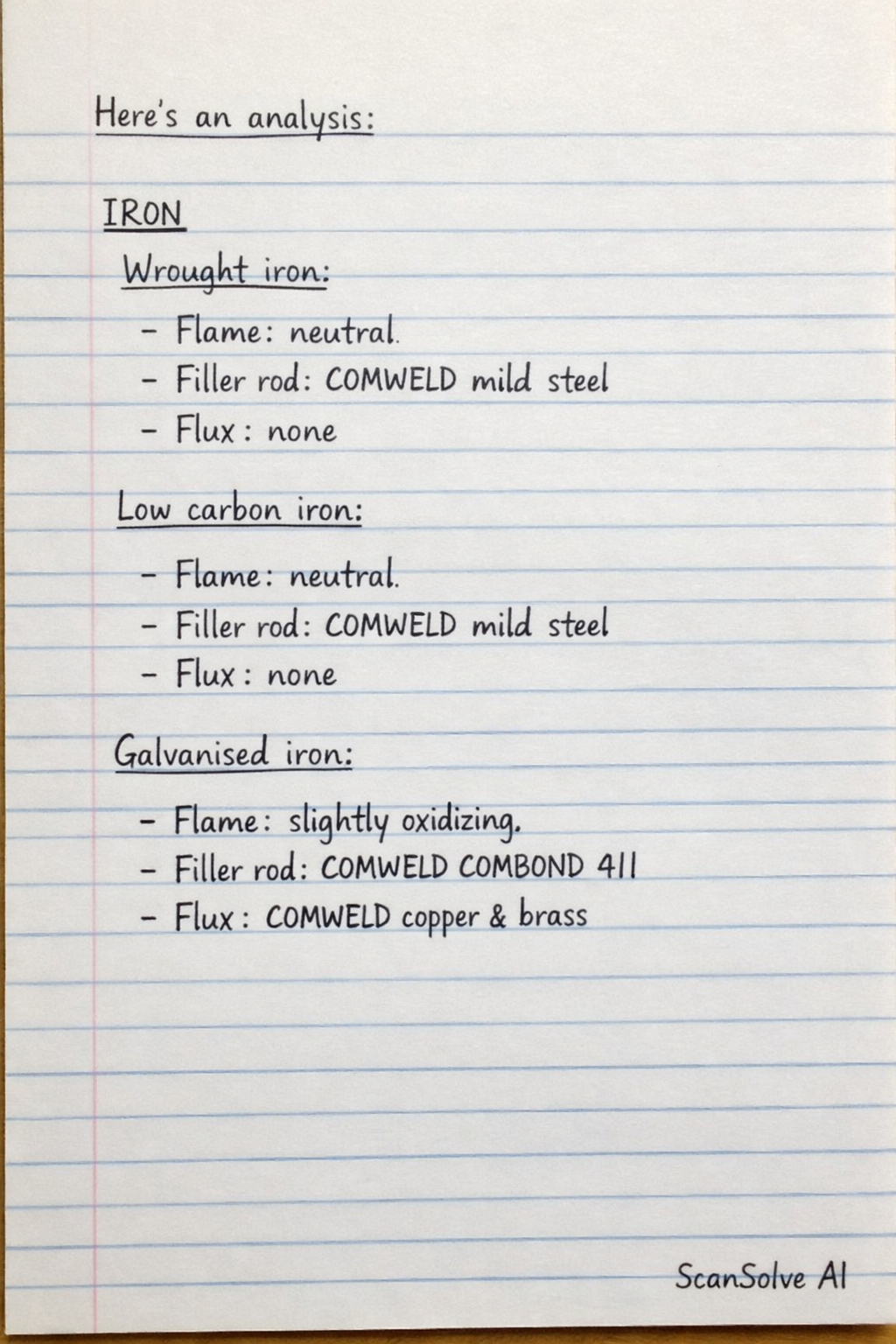

Handwritten Step-by-Step Solution
