Calculate the total distance covered by the particle shown in the speed-time graph.

Question

ScanSolve AI Tutor · Accepted Answer

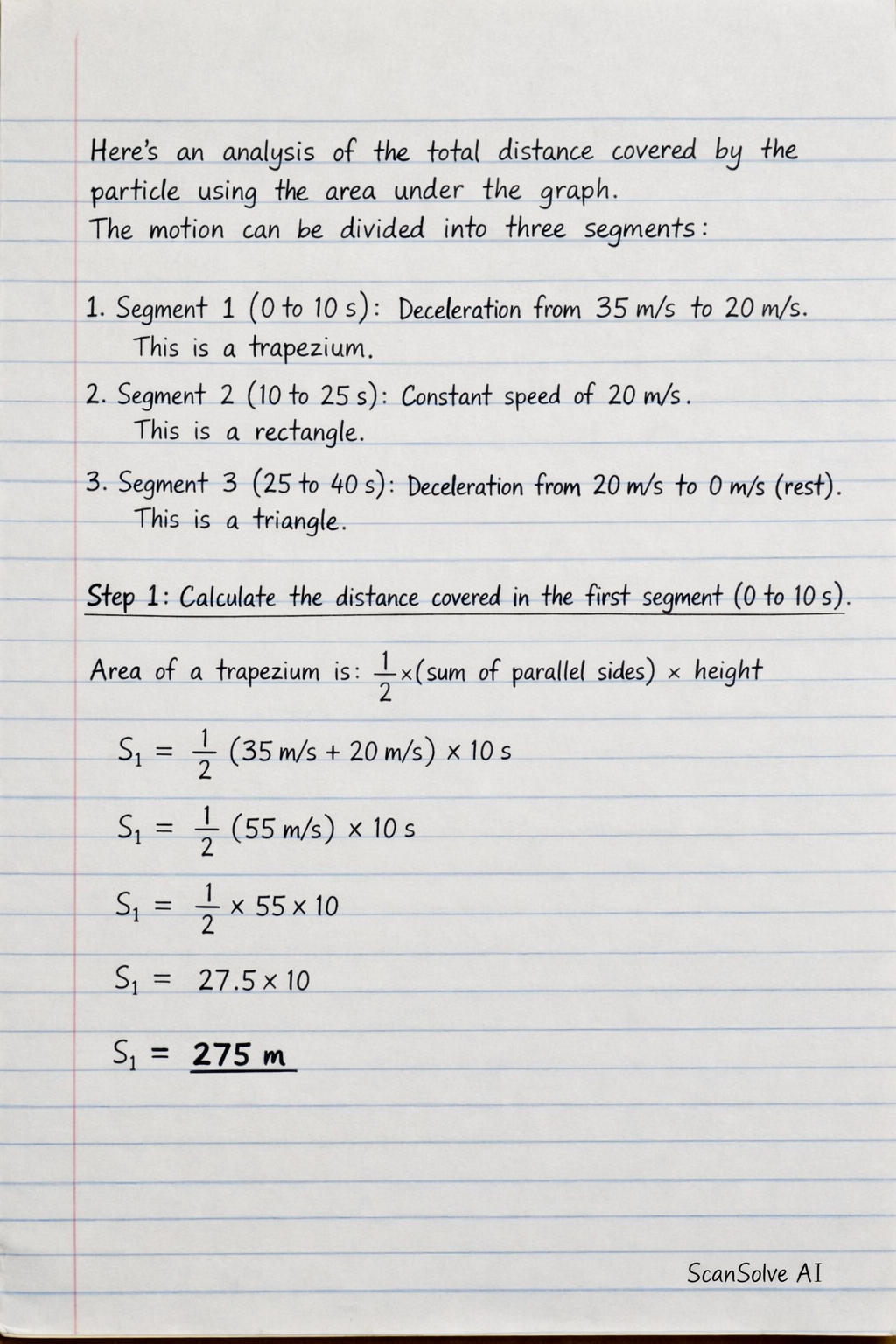

The question asks to calculate a quantity based on the provided speed-time graph. Assuming the question asks for the total distance covered by the particle, we will calculate the area under the graph. The motion can be divided into three segments:

Segment 1 (0 to 10 s): Deceleration from $35 \text{ m/s}$ to $20 \text{ m/s}$ . This is a trapezium.
Segment 2 (10 to 25 s): Constant speed of $20 \text{ m/s}$ . This is a rectangle.
Segment 3 (25 to 40 s): Deceleration from $20 \text{ m/s}$ to $0 \text{ m/s}$ (rest). This is a triangle.

Calculate the distance covered in the first segment (0 to 10 s).
The area of a trapezium is given by $\frac{1}{2} \times (\text{sum of parallel sides}) \times \text{height}$ .
$S_1 = \frac{1}{2} (35 \text{ m/s} + 20 \text{ m/s}) \times 10 \text{ s}$ $S_1 = \frac{1}{2} (55 \text{ m/s}) \times 10 \text{ s}$ $S_1 = 55 \text{ m/s} \times 5 \text{ s} = 275 \text{ m}$
Calculate the distance covered in the second segment (10 to 25 s).
The area of a rectangle is given by $\text{length} \times \text{width}$ .
$S_2 = 20 \text{ m/s} \times (25 \text{ s} - 10 \text{ s})$ $S_2 = 20 \text{ m/s} \times 15 \text{ s} = 300 \text{ m}$
Calculate the distance covered in the third segment (25 to 40 s).
The area of a triangle is given by $\frac{1}{2} \times \text{base} \times \text{height}$ .
$S_3 = \frac{1}{2} \times (40 \text{ s} - 25 \text{ s}) \times 20 \text{ m/s}$ $S_3 = \frac{1}{2} \times 15 \text{ s} \times 20 \text{ m/s}$ $S_3 = 15 \text{ s} \times 10 \text{ m/s} = 150 \text{ m}$
Calculate the total distance covered.
The total distance is the sum of the distances from each segment.
$S_{\text{total}} = S_1 + S_2 + S_3$ $S_{\text{total}} = 275 \text{ m} + 300 \text{ m} + 150 \text{ m}$ $S_{\text{total}} = 725 \text{ m}$
The total distance covered by the particle is $\text{725 m}$ .
