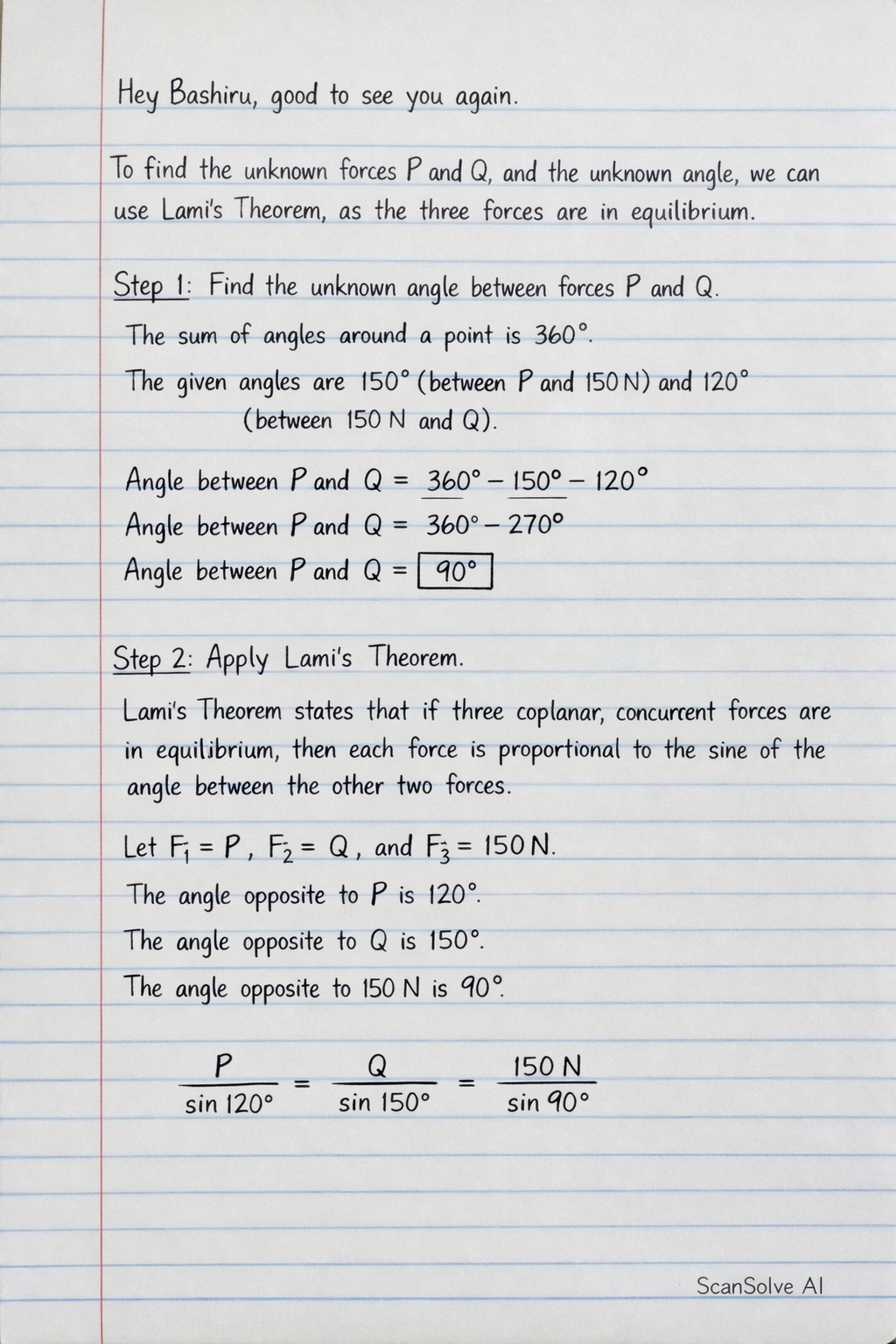

To find the unknown forces P and Q, and the unknown angle, we can use Lami's Theorem, as the three forces are in equilibrium. Step 1: Find the unknown angle between forces P and Q. The sum of angles around a point is 360^. The given angles are 150^ (between P and 150 N) and 120^ (between 150 N and Q). Angle between P and Q = 360^ - 150^ - 120^ Angle between P and Q = 360^ - 270^ Angle between P and Q = 90^ Step 2: Apply Lami's Theorem. Lami's Theorem states that if three coplanar, concurrent forces are in equilibrium, then each force is proportional to the sine of the angle between the other two forces. Let F_1 = P, F_2 = Q, and F_3 = 150\, N. The angle opposite to P is 120^. The angle opposite to Q is 150^. The angle opposite to 150 N is 90^. (P)/( 120^) = (Q)/( 150^) = 150\, N 90^ Step 3: Calculate force P. Using Lami's Theorem for P: (P)/( 120^) = (150)/( 90^) We know that 120^ = (180^ - 60^) = 60^ = sqrt(3)2 and 90^ = 1. P = 150 × ( 120^)/( 90^) P = 150 × sqrt(3)21 P = 75sqrt(3)\, N P ≈ 75 × 1.732 P ≈ 129.9\, N Step 4: Calculate force Q. Using Lami's Theorem for Q: (Q)/( 150^) = (150)/( 90^) We know that 150^ = (180^ - 30^) = 30^ = (1)/(2) and 90^ = 1. Q = 150 × ( 150^)/( 90^) Q = 150 × (1)/(2)1 Q = 75\, N The unknown forces are P ≈ 129.9 N and Q = 75 N. The unknown angle between P and Q is 90°. Send me the next one 📸
