Here's the analysis of the feedback amplifier shown in Fig. 3a:

Q.3a. Feedback Amplifier Analysis

  • i) Identify the type of feedback configuration.

    • The feedback signal IfI_f is a current that is subtracted from the input current IinI_{in} at the input node. This is shunt mixing (current mixing).
    • The feedback network β\beta samples the output current IoI_o. This is current sampling.
    • Therefore, the configuration is a current-shunt feedback amplifier.
  • ii) Derive the expression for the overall gain with feedback (AfA_f).

  1. Define the gains of the forward amplifier and feedback network.

    The forward gain of the amplifier A is given by:
    $$
    A = \frac{I_o}{I_s}
    $$
    The feedback factor of the network $\beta$ is given by:
    $$
    \beta = \frac{I_f}{I_o}
    $$

  2. Write the equation for the input signal current (IsI_s).

    From the diagram, the input current to the amplifier A is the difference between the source current $I_{in}$ and the feedback current $I_f$:
    $$
    I_s = I_{in} - I_f
    $$

  3. Substitute IfI_f in terms of IoI_o and β\beta.

    Using the feedback factor definition, $I_f = \beta I_o$. Substitute this into the $I_s$ equation:
    $$
    I_s = I_{in} - \beta I_o
    $$

  4. Substitute IsI_s in terms of IoI_o and AA.

    From the forward gain definition, $I_s = \frac{I_o}{A}$. Substitute this into the equation from Step 3:
    $$
    \frac{I_o}{A} = I_{in} - \beta I_o
    $$

  5. Rearrange the equation to solve for the overall gain (Af=IoIinA_f = \frac{I_o}{I_{in}}).

    Move the term with $I_o$ to one side:
    $$
    \frac{I_o}{A} + \beta I_o = I_{in}
    $$
    Factor out $I_o$:
    $$
    I_o \left( \frac{1}{A} + \beta \right) = I_{in}
    $$
    Combine the terms in the parenthesis:
    $$
    I_o \left( \frac{1 + A\beta}{A} \right) = I_{in}
    $$
    Finally, solve for the overall gain with feedback, $A_f$:
    $$
    A_f = \frac{I_o}{I_{in}} = \boxed{\frac{A}{1 + A\beta}}
    $$

Was this helpful?

Still stuck on this one?

Ask a follow-up, and the answer starts from this question.

Got a different question?Ask your own question

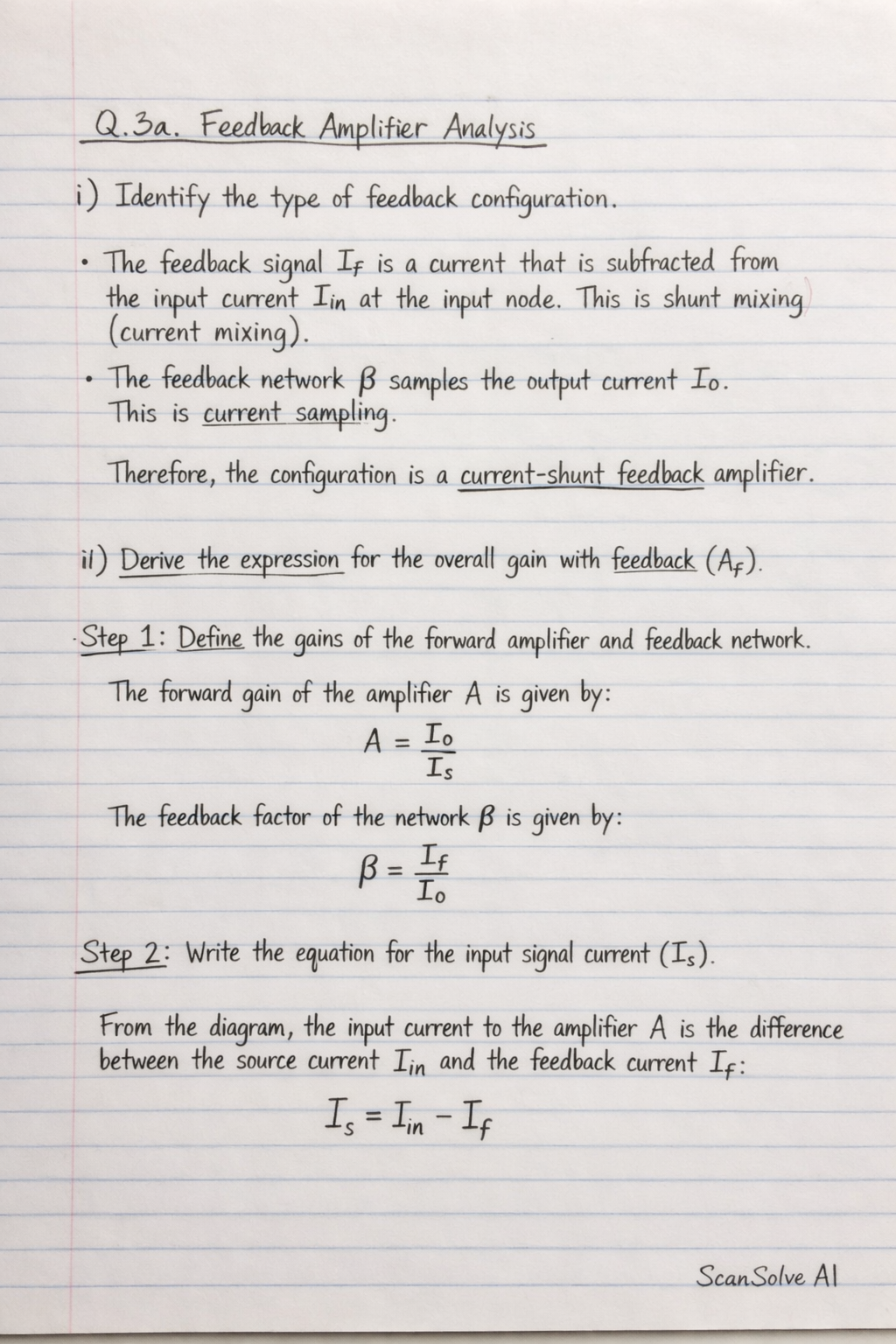

Handwritten step-by-step solution preview
