Explain the working of a clinical thermometer, including the choice of liquid, reasons for not using water, the purpose of the narrow bore, and how to calculate body temperature from observed length.

Physics

ScanSolve AI Answer

Answer

b

40∘C\text{}40^\circ\text{C}

Step-by-step solution

4 steps

Here's the breakdown of "Item two":

Part a(i)

The device the doctor used is a thermometer, specifically a *clinical thermometer

Part a(ii)

The liquids that can be used to make a thermometer are mercury and *alcohol

Part a(iii)

Explanation to the mother

  • Why water is not used to make the device? Water is not suitable because it has a high specific heat capacity (meaning it takes a lot of heat to change its temperature), it expands anomalously (it contracts from 0∘C0^\circ\text{C} to 4∘C4^\circ\text{C} before expanding), it wets glass, and its freezing point (0∘C0^\circ\text{C}) and boiling point (100∘C100^\circ\text{C}) limit its useful temperature range for many applications, including body temperature measurement.
  • Why device had narrow bore? A narrow bore (capillary tube) makes the thermometer more sensitive. A small change in the liquid's volume due to temperature change causes a significant and easily observable change in the length of the liquid column, allowing for precise readings.

Part b

40∘C\text{}40^\circ\text{C}

To find the child's body temperature, we use the principle of linear expansion for a thermometer.

  1. Identify the known values.

    The length of the liquid column from the lower fixed point is 6.6 cm6.6\,\text{cm}.
    The total length between the lower fixed point (0∘C0^\circ\text{C}) and the upper fixed point (100∘C100^\circ\text{C}) is 16.5 cm16.5\,\text{cm}.

  2. Use the formula for temperature on a linear scale.

    The temperature θ\theta can be calculated using the formula:

    θ=Length of liquid column from lower fixed pointLength between upper and lower fixed points×(Upper fixed point−Lower fixed point)+Lower fixed point\theta = \frac{\text{Length of liquid column from lower fixed point}}{\text{Length between upper and lower fixed points}} \times (\text{Upper fixed point} - \text{Lower fixed point}) + \text{Lower fixed point}

    For the Celsius scale, the lower fixed point is 0∘C0^\circ\text{C} and the upper fixed point is 100∘C100^\circ\text{C}.

  3. Substitute the values into the formula.

    θ=6.6 cm16.5 cm×(100∘C−0∘C)+0∘C\theta = \frac{6.6\,\text{cm}}{16.5\,\text{cm}} \times (100^\circ\text{C} - 0^\circ\text{C}) + 0^\circ\text{C}

  4. Calculate the temperature.

    θ=6.616.5×100∘C\theta = \frac{6.6}{16.5} \times 100^\circ\text{C} θ=0.4×100∘C\theta = 0.4 \times 100^\circ\text{C} θ=40∘C\theta = 40^\circ\text{C}

    The child's body temperature is 40∘C\boxed{\text{}40^\circ\text{C}}.

Was this helpful?

Try one yourself

A new problem that tests the same skill.

Still stuck on this one?

Ask a follow-up, and the answer starts from this question.

Got a different question?Ask your own question

More Physics Questions

QExplain the working principles of a clinical thermometer and a hydrometer.QDescribe how instrument A is used, and briefly describe how a clinical thermometer and a hydrometer…QDescribe the range, sensitivity, and key features of a clinical thermometer compared to a laboratory…QExplain the differences between mass and weight, list instruments to measure temperature, and state…QCalculate the temperature of a hot liquid using an uncalibrated thermometer given the lengths of the…
See all Physics questions →
Got a syllabus? Photograph it and I'll tell you what's due and what's worth the most.

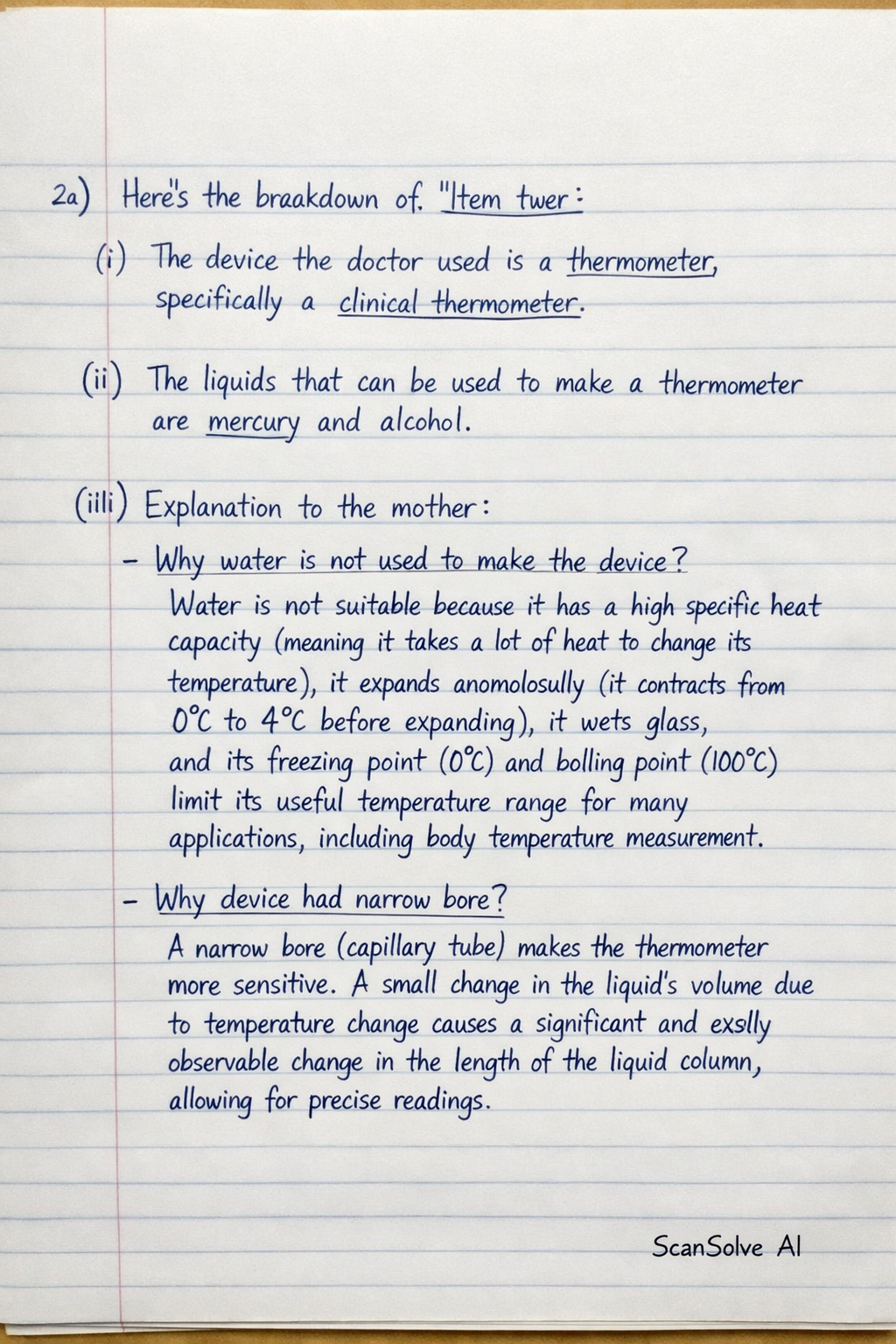

Handwritten step-by-step solution preview
