Calculate the temperature of a hot liquid using an uncalibrated thermometer given the lengths of the mercury thread at 0°C, 100°C, and in the liquid.

Physics

ScanSolve AI Answer

This answer stops before the end.

It was cut off when it was first written. Ask ScanSolve this question again for the full working.

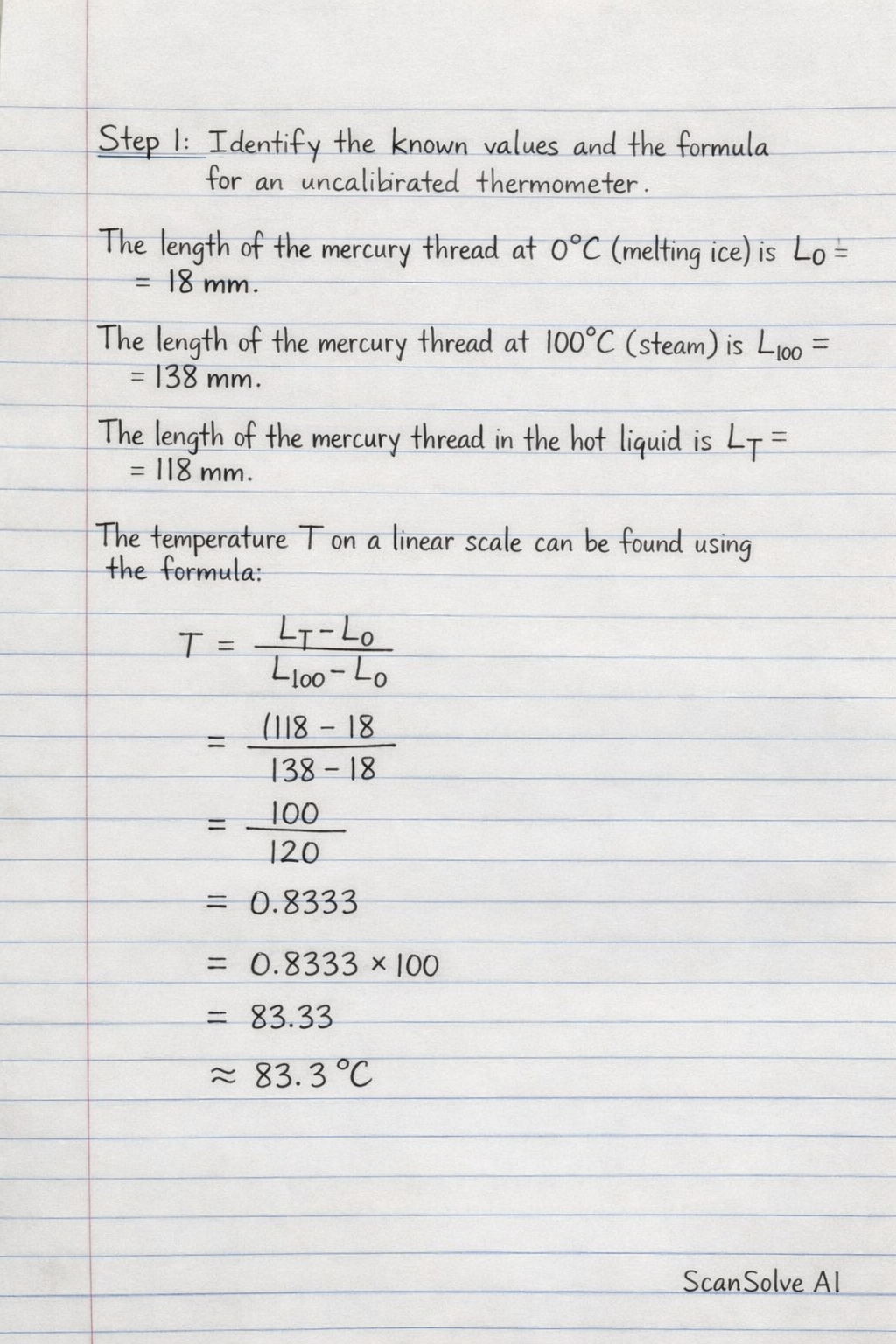

Step 1: Identify the known values and the formula for an uncalibrated thermometer.
The length of the mercury thread at 0∘C0^\circ\text{C} (melting ice) is L0=18 mmL_0 = 18 \text{ mm}.
The length of the mercury thread at 100∘C100^\circ\text{C} (steam) is L100=138 mmL_{100} = 138 \text{ mm}.
The length of the mercury thread in the hot liquid is LT=118 mmL_T = 118 \text{ mm}.

The temperature TT on a linear scale can be found using the formula:
