Provide the specifications for pipe threading, including quantities, measurements, sizes, and necessary tools and steps.
Business/Management
ScanSolve AI Answer

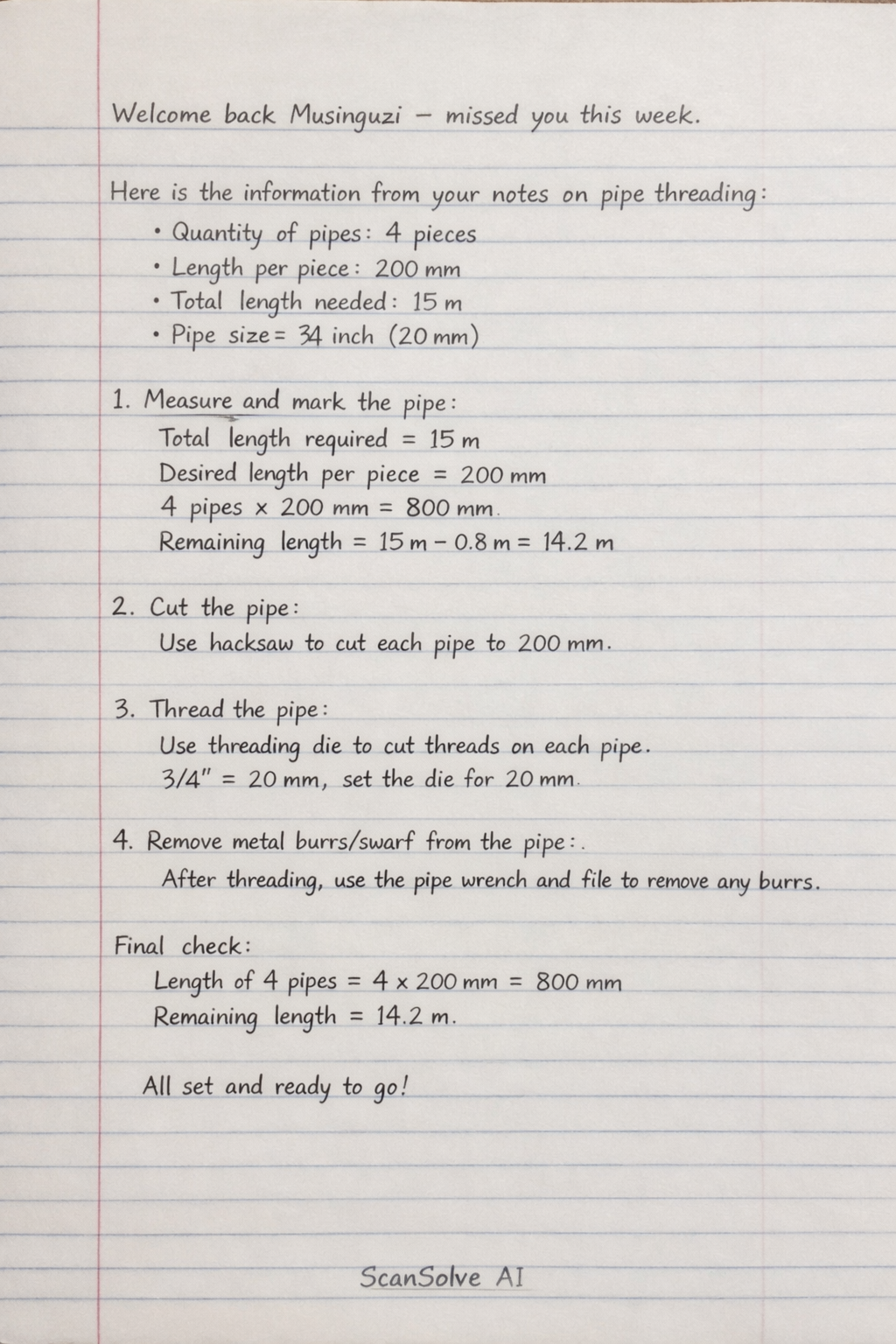

Here is the information from your notes on pipe threading:
-
GI pipe threading specifications:
- Quantity: 4 pieces
- Length per piece: 200 mm
- Total length (from diagram): 15 m
- Pipe size: inch or 20 mm
-
Tools required:
- Hacksaw
- Tape measure
- Pipe wrench
- Threading die
-
Steps for pipe threading:
- Measure and mark the pipe.
- Cut the pipe.
- Thread the pipe.
- Remove metal burrs/swarf from the pipe.
