A member consists of three sections. The first part is a pipe with an outside diameter of 60 mm and is 0.6 m long. The second section is a solid bar with a length of 200 mm and a diameter of 80 mm. The third section is a 90 mm square bar with a length of 0.5 m. All these sections are of the same material and E = 200 GPa. A tensile load of 180 kN is applied in the member and causes a total strain of 7,628 x 10^-4. Calculate the inside diameter of the pipe, the total change in length, and the total strain energy in the member.

Physics
A member consists of three sections. The first part is a pipe with an outside diameter of 60 mm and is 0.6 m long. The second section is a solid bar with a length of 200 mm and a diameter of 80 mm. The third section is a 90 mm square bar with a length of 0.5 m. All these sections are of the same material and E = 200 GPa. A tensile load of 180 kN is applied in the member and causes a total strain of 7,628 x 10^-4. Calculate the inside diameter of the pipe, the total change in length, and the total strain energy in the member.

ScanSolve AI Answer

Question 1

Given: Tensile load P=30kN=30×103 NP = 30 kN = 30 \times 10^3 \text{ N} Modulus of Elasticity E=210GPa=210×109 PaE = 210 GPa = 210 \times 10^9 \text{ Pa}

Section 1 (larger diameter): Diameter D=50mm=0.050 mD = 50 mm = 0.050 \text{ m} Length L1=60mm=0.060 mL_1 = 60 mm = 0.060 \text{ m} Area $A_1 = \frac{\pi D^2}{4} = \frac{\pi (0.

Was this helpful?

Still stuck on this one?

Ask a follow-up, and the answer starts from this question.

Got a different question?Ask your own question

More Physics Questions

QIn a tensile test on a round bar with a diameter of 18 mm, a load of 55 kN caused an extension of 0,…QA steel tube, 25 mm outside diameter and 12mm inside diameter, carries an axial tensile load of 40 k…QA tensile force of 25 kN is applied to a rectangular bar 12 mm thick and 22 mm wide. The original le…QA hollow steel tube with an inside diameter of 100 mm must carry a load of 380 kN. Calculate the out…QCalculate the following: 6.1.1 The stress, 6.1.2 The final length of the bar. 6.2.1 The maximum tens…
See all Physics questions →
Got a syllabus? Photograph it and I'll tell you what's due and what's worth the most.

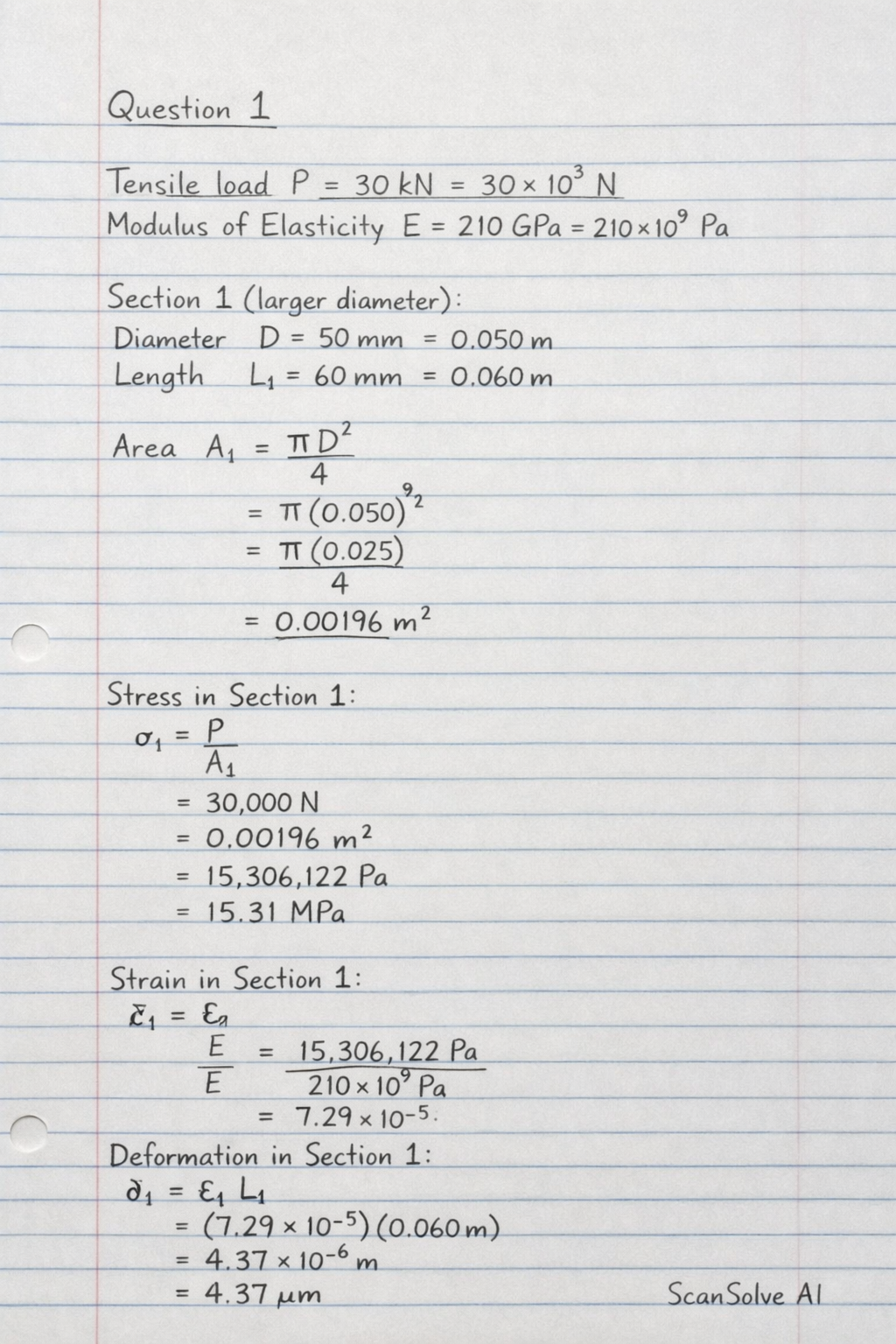

Handwritten step-by-step solution preview
