We read your photo as:

'a' moles of ethanoic acid and 'b' moles of ethanol were reacted together at 50°C until equilibrium was established. At equilibrium, x mol of the ester were found to be present. Write an expression for the equilibrium constant, Kc, for the reaction in terms of a, b and x.

Chemistry

ScanSolve AI Answer

Answer

Kc=x2(a−x)(b−x)K_c = \frac{x^2}{(a-x)(b-x)}

Step-by-step solution

3 steps
  1. Write the balanced chemical equation and set up an ICE (Initial, Change, Equilibrium) table for moles.

    The reaction is between ethanoic acid and ethanol to form ethyl ethanoate (ester) and water.

    CH3COOH(l)+CH3CH2OH(l)⇌CH3COOCH2CH3(l)+H2O(l)\text{CH}_3\text{COOH(l)} + \text{CH}_3\text{CH}_2\text{OH(l)} \rightleftharpoons \text{CH}_3\text{COOCH}_2\text{CH}_3\text{(l)} + \text{H}_2\text{O(l)}

    Initial moles: Ethanoic acid = aa mol, Ethanol = bb mol, Ester = 0 mol, Water = 0 mol.
    At equilibrium, xx mol of the ester are present. According to the stoichiometry (1:1:1:1), if xx moles of ester are formed, then xx moles of water are also formed, and xx moles of ethanoic acid and xx moles of ethanol must have reacted.

    SpeciesInitial (mol)Change (mol)Equilibrium (mol)
    CH3COOH\text{CH}_3\text{COOH}aa−x-xa−xa - x
    CH3CH2OH\text{CH}_3\text{CH}_2\text{OH}bb−x-xb−xb - x
    CH3COOCH2CH3\text{CH}_3\text{COOCH}_2\text{CH}_30+x+xxx
    H2O\text{H}_2\text{O}0+x+xxx
  2. Write the equilibrium constant expression in terms of concentrations.

    Let the volume of the reaction vessel be V dm3V \text{ dm}^3. The equilibrium concentration of each species is its equilibrium moles divided by the volume VV.

    [CH3COOH]=a−xV[\text{CH}_3\text{COOH}] = \frac{a-x}{V} [CH3CH2OH]=b−xV[\text{CH}_3\text{CH}_2\text{OH}] = \frac{b-x}{V} [CH3COOCH2CH3]=xV[\text{CH}_3\text{COOCH}_2\text{CH}_3] = \frac{x}{V} [H2O]=xV[\text{H}_2\text{O}] = \frac{x}{V}

    The equilibrium constant KcK_c is given by:

    Kc=[CH3COOCH2CH3][H2O][CH3COOH][CH3CH2OH]K_c = \frac{[\text{CH}_3\text{COOCH}_2\text{CH}_3][\text{H}_2\text{O}]}{[\text{CH}_3\text{COOH}][\text{CH}_3\text{CH}_2\text{OH}]}
  3. Substitute the equilibrium concentrations into the KcK_c expression.

    Kc=(xV)(xV)(a−xV)(b−xV)K_c = \frac{\left(\frac{x}{V}\right)\left(\frac{x}{V}\right)}{\left(\frac{a-x}{V}\right)\left(\frac{b-x}{V}\right)} Kc=x2V2(a−x)(b−x)V2K_c = \frac{\frac{x^2}{V^2}}{\frac{(a-x)(b-x)}{V^2}}

    The V2V^2 terms in the numerator and denominator cancel out.

    Kc=x2(a−x)(b−x)K_c = \frac{x^2}{(a-x)(b-x)}

    The expression for the equilibrium constant KcK_c is Kc=x2(a−x)(b−x)\boxed{K_c = \frac{x^2}{(a-x)(b-x)}}.

Was this helpful?

Try one yourself

A new problem that tests the same skill.

Still stuck on this one?

Ask a follow-up, and the answer starts from this question.

Got a different question?Ask your own question

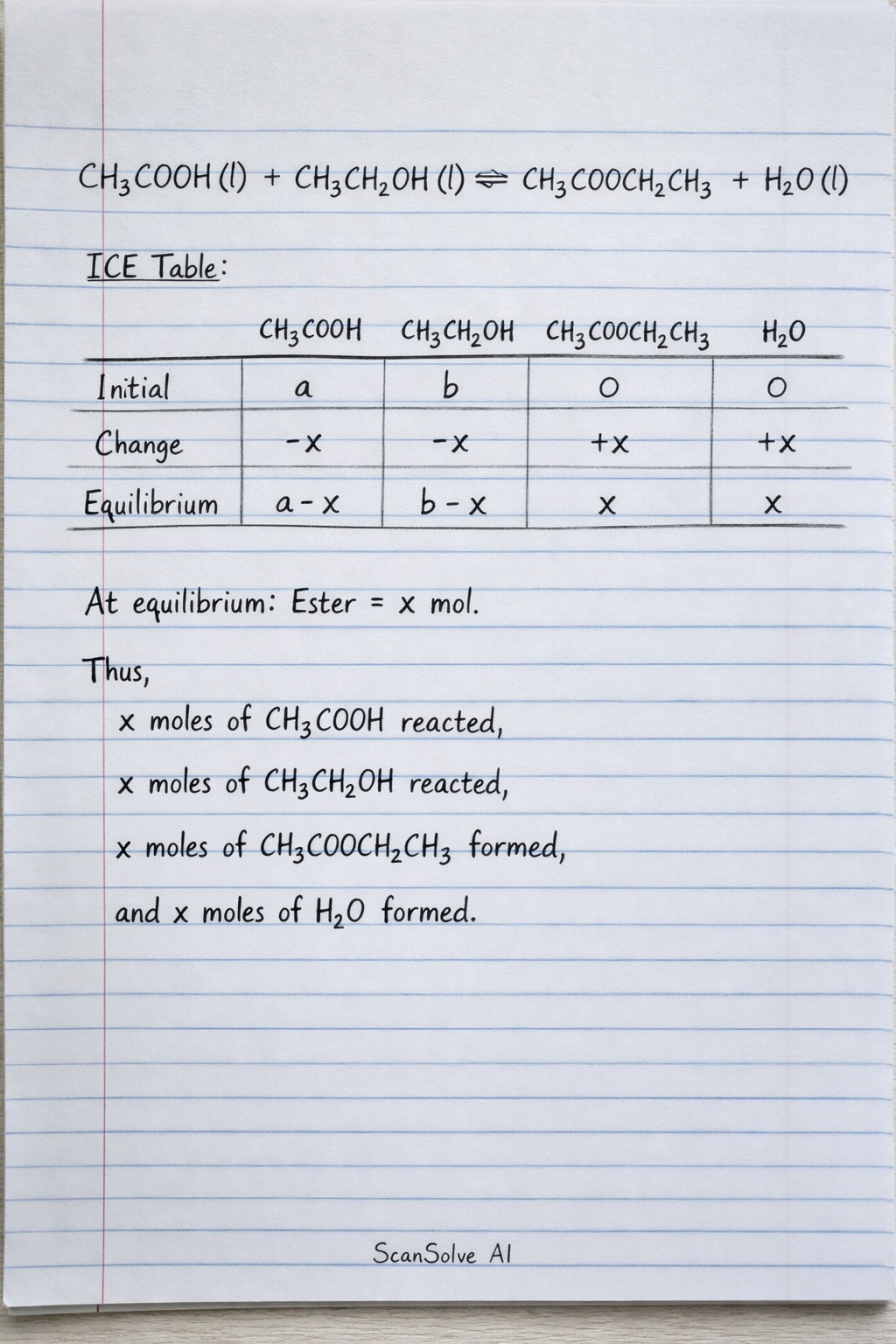

Handwritten step-by-step solution preview
