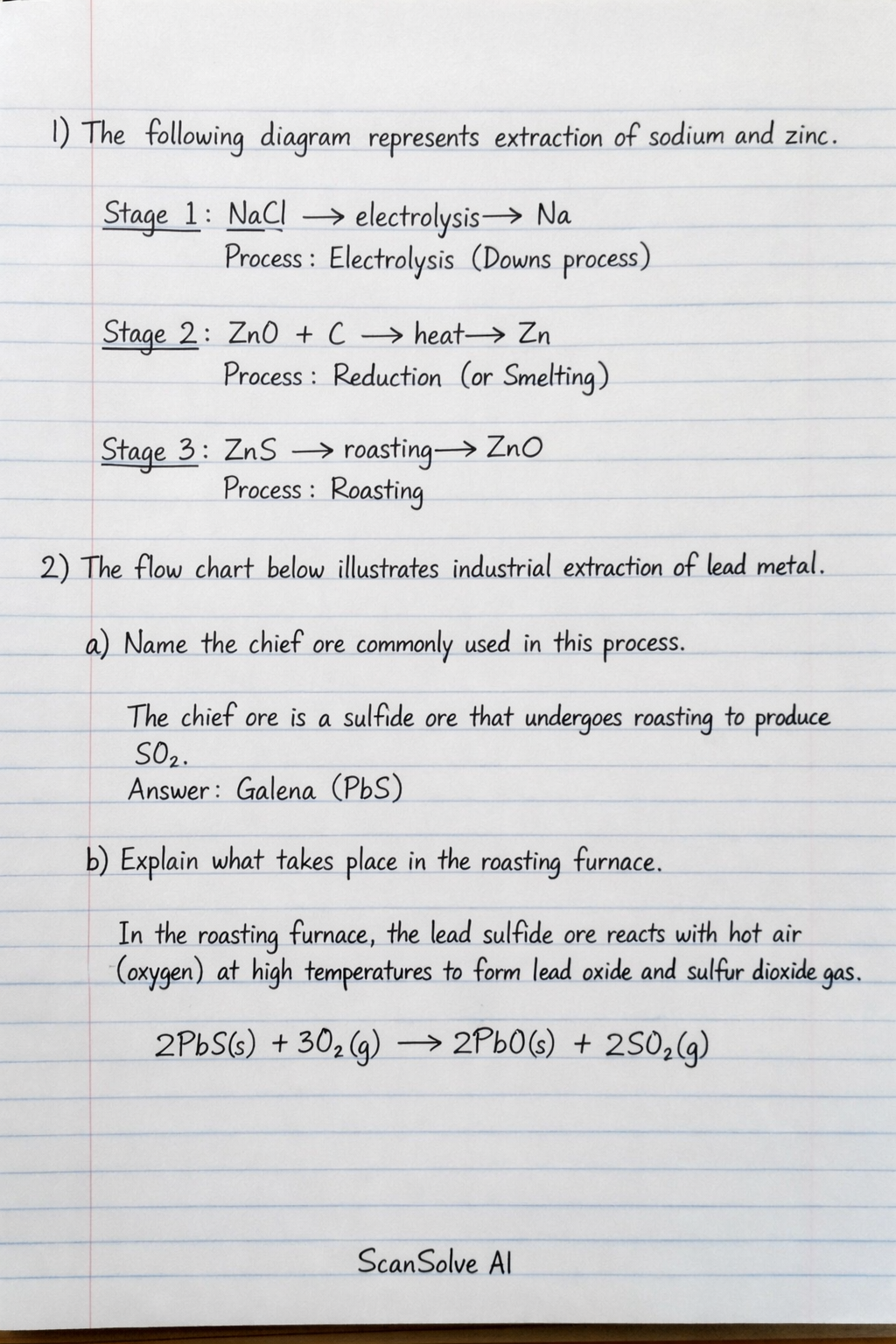

The following diagram represents extraction of sodium and zinc.

Stage 1: $\text{NaCl} \xrightarrow{\text{electrolysis}}$ $NaCl electrolysis$ Na
- Process: Electrolysis (specifically, the Downs process for sodium extraction)
Stage 2: $\text{ZnO} + \text{C} \xrightarrow{\text{heat}}$ $ZnO + C heat$ Zn
- Process: Reduction (or Smelting)
Stage 3: $\text{ZnS} \xrightarrow{\text{roasting}}$ $ZnS roasting$ $\text{ZnO}$ $ZnO$
- Process: Roasting

The flow chart below illustrates industrial extraction of lead metal.

a) Name the chief ore commonly used in this process.
The chief ore is a sulfide ore that undergoes roasting to produce $\text{SO}_2$ . For lead, this is galena.
Answer: Galena ( $\text{PbS}$ )

b) Explain what takes place in the roasting furnace.
In the roasting furnace, the lead sulfide ore reacts with hot air (oxygen) at high temperatures to form lead oxide and sulfur dioxide gas.

2\text{PbS(s)} + 3\text{O}_2\text{(g)} \xrightarrow{\text{heat}} 2\text{PbO(s)} + 2\text{SO}_2\text{(g)}

c) State uses of lead metal.

Car batteries (lead-acid batteries)
Radiation shielding (e.g., in X-ray rooms)
Alloys (e.g., solder, pewter)

The set up below was used to investigate electrolysis of a molten compound.

i) Complete the circuit by drawing the cell in the gap left in the diagram.
The circuit requires a DC power supply (battery) connected to the electrodes. The negative terminal of the battery connects to the cathode, and the positive terminal connects to the anode.

      +-------[ Battery ]-------+
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
      |                       |
