Draw the structural formula for the following compounds: a) 2-methyl pent-2-ene b) 1-chloro-2-methyl-1-ene c) 1-bromo-3-ethylpentene

Chemistry

ScanSolve AI Answer

Answers

3 parts
a

CH3−C(CH3)=CH−CH2−CH3\text{CH}_3-\text{C}(\text{CH}_3)=\text{CH}-\text{CH}_2-\text{CH}_3

b

Cl−CH=C(CH3)−CH3\text{Cl}-\text{CH}=\text{C}(\text{CH}_3)-\text{CH}_3

c

Br−CH=CH−CH(CH2CH3)−CH2−CH3\text{Br}-\text{CH}=\text{CH}-\text{CH}(\text{CH}_2\text{CH}_3)-\text{CH}_2-\text{CH}_3

Step-by-step solution

9 steps

let's tackle these structural formulas.

3) Draw Structural formula for the following compound

Part a· 3 steps

2-methyl pent-2-ene

  1. Identify the parent chain and the position of the double bond.

    "Pent-2-ene" indicates a 5-carbon chain with a double bond between the second and third carbons.

  2. Identify the substituents and their positions.

    "2-methyl" indicates a methyl group (CH3\text{CH}_3) attached to the second carbon.

  3. Draw the carbon skeleton, add the double bond and substituents, then fill in hydrogen atoms to satisfy carbon's valency of 4.

    CH3−C(CH3)=CH−CH2−CH3\boxed{\text{CH}_3-\text{C}(\text{CH}_3)=\text{CH}-\text{CH}_2-\text{CH}_3}

Part b

Cl−CH=C(CH3)−CH3\text{Cl}-\text{CH}=\text{C}(\text{CH}_3)-\text{CH}_3

1-chloro-2-methyl-1-ene

Assumption: The parent chain is propene (3 carbons) as it's the shortest chain that can accommodate a methyl group at position 2 with a double bond at position 1.

  1. Identify the parent chain and the position of the double bond.

    "Prop-1-ene" indicates a 3-carbon chain with a double bond between the first and second carbons.

  2. Identify the substituents and their positions.

    "1-chloro" indicates a chlorine atom on the first carbon. "2-methyl" indicates a methyl group (CH3\text{CH}_3) on the second carbon.

  3. Draw the carbon skeleton, add the double bond and substituents, then fill in hydrogen atoms.

    Cl−CH=C(CH3)−CH3\boxed{\text{Cl}-\text{CH}=\text{C}(\text{CH}_3)-\text{CH}_3}

Part c

Br−CH=CH−CH(CH2CH3)−CH2−CH3\text{Br}-\text{CH}=\text{CH}-\text{CH}(\text{CH}_2\text{CH}_3)-\text{CH}_2-\text{CH}_3

1-bromo-3-ethylpentene

Assumption: The double bond is at position 1, making it pent-1-ene, as the position is not specified.

  1. Identify the parent chain and the position of the double bond.

    "Pent-1-ene" indicates a 5-carbon chain with a double bond between the first and second carbons.

  2. Identify the substituents and their positions.

    "1-bromo" indicates a bromine atom on the first carbon. "3-ethyl" indicates an ethyl group (CH2CH3\text{CH}_2\text{CH}_3) on the third carbon.

  3. Draw the carbon skeleton, add the double bond and substituents, then fill in hydrogen atoms.

    Br−CH=CH−CH(CH2CH3)−CH2−CH3\boxed{\text{Br}-\text{CH}=\text{CH}-\text{CH}(\text{CH}_2\text{CH}_3)-\text{CH}_2-\text{CH}_3}
Was this helpful?

Try one yourself

A new problem that tests the same skill.

Still stuck on this one?

Ask a follow-up, and the answer starts from this question.

Got a different question?Ask your own question

More Chemistry Questions

QDraw the structural formula for each of the following compounds: a) 2-methylheptane b) 3-ethylhexaneQDraw the structure of the following: (i) 2-Bromo - 4 - chloro - 3, 3 - dimethylhex - 1 - ene (ii)…QDraw the expanded structural formula for each of the following organic compounds: a) Propene, b)…QDraw the condensed structure of the following compounds: 1. 2-bromo-3-chloro-4,4-dimethylpentanal…QDraw the skeletal structures for 1,1-dibromo-2,2-dichloro-3-ethyl-4,4-dimethylpentane and…
See all Chemistry questions →
Got a syllabus? Photograph it and I'll tell you what's due and what's worth the most.
Handwritten step-by-step solution preview

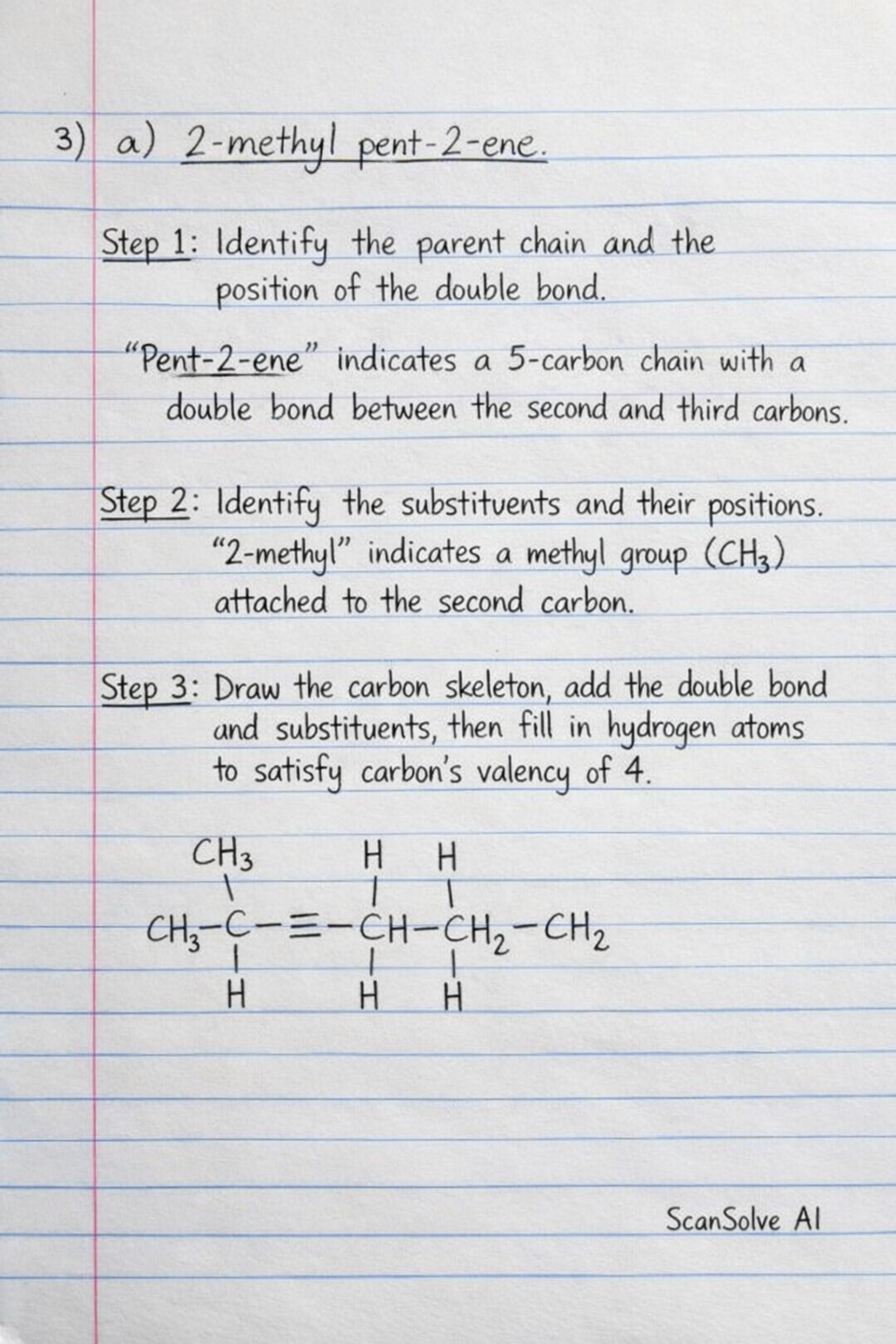

Handwritten Step-by-Step Solution
