This chemistry question involves key chemical concepts and calculations. The detailed solution below walks through each step, from identifying the reaction type to computing the final answer.
ScanSolve AI Answer

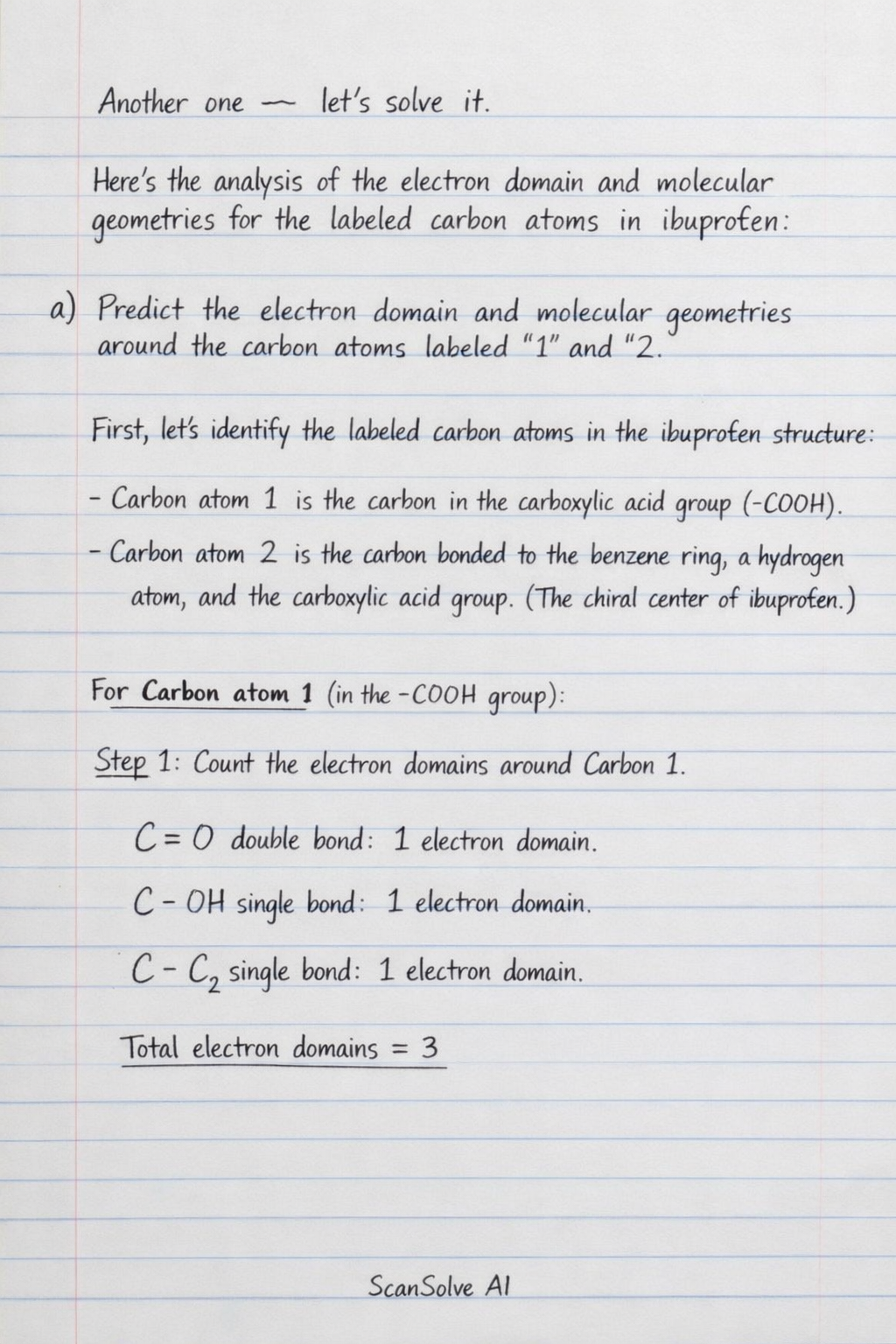

Here's the analysis of the electron domain and molecular geometries for the labeled carbon atoms in ibuprofen: a) Predict the electron domain and molecular geometries around the carbon atoms labeled '1' and '2'. First, let's identify the labeled carbon atoms in the ibuprofen structure: Carbon atom 1 is the carbon atom in the carboxylic acid group (-COOH). Carbon atom 2 is the carbon atom that is bonded to the benzene ring, a hydrogen atom, and the carboxylic acid group. This is the chiral center of ibuprofen. For Carbon atom 1 (in the -COOH group): Step 1: Count the electron domains around Carbon 1. Carbon 1 is double-bonded to one oxygen atom (C=O), single-bonded to another oxygen atom (C-OH), and single-bonded to Carbon 2 (C-C_2). • The C=O double bond counts as one electron domain. • The C-OH single bond counts as one electron domain. • The C-C_2 single bond counts as one electron domain. Total electron domains = 3. Step 2: Determine the electron domain geometry. With 3 electron domains and no lone pairs on the carbon atom, the electron domain geometry is trigonal planar. Step 3: Determine the molecular geometry. Since there are no lone pairs on the central carbon atom, the molecular geometry is the same as the electron domain geometry. Molecular geometry = trigonal planar. For Carbon atom 2 (the chiral center): Step 1: Count the electron domains around Carbon 2. Carbon 2 is single-bonded to: • A hydrogen atom (C-H) • A methyl group carbon (C-CH_3) • A benzene ring carbon (C-C_phenyl) • Carbon 1 (the carboxylic acid carbon) (C-C_1) Total electron domains = 4. Step 2: Determine the electron domain geometry. With 4 electron domains and no lone pairs on the carbon atom, the electron domain geometry is tetrahedral. Step 3: Determine the molecular geometry. Since there are no lone pairs on the central carbon atom, the molecular geometry is the same as the electron domain geometry. Molecular geometry = tetrahedral. Summary: Carbon 1: Electron domain geometry: Trigonal planar Molecular geometry: Trigonal planar Carbon 2: Electron domain geometry: Tetrahedral Molecular geometry: Tetrahedral Drop the next question.
