Explain why silicon dioxide exist as a solid of high melting point whereas Carbon dioxide is a gas even though silicon and carbon belong to the same group.

Chemistry

ScanSolve AI Answer

Step-by-step solution

3 steps

Here's the solution to question (a)(iv):

a) (iv) Explain why silicon dioxide exists as a solid of high melting point whereas carbon dioxide is a gas even though silicon and carbon belong to the same group.

  1. Describe the structure of carbon dioxide.

    Carbon dioxide (CO2\text{CO}_2) is a simple molecular substance. It consists of discrete CO2\text{CO}_2 molecules held together by weak intermolecular forces (van der Waals forces).

  2. Describe the structure of silicon dioxide.

    Silicon dioxide (SiO2\text{SiO}_2) has a giant covalent network structure. Each silicon atom is covalently bonded to four oxygen atoms, and each oxygen atom is covalently bonded to two silicon atoms, forming a continuous three-dimensional network.

  3. Relate the structures to their physical properties.

    To melt CO2\text{CO}_2, only a small amount of energy is required to overcome the weak intermolecular forces, which is why it is a gas at room temperature. In contrast, to melt SiO2\text{SiO}_2, a large amount of energy is needed to break the strong covalent bonds throughout its giant network structure, resulting in a high melting point and solid state at room temperature.

    The difference in structure is due to carbon's ability to form stable double bonds with oxygen, leading to discrete CO2\text{CO}_2 molecules, while silicon prefers to form single bonds with oxygen, leading to an extended network.

Was this helpful?

Still stuck on this one?

Ask a follow-up, and the answer starts from this question.

Got a different question?Ask your own question

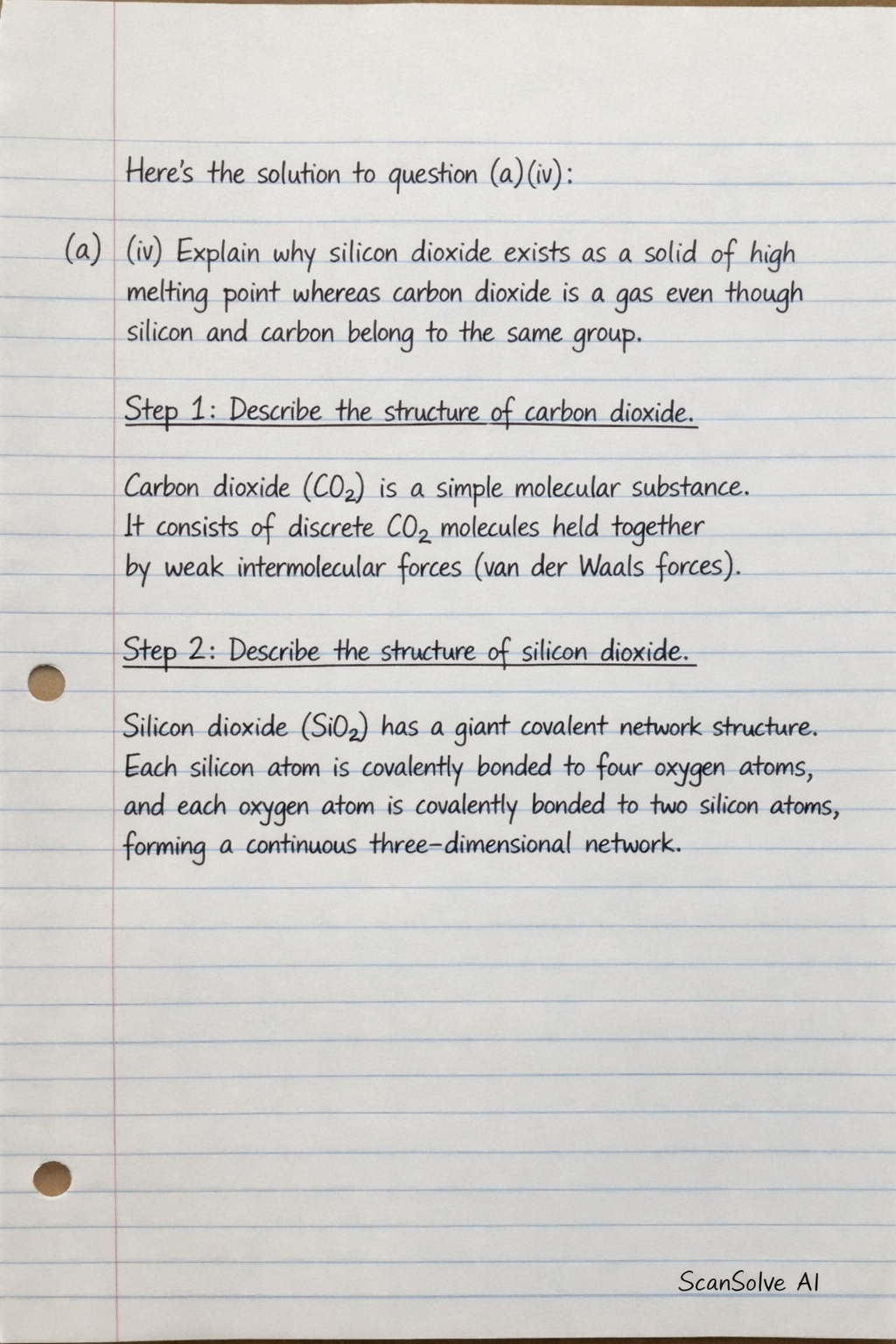

Handwritten step-by-step solution preview
