We read your photo as:

The given compound is 2-methylbutan-2-ol.

Chemistry

ScanSolve AI Answer

Step-by-step solution

2 steps

The given compound is 2-methylbutan-2-ol.

OH∣CH3−C−CH2−CH3∣CH3\begin{matrix} & & \text{OH} & \\ & & | & \\ \text{CH}_3 & - & \text{C} & - & \text{CH}_2 & - & \text{CH}_3 \\ & & | & \\ & & \text{CH}_3 \end{matrix}

Dehydration of an alcohol involves the removal of a hydroxyl (-OH) group from the alpha-carbon (the carbon bearing the -OH group) and a hydrogen atom from an adjacent beta-carbon. This reaction typically occurs in the presence of an acid catalyst (like H2SO4\text{H}_2\text{SO}_4 or H3PO4\text{H}_3\text{PO}_4) and heat, forming an alkene. For tertiary alcohols, the reaction proceeds via an E1 mechanism.

According to Zaitsev's rule, the major product of an elimination reaction is the most substituted alkene (the alkene with the most alkyl groups attached to the double-bonded carbons).

Let's identify the alpha-carbon and the beta-carbons in 2-methylbutan-2-ol:
The alpha-carbon is the carbon bonded to the -OH group.
The beta-carbons are the carbons directly bonded to the alpha-carbon.

OH∣CH3β1−Cα−CH2β2−CH3∣CH3β3\begin{matrix} & & \text{OH} & \\ & & | & \\ \text{CH}_3^{\beta_1} & - & \text{C}_{\alpha} & - & \text{CH}_2^{\beta_2} & - & \text{CH}_3 \\ & & | & \\ & & \text{CH}_3^{\beta_3} \end{matrix}

There are two types of beta-hydrogens that can be removed:

  1. Removal of H from CH3β1\text{CH}_3^{\beta_1} or CH3β3\text{CH}_3^{\beta_3} (both are equivalent methyl groups)

    If a hydrogen is removed from one of the methyl groups (CH3\text{CH}_3) and the -OH group is removed from the alpha-carbon, a double bond forms between Cα\text{C}_{\alpha} and the methyl carbon.
    The product formed is:

    CH3∣CH2=C−CH2−CH3\begin{matrix} & & & \\ & & \text{CH}_3 & \\ & & | & \\ \text{CH}_2 & = & \text{C} & - & \text{CH}_2 & - & \text{CH}_3 \end{matrix}

    This compound is 2-methylbut-1-ene.
    The double bond carbons are C1\text{C}_1 and C2\text{C}_2. C1\text{C}_1 has two hydrogens. C2\text{C}_2 has a methyl group and an ethyl group. This is a disubstituted alkene (two alkyl groups on the double bond carbons). This corresponds to option D.

  2. Removal of H from CH2β2\text{CH}_2^{\beta_2} (methylene group)

    If a hydrogen is removed from the methylene group (CH2\text{CH}_2) and the -OH group is removed from the alpha-carbon, a double bond forms between Cα\text{C}_{\alpha} and the methylene carbon.
    The product formed is:

    CH3∣CH3−C=CH−CH3\begin{matrix} & & & \\ & & \text{CH}_3 & \\ & & | & \\ \text{CH}_3 & - & \text{C} & = & \text{CH} & - & \text{CH}_3 \end{matrix}

    This compound is 2-methylbut-2-ene.
    The double bond carbons are $\text

Was this helpful?

Still stuck on this one?

Ask a follow-up, and the answer starts from this question.

Got a different question?Ask your own question

More Chemistry Questions

QWhat are the steps to determine the IUPAC name for 2-butanol?QWhat us the formula for butanolQName the following compounds: CH3CH(CH3)CH(OH)CH3 (ii) CH3CH(CH3)(OH)CH3 (iii) CH2(Br)CH2CH(OH)CH3…QCalculate the specific rotation of (R)−2-methylbutanol given the observed rotation, mass, volume…Q1.1. Compound B is 1-bromobutane. Reaction 1 converts Compound A to 1-bromobutane using Br2. Given…
See all Chemistry questions →
Got a syllabus? Photograph it and I'll tell you what's due and what's worth the most.

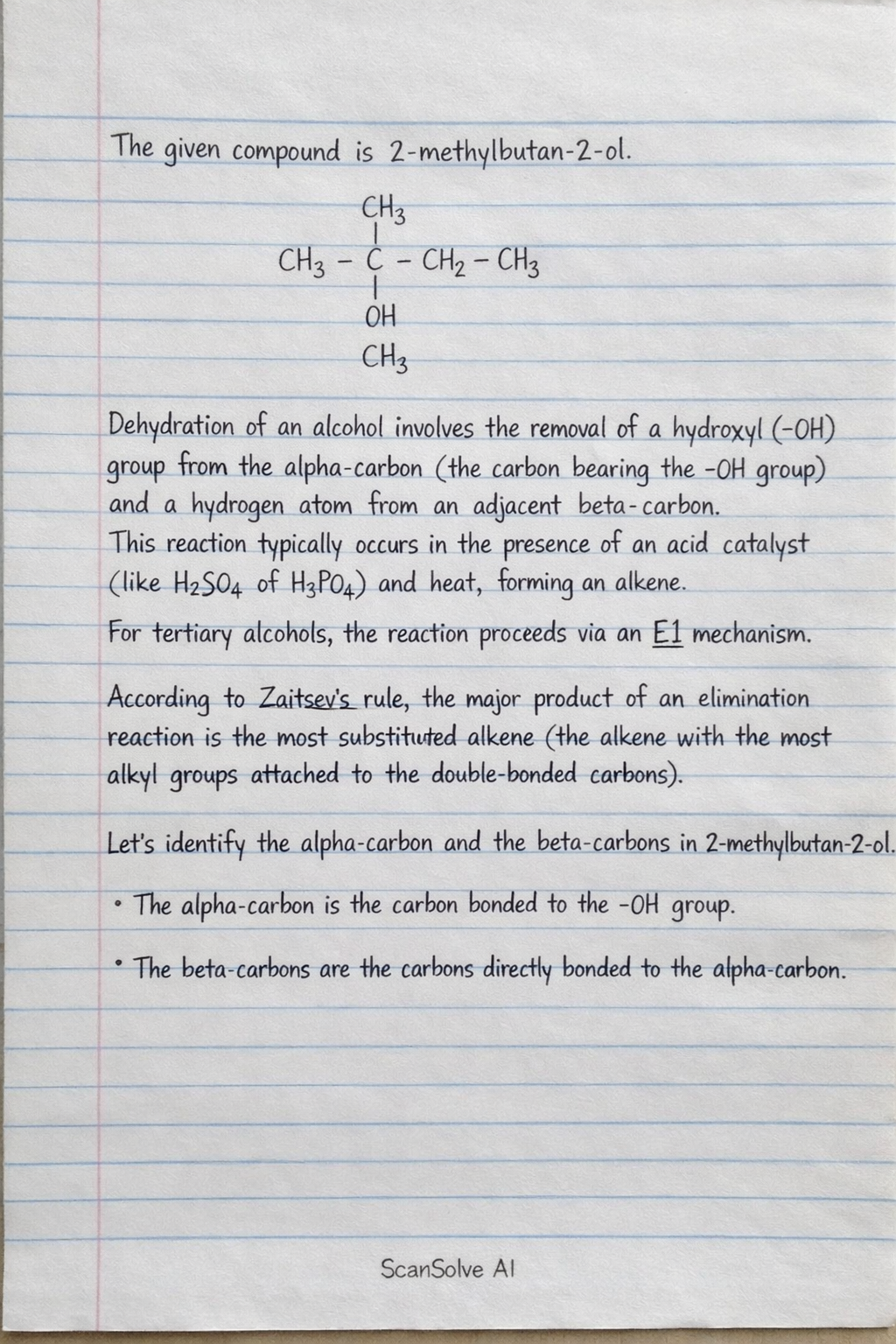

Handwritten step-by-step solution preview
