We read your photo as:

The question appears to have a slight error, as Trichlorofluoromethane is a synthetic compound and not obtained from air. Assuming the question intends to ask about how Nitrogen is obtained from air

Chemistry

ScanSolve AI Answer

The question appears to have a slight error, as Trichlorofluoromethane is a synthetic compound and not obtained from air. Assuming the question intends to ask about how Nitrogen is obtained from air on a large scale, the process is fractional distillation of liquid air.

Here's the description of the process:

a) Describe the process by which Nitrogen is obtained from air on a large scale:

  1. Filtration: Air is first filtered to remove dust particles.
  2. Cooling and Compression: The filtered air is then compressed and cooled to remove water vapor (which condenses) and carbon dioxide (which solidifies).
  3. Liquefaction: The remaining air, primarily nitrogen and oxygen, is further cooled to very low temperatures (around −200∘C-200^\circ\text{C}) until it liquefies. This is often achieved through repeated compression and expansion cycles.
  4. Fractional Distillation: The liquid air is then fed into a fractionating column. As the liquid air slowly warms up, the components separate based on their different boiling points. Nitrogen, with a boiling point of −196∘C-196^\circ\text{C}, boils off first and is collected as a gas at the top of the column. Oxygen (boiling point −183∘C-183^\circ\text{C}) and Argon (boiling point −186∘C-186^\circ\text{C}) are collected separately at different levels.
Was this helpful?

Still stuck on this one?

Ask a follow-up, and the answer starts from this question.

Got a different question?Ask your own question

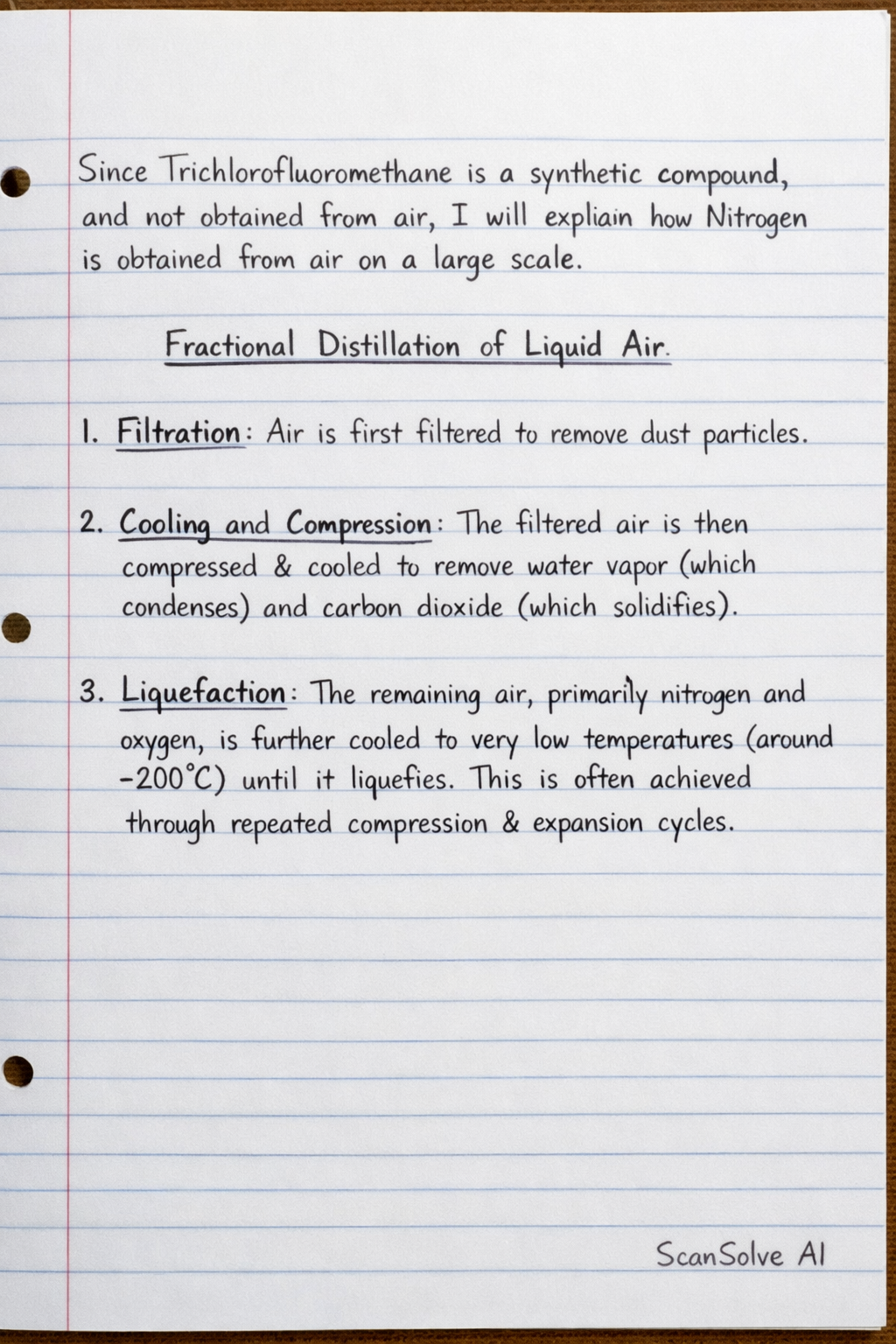

Handwritten step-by-step solution preview
