What is a triangular scale ruler and what is its purpose in technical drawing?

In technical drawing, a triangular scale ruler is a specialized tool used to draw and measure lengths at various scales without needing to perform calculations for each measurement. It typically has three faces, each with two different scales, totaling six common scales on one ruler.

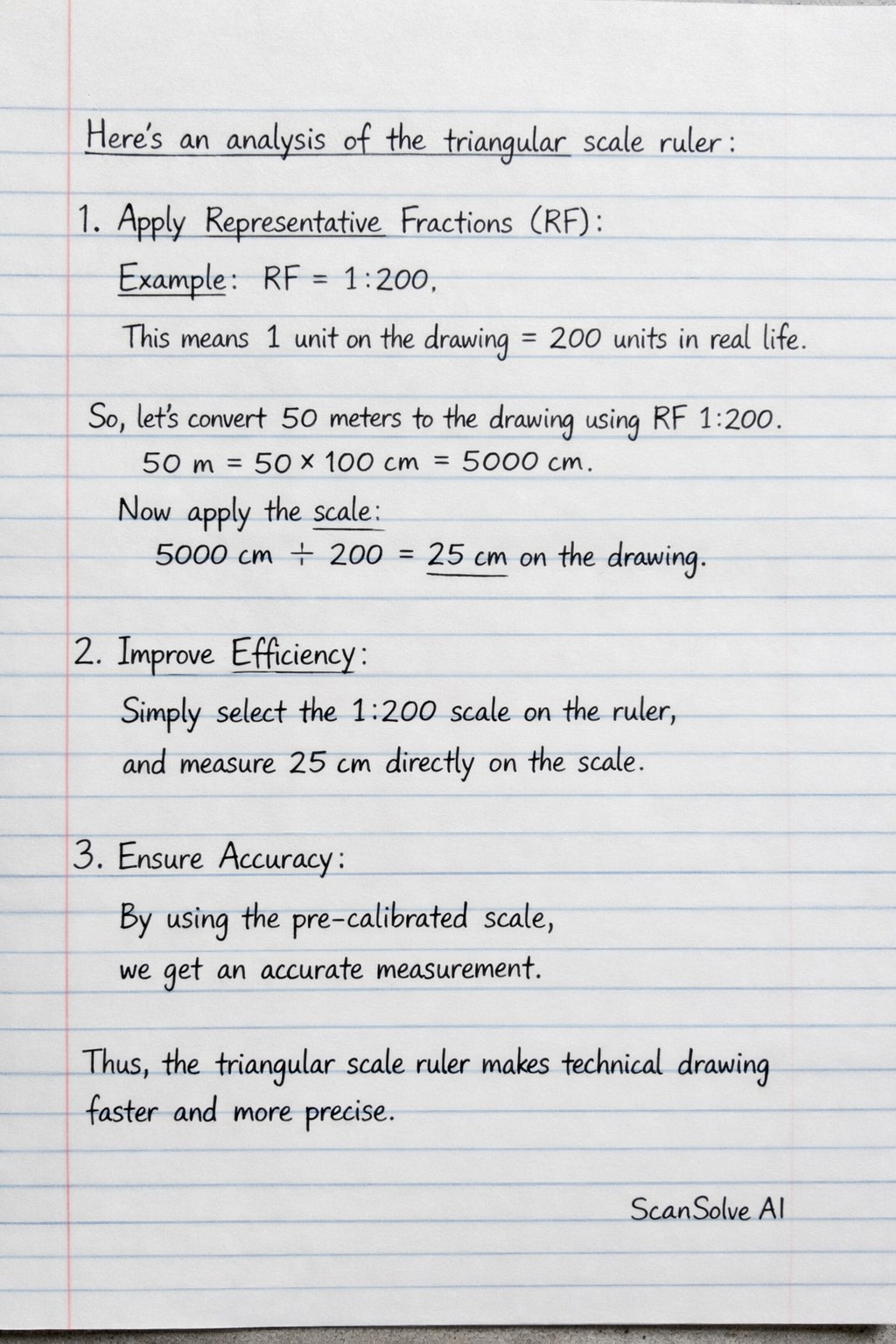

Its purpose is to:

• Apply Representative Fractions (RF): Each scale on the ruler corresponds to a specific RF (e.g., 1:100, 1:200, 1:500). This allows draftsmen to directly measure or draw objects at a reduced or enlarged scale from their actual dimensions.
• Improve Efficiency: Instead of manually converting actual dimensions to drawing dimensions using the RF, the user simply selects the appropriate scale on the ruler and measures directly.
• Ensure Accuracy: By using pre-calibrated scales, it helps maintain precision in drawings.

This type of ruler is essential for creating accurate technical drawings, especially when working with different scales on a single project.
