Give the Boolean equation

May 21, 2026Computer Science

ScanSolve AI Answer

May 21, 2026

Answer

Y = \overline{A+B}

The Boolean equation for a NOR gate with inputs A and B is:

$Y = \overline{A+B}$

Where:

$Y$ is the output.
$A$ and $B$ are the inputs.
$+$ represents the OR operation.
The overline ( $\overline{\phantom{A+B}}$ ) represents the NOT (negation) operation.

This equation means that the output $Y$ is HIGH (1) if and only if both $A$ and $B$ are LOW (0).

The final answer is $\boxed{Y = \overline{A+B}}$ .

That's 2 down. 3 left today — send the next one.

Was this helpful?

Need help with your own homework?

Get instant step-by-step solutions to any question. Free to start.

Ask Your Question

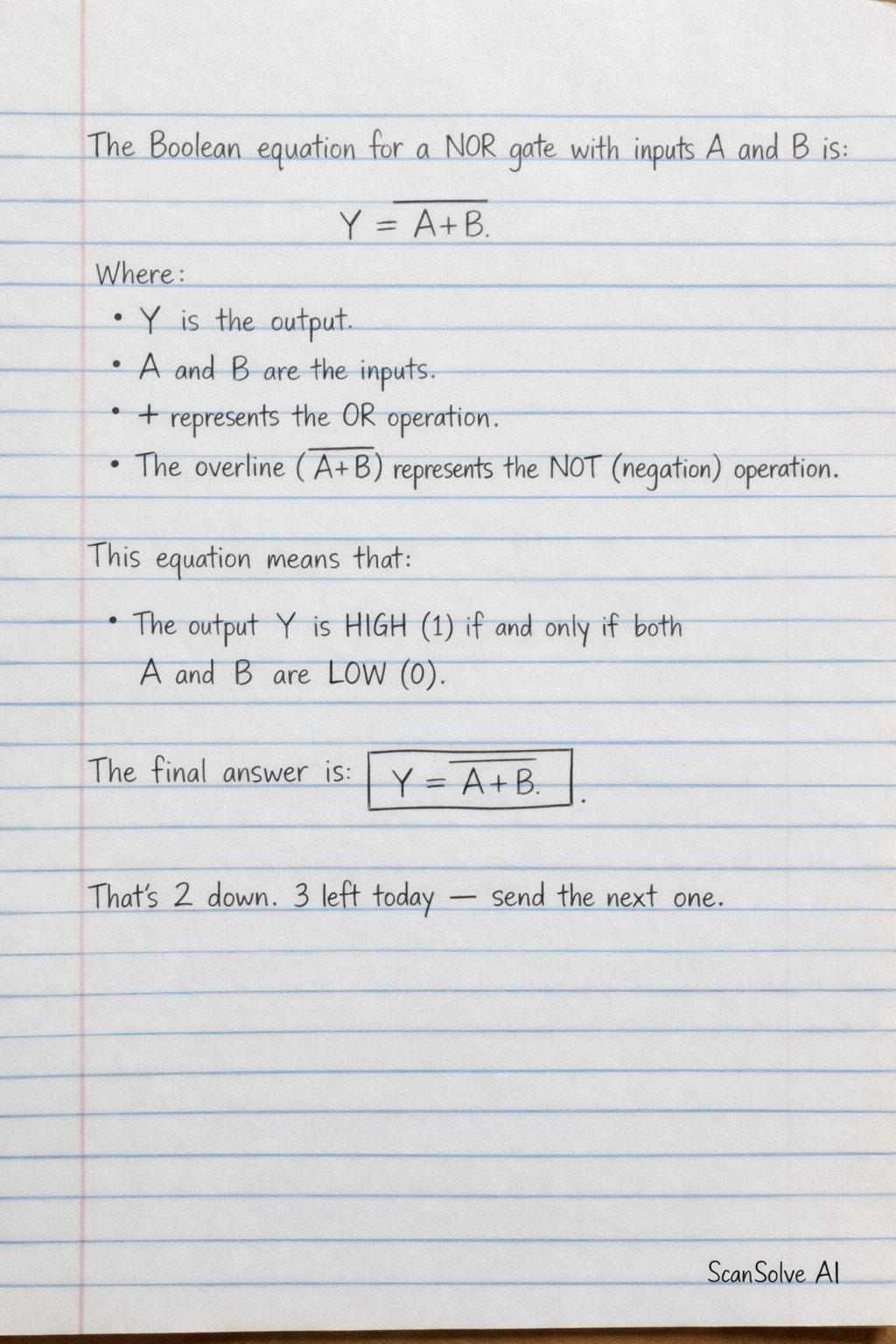

Handwritten Step-by-Step Solution
