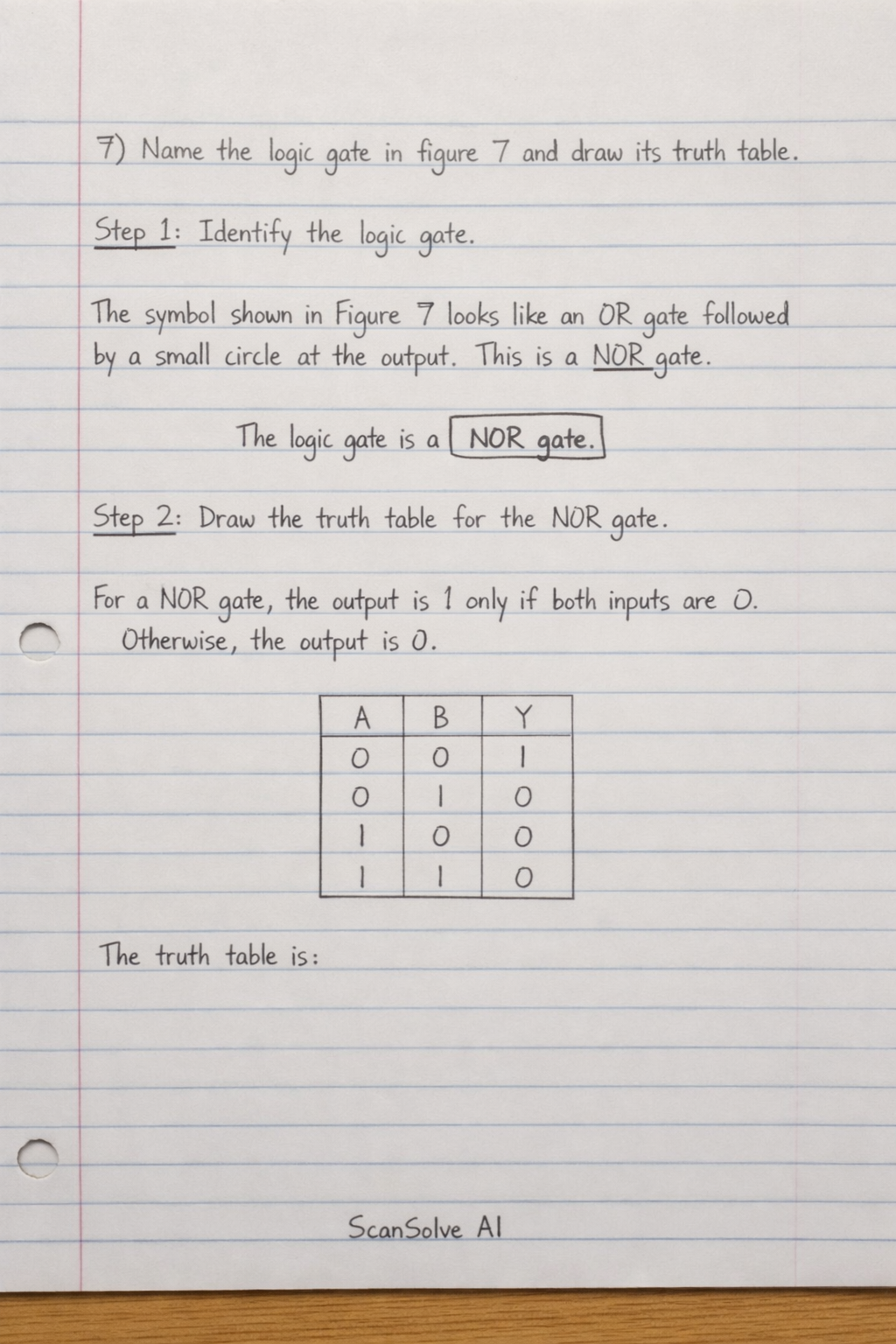

You're on a roll — here's the solution for question 7 from the image: 7) Name the logic gate in figure 7 and draw its truth table Step 1: Identify the logic gate. The symbol shown in Figure 7 has the shape of an OR gate followed by a small circle (inverter) at its output. This combination represents a NOR gate. The logic gate is a NOR gate. Step 2: Draw the truth table for a NOR gate with inputs A and B, and output Y. A NOR gate produces an output of 1 (TRUE) only if all its inputs are 0 (FALSE). Otherwise, the output is 0 (FALSE). | A | B | Y | |---|---|---| | 0 | 0 | 1 | | 0 | 1 | 0 | | 1 | 0 | 0 | | 1 | 1 | 0 | The truth table is: |c|c|c| A & B & Y \\ 0 & 0 & 1 \\ 0 & 1 & 0 \\ 1 & 0 & 0 \\ 1 & 1 & 0 \\ Drop the next question.
