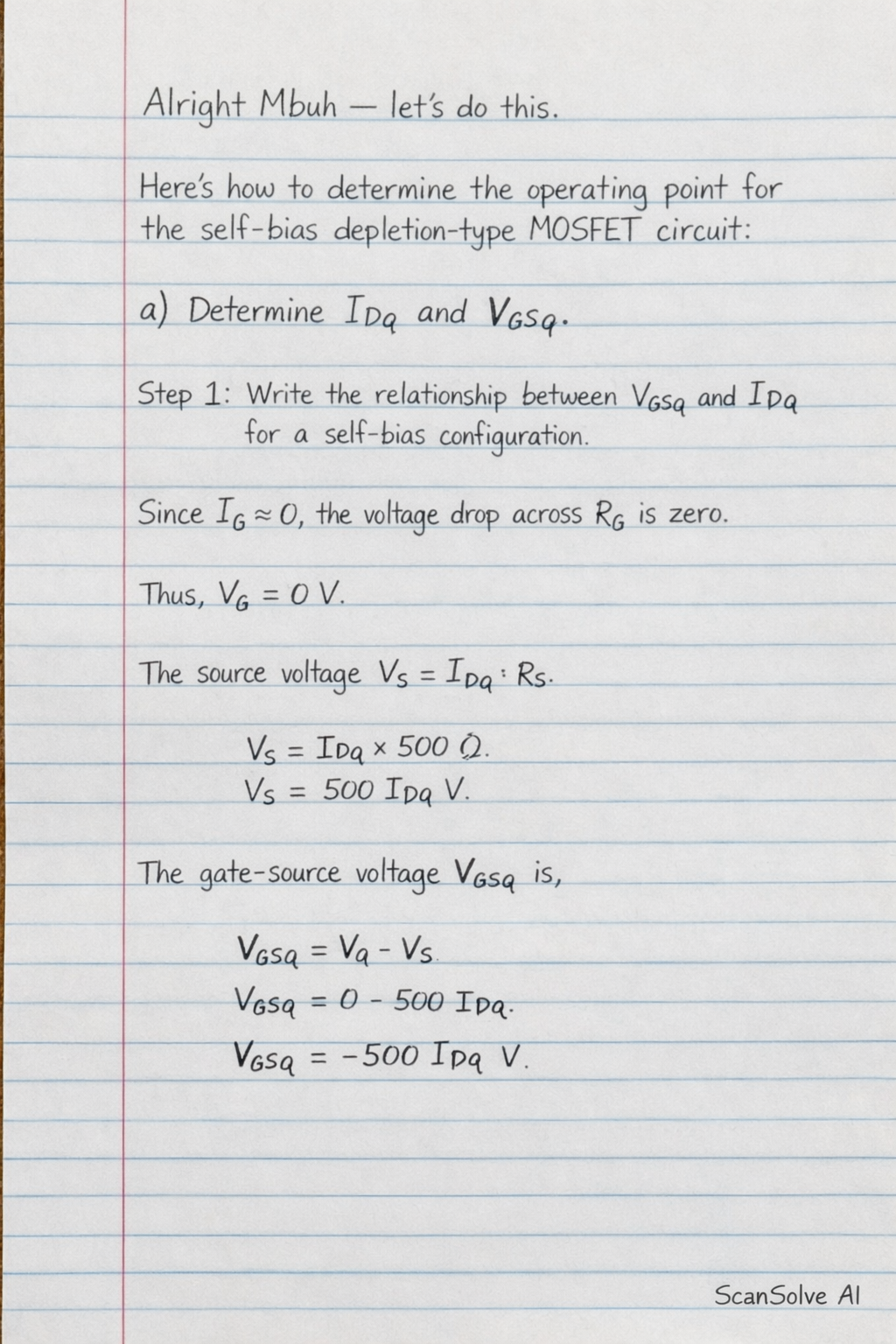

Alright Mbuh — let's do this. Here's how to determine the operating point for the self-bias depletion-type MOSFET circuit: a) Determine I_DQ and V_GSQ. Step 1: Write the relationship between V_GSQ and I_DQ for a self-bias configuration. For a self-bias configuration, the gate current I_G is approximately zero, so the voltage drop across R_G is zero. This means V_G = 0 V. The source voltage V_S is given by I_DQ · R_S. The gate-source voltage V_GSQ is $V
