Explain the sequence of events in an astable multivibrator when the power supply is switched on.
Computer Science
ScanSolve AI Answer
✅ Correct

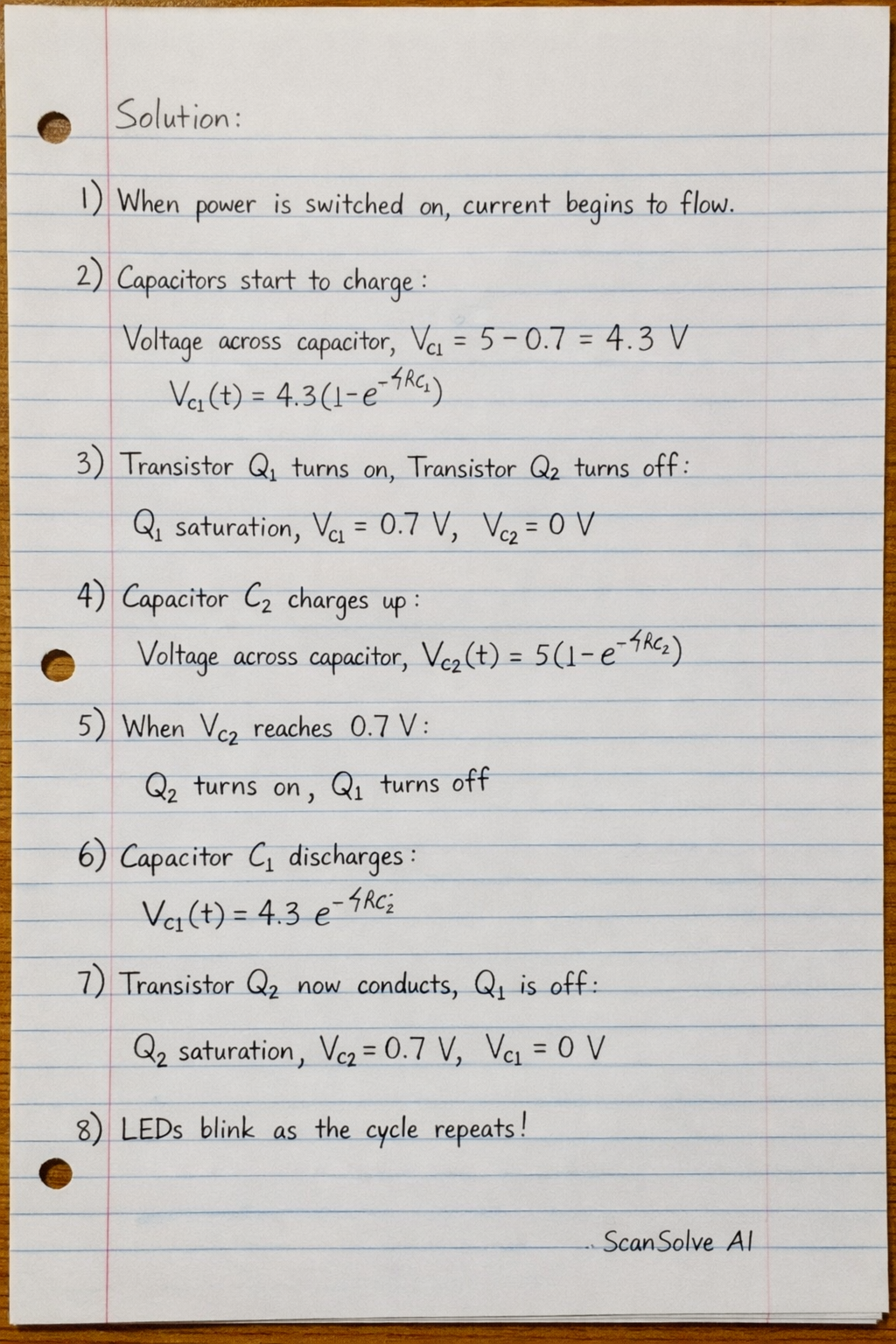

Your explanation accurately describes the sequence of events in an astable multivibrator when the power supply is switched on:
- Current flows, initiating the circuit's operation.
- Capacitors charge and discharge, which is fundamental to the multivibrator's oscillating behavior.
- This charging and discharging causes the transistors to switch on and off alternately.
- The alternating switching of transistors results in the LEDs blinking.
