The power supply is switched on for 300s and Calculate (i) the charge, Q, that flows in the coil. (ii) electrical resistance, R, of the coil.

Physics

ScanSolve AI Answer

Step-by-step solution

3 steps
  1. Identify the given values from the problem and the student's work.

    The power supply is switched on for t=300st = 300s.
    From the student's work in part (i), the current I=2.5AI = 2.5A is used. We will assume this is the current flowing in the coil.

  2. Calculate the charge, Q, that flows in the coil.

    The formula relating current (I), charge (Q), and time (t) is I=QtI = \frac{Q}{t}.
    To find the charge, we rearrange the formula to Q=I×tQ = I \times t.

    Q=2.5A×300sQ = 2.5A \times 300s Q=750CQ = 750C

    The charge, Q, that flows in the coil is 750 C\boxed{\text{750 C}}.

  3. Calculate the electrical resistance, R, of the coil.

    The problem does not explicitly state the components of the coil. However, the student's work shows R=R1+R2=2.5Ω+2.5ΩR = R_1 + R_2 = 2.5 \Omega + 2.5 \Omega. We will assume that the coil consists of two resistors, each with a resistance of 2.5Ω2.5 \Omega, connected in series.
    For resistors in series, the total resistance is the sum of individual resistances.

    R=R1+R2R = R_1 + R_2 R=2.5Ω+2.5ΩR = 2.5 \Omega + 2.5 \Omega R=5ΩR = 5 \Omega

    The electrical resistance, R, of the coil is 5 \Omega\boxed{\text{5 \Omega}}.

Was this helpful?

Still stuck on this one?

Ask a follow-up, and the answer starts from this question.

Got a different question?Ask your own question

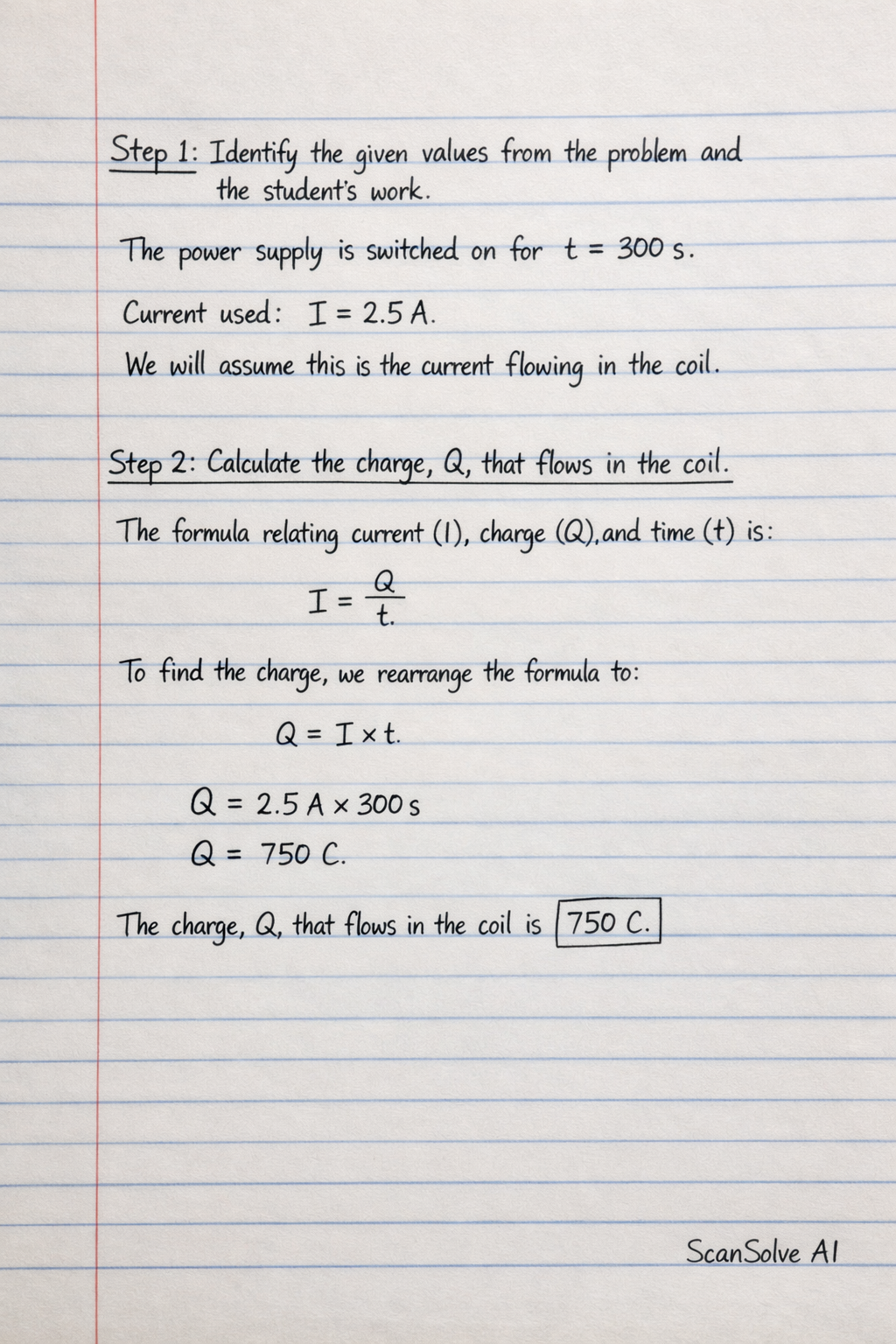

Handwritten step-by-step solution preview
