A square coil with 2000 turns and a side length of 150 mm is placed in a magnetic field. The magnetic flux density changes from 0.4 T to 0.2 T in 0.8 s. If the coil's resistance is 4 ohms and the angl

Physics

ScanSolve AI Answer

Answers

2 parts
1

Magnitude of induced EMF=7.95 V\text{Magnitude of induced EMF} = 7.95 \text{ V}

2

Magnitude of induced current=1.99 A\text{Magnitude of induced current} = 1.99 \text{ A}

Step-by-step solution

4 steps

Here are the calculations for the induced EMF and induced current.

Given information:

  • Number of turns, N=2000N = 2000
  • Side length of the square coil, L=150 mm=0.15 mL = 150 \text{ mm} = 0.15 \text{ m}
  • Initial magnetic flux density, B1=0.4 TB_1 = 0.4 \text{ T}
  • Final magnetic flux density, B2=0.2 TB_2 = 0.2 \text{ T}
  • Time interval, Δt=0.8 s\Delta t = 0.8 \text{ s}
  • Total resistance of the coil, R=4ΩR = 4 \Omega
  • Angle relative to the field, θ=45∘\theta = 45^\circ

Part 1· 3 steps

Calculate the magnitude of the induced EMF.

  1. Calculate the area of the square coil.

    A=L2A = L^2 A=(0.15 m)2A = (0.15 \text{ m})^2 A=0.0225 m2A = 0.0225 \text{ m}^2

  2. Calculate the change in magnetic flux density.

    ΔB=B2−B1\Delta B = B_2 - B_1 ΔB=0.2 T−0.4 T\Delta B = 0.2 \text{ T} - 0.4 \text{ T} ΔB=−0.2 T\Delta B = -0.2 \text{ T}

    For magnitude, we use ∣ΔB∣=0.2 T|\Delta B| = 0.2 \text{ T}.

  3. Calculate the magnitude of the induced EMF using Faraday's Law of Induction.

    The formula for induced EMF is E=−NΔΦΔt\mathcal{E} = -N \frac{\Delta \Phi}{\Delta t}, where Φ=BAcos⁡θ\Phi = BA \cos \theta.
    Since the magnetic flux density changes, ΔΦ=ΔB⋅A⋅cos⁡θ\Delta \Phi = \Delta B \cdot A \cdot \cos \theta.
    For the magnitude of EMF:

    ∣E∣=N∣ΔB∣⋅A⋅cos⁡θΔt|\mathcal{E}| = N \frac{|\Delta B| \cdot A \cdot \cos \theta}{\Delta t} ∣E∣=2000×0.2 T×0.0225 m2×cos⁡(45∘)0.8 s|\mathcal{E}| = 2000 \times \frac{0.2 \text{ T} \times 0.0225 \text{ m}^2 \times \cos(45^\circ)}{0.8 \text{ s}} ∣E∣=2000×0.2×0.0225×0.707106780.8|\mathcal{E}| = 2000 \times \frac{0.2 \times 0.0225 \times 0.70710678}{0.8} ∣E∣=2000×0.00318198050.8|\mathcal{E}| = 2000 \times \frac{0.0031819805}{0.8} ∣E∣=2000×0.0039774756|\mathcal{E}| = 2000 \times 0.0039774756 ∣E∣=7.9549512 V|\mathcal{E}| = 7.9549512 \text{ V}

    Rounding to three significant figures:

    Magnitude of induced EMF=7.95 V\boxed{\text{Magnitude of induced EMF} = 7.95 \text{ V}}

Part 2

Magnitude of induced current=1.99 A\text{Magnitude of induced current} = 1.99 \text{ A}

Calculate the magnitude of the induced current.

  1. Use Ohm's Law to find the induced current.

    I=∣E∣RI = \frac{|\mathcal{E}|}{R} I=7.9549512 V4ΩI = \frac{7.9549512 \text{ V}}{4 \Omega} I=1.9887378 AI = 1.9887378 \text{ A}

    Rounding to three significant figures:

    Magnitude of induced current=1.99 A\boxed{\text{Magnitude of induced current} = 1.99 \text{ A}}
Was this helpful?

Try one yourself

A new problem that tests the same skill.

Still stuck on this one?

Ask a follow-up, and the answer starts from this question.

Got a different question?Ask your own question

More Physics Questions

QA rectangular coil of 150 turns, initially 5 cm by 8 cm, changes its dimensions to 7 cm by 11 cm in…QA coil of 500 turns has a magnetic flux of 0.4 Wb linking it. If this flux is reversed in 0.01 s…QA moving-coil instrument gives a full-scale deflection if 20 mA flows through it. The resistance of…QAcross a 100 V, 50 Hz supply, a coil with a resistance of 10 and an inductance of 210 mH is…QThe power supply is switched on for 300s and Calculate (i) the charge, Q, that flows in the coil…
Browse by topic:Electromagnetism
See all Physics questions →
Got a syllabus? Photograph it and I'll tell you what's due and what's worth the most.

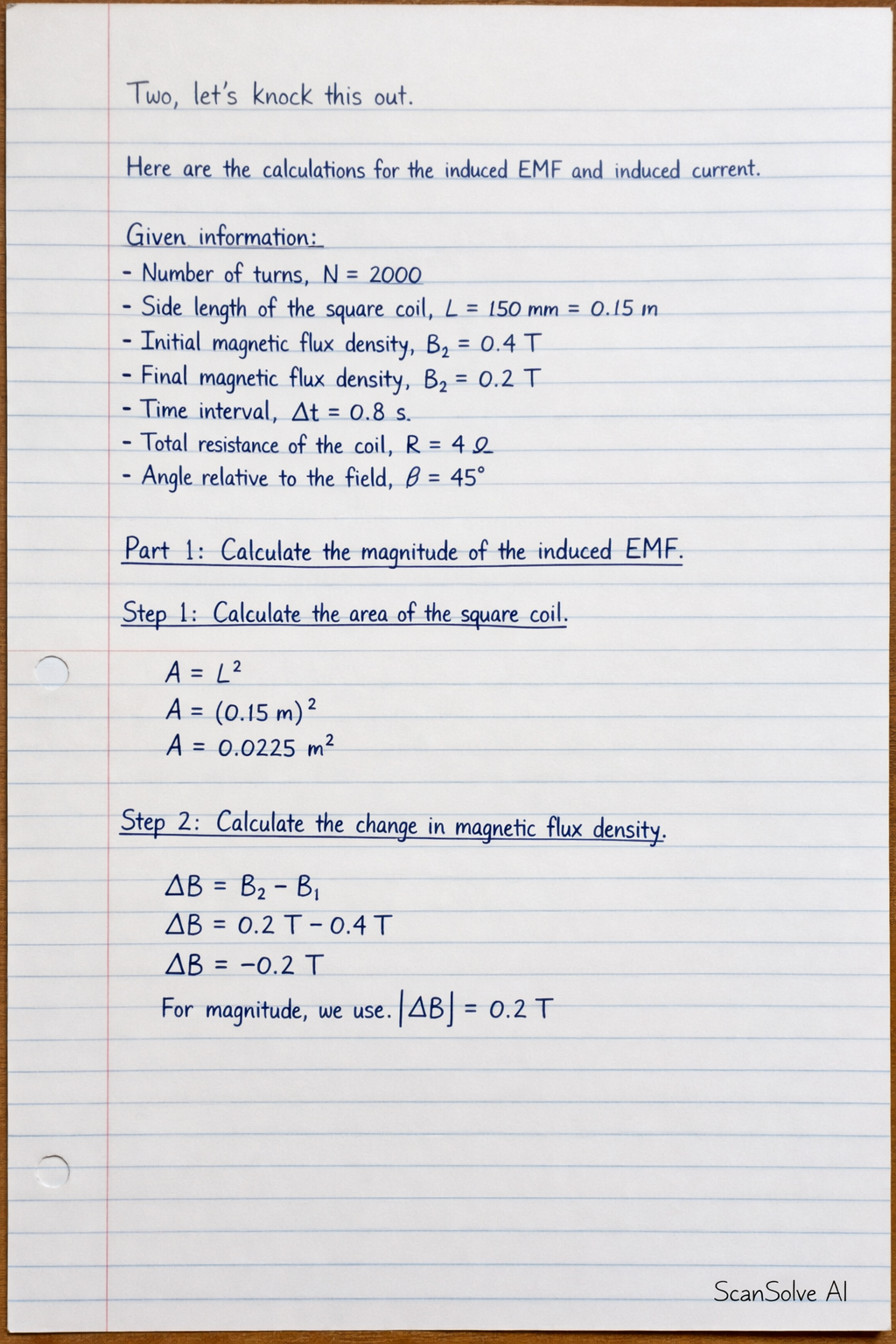

Handwritten step-by-step solution preview
