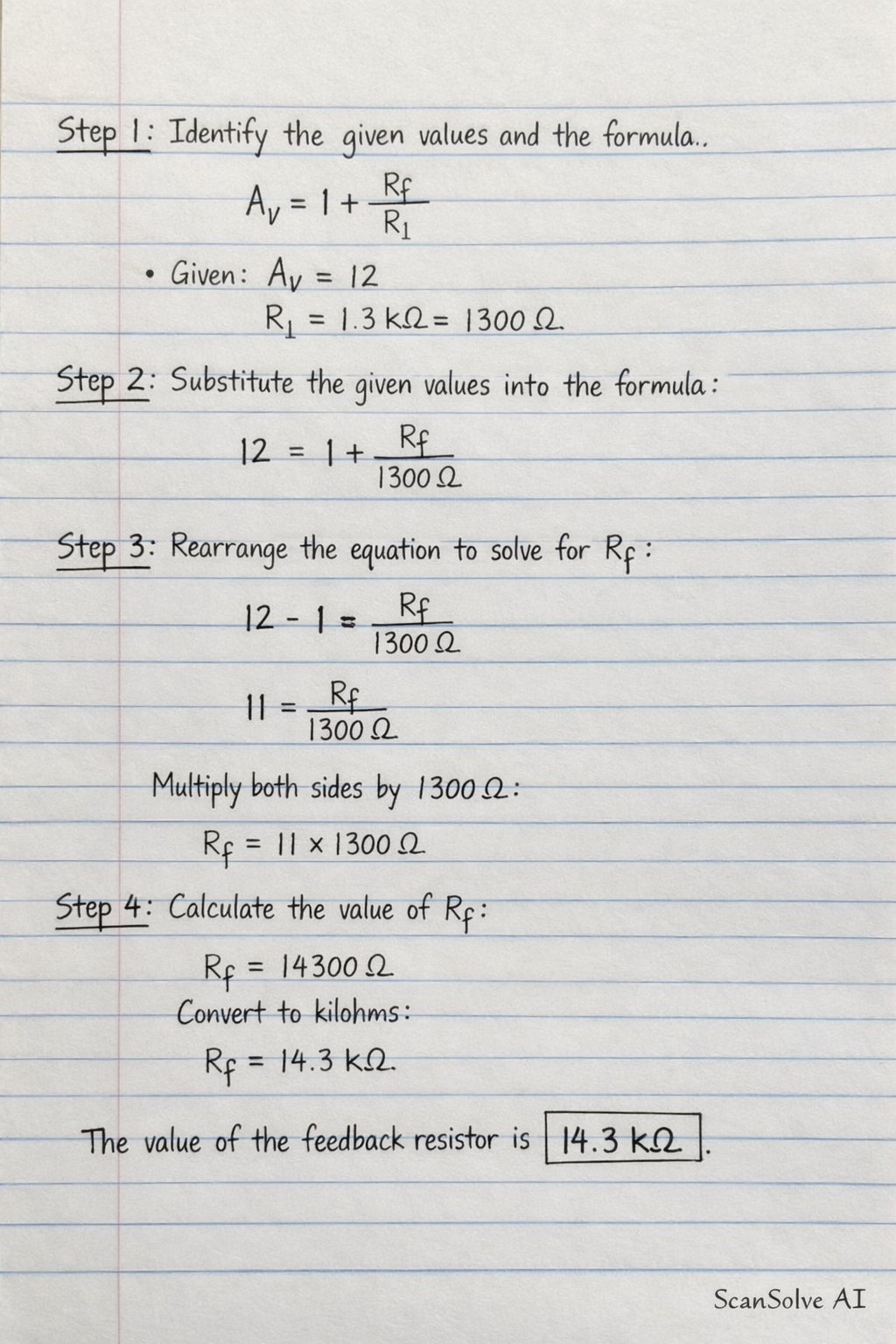

Step 1: Identify the given values and the formula for a non-inverting operational amplifier. The voltage gain (A_v) for a non-inverting operational amplifier is given by the formula: A_v = 1 + (R_f)/(R_1) Given values: • Voltage gain, A_v = 12 • Input resistor, R_1 = 1.3 \, k = 1300 \, Step 2: Substitute the given values into the formula. 12 = 1 + (R_f)/(1300 \, ) Step 3: Rearrange the equation to solve for R_f. Subtract 1 from both sides: 12 - 1 = (R_f)/(1300 \, ) 11 = (R_f)/(1300 \, ) Multiply both sides by 1300 \, : R_f = 11 × 1300 \, Step 4: Calculate the value of R_f. R_f = 14300 \, Convert to kilohms: R_f = 14.3 \, k The value of the feedback resistor is 14.3 k. Send me the next one 📸
