Teaser / foresight draft for further thoughts /self study 10 Marks to supplement the poor test score. To be orally defended…. Use the engine model to calculate the performance of the engine such as Swept volume Clearance volume Indicated power if mechanical efficiency is 85% Frictional power Fuel power Brake mean effective pressure Frictional mean effective pressure Indicated load if the net brake load is 167N from 3 cylinders Mean piston speed Brake thermal and indicated thermal efficiency Predict the combustion performance of the engine if the exhaust temperatures from the three cylinders are 350, 379 and 380 degree Celsius Judging from your prediction, is the engine Time correct? Is there a problem with the lubrication and cooling system? Justify your reasons? Using equivalence ratio, discuss the nature of the mixture Engine specific volume Stroke to bore ratio Engine capacity in c.cm Propose the cycle on which the engine Can operate and state your reasons Classify the engine according to stroke, speed, aspiration, fuel usage and cooling Determine the thermal balance using the information from your test question table If the engine consumed 3litres, determine the engine specific volume in Litre per kw Air consumption per hour Determine also how long the exhaust valve opening is in seconds when the peak pressure of the engine ocurs at 0.003sec after the flame front if the exhaust valve opens at 10 degrees

ScanSolve AI Tutor · Accepted Answer

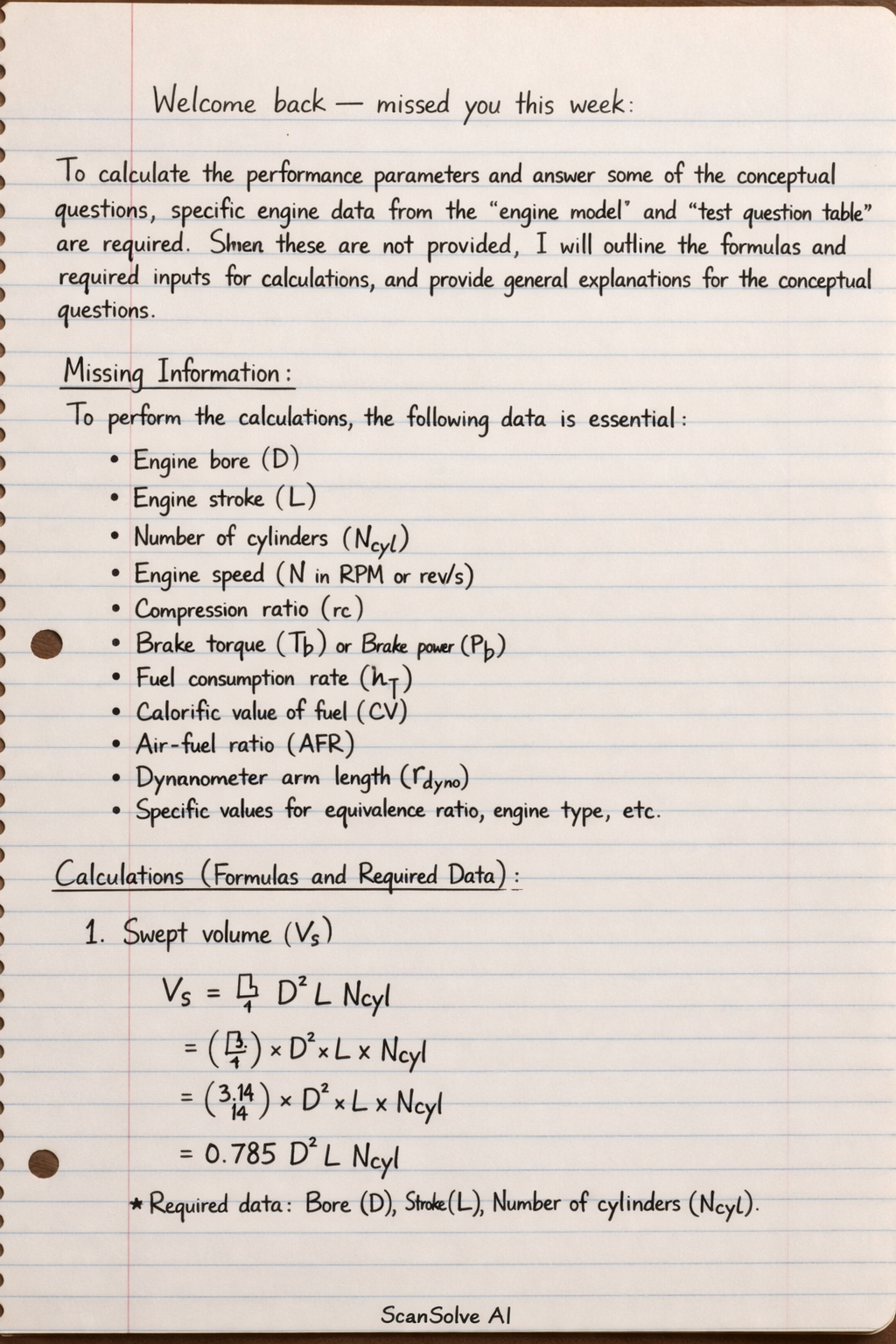

To calculate the performance parameters and answer some of the conceptual questions, specific engine data from the "engine model" and "test question table" are required. Since these are not provided, I will outline the formulas and required inputs for calculations, and provide general explanations for the conceptual questions.

Missing Information:
To perform the calculations, the following data is essential:

Engine bore ( $D$ )
Engine stroke ( $L$ )
Number of cylinders ( $N_{cyl}$ )
Engine speed ( $N$ in RPM or rev/s)
Compression ratio ( $r_c$ )
Brake torque ( $T_b$ ) or Brake power ( $P_b$ )
Fuel consumption rate ( $\dot{m}_f$ )
Calorific value of fuel ( $CV$ )
Air-fuel ratio ( $AFR$ )
Dynamometer arm length ( $r_{dyno}$ )
Specific values for equivalence ratio, engine type, etc.

Calculations (Formulas and Required Data):

Swept volume ( $V_s$ )
$V_s = \frac{\pi}{4} D^2 L N_{cyl}$
Required data: Bore ( $D$ ), Stroke ( $L$ ), Number of cylinders ( $N_{cyl}$ ).
Clearance volume ( $V_c$ )
$V_c = \frac{V_s}{r_c - 1}$
Required data: Swept volume ( $V_s$ ), Compression ratio ( $r_c$ ).
Indicated power ( $P_i$ )
Given mechanical efficiency ( $\eta_m = 85\% = 0.85$ ).
$P_i = \frac{P_b}{\eta_m}$
Required data: Brake power ( $P_b$ ). If $P_b$ is not given directly, it can be calculated from brake load ( $F_b$ ), dynamometer arm length ( $r_{dyno}$ ), and engine speed ( $N$ ): $P_b = 2 \pi N_{rev/sec} F_b r_{dyno}$ .
Frictional power ( $P_f$ )
$P_f = P_i - P_b$
Required data: Indicated power ( $P_i$ ), Brake power ( $P_b$ ).
Fuel power ( $P_{fuel}$ )
$P_{fuel} = \dot{m}_f \times CV$
Required data: Fuel consumption rate ( $\dot{m}_f$ ), Calorific value of fuel ( $CV$ ).
Brake mean effective pressure (BMEP)
For a 4-stroke engine ( $k=0.5$ power stroke per revolution per cylinder):
$BMEP = \frac{P_b \times k \times 2}{V_s \times N_{rev/sec}}$
For a 2-stroke engine ( $k=1$ power stroke per revolution per cylinder):
$BMEP = \frac{P_b \times k \times 2}{V_s \times N_{rev/sec}}$
Required data: Brake power ( $P_b$ ), Swept volume ( $V_s$ ), Engine speed ( $N_{rev/sec}$ ), Engine type (2-stroke or 4-stroke).
1. **F

Step-by-step solution

Swept volume ( $V_s$ )

Clearance volume ( $V_c$ )

Indicated power ( $P_i$ )

Frictional power ( $P_f$ )

Fuel power ( $P_{fuel}$ )

Brake mean effective pressure (BMEP)
