A 2.6m pipe leans against a wall. Its bottom end is pulled away from the wall at 0.2 m/s. How fast is the top of the pipe sliding down the wall when its bottom is 0.6m from the wall?

Mathematics

ScanSolve AI Answer

Answer

0.0474 m/s\text{0.0474 m/s}

Step-by-step solution

4 steps
  1. Set up the relationship between the pipe, wall, and ground.

    Let xx be the distance of the bottom end of the pipe from the wall, and yy be the height of the top end of the pipe on the wall. The length of the pipe is L=2.6L = 2.6 m. These form a right-angled triangle, so by the Pythagorean theorem:

    x2+y2=L2x^2 + y^2 = L^2 x2+y2=(2.6)2x^2 + y^2 = (2.6)^2
  2. Differentiate the equation with respect to time tt.

    Differentiating both sides with respect to tt:

    ddt(x2+y2)=ddt(2.62)\frac{d}{dt}(x^2 + y^2) = \frac{d}{dt}(2.6^2) 2xdxdt+2ydydt=02x \frac{dx}{dt} + 2y \frac{dy}{dt} = 0 xdxdt+ydydt=0x \frac{dx}{dt} + y \frac{dy}{dt} = 0
  3. Find the value of yy when x=0.6x = 0.6 m.

    Given x=0.6x = 0.6 m and L=2.6L = 2.6 m:

    (0.6)2+y2=(2.6)2(0.6)^2 + y^2 = (2.6)^2 0.36+y2=6.760.36 + y^2 = 6.76 y2=6.76−0.36y^2 = 6.76 - 0.36 y2=6.4y^2 = 6.4 y=6.4 my = \sqrt{6.4} \text{ m}
  4. Substitute known values and solve for dydt\frac{dy}{dt}.

    We are given dxdt=0.2\frac{dx}{dt} = 0.2 m/s. We found x=0.6x = 0.6 m and y=6.4y = \sqrt{6.4} m.
    Substitute these into the differentiated equation:

    (0.6 m)(0.2 m/s)+(6.4 m)dydt=0(0.6 \text{ m})(0.2 \text{ m/s}) + (\sqrt{6.4} \text{ m}) \frac{dy}{dt} = 0 0.12 m2/s+6.4 mdydt=00.12 \text{ m}^2/\text{s} + \sqrt{6.4} \text{ m} \frac{dy}{dt} = 0 6.4dydt=−0.12\sqrt{6.4} \frac{dy}{dt} = -0.12 dydt=−0.126.4\frac{dy}{dt} = -\frac{0.12}{\sqrt{6.4}} dydt≈−0.122.5298\frac{dy}{dt} \approx -\frac{0.12}{2.5298} dydt≈−0.04743 m/s\frac{dy}{dt} \approx -0.04743 \text{ m/s}

    The negative sign indicates that the top end of the pipe is descending.

    The top end of the pipe is descending at approximately 0.0474 m/s\text{0.0474 m/s}.

Was this helpful?

Try one yourself

A new problem that tests the same skill.

Still stuck on this one?

Ask a follow-up, and the answer starts from this question.

Got a different question?Ask your own question

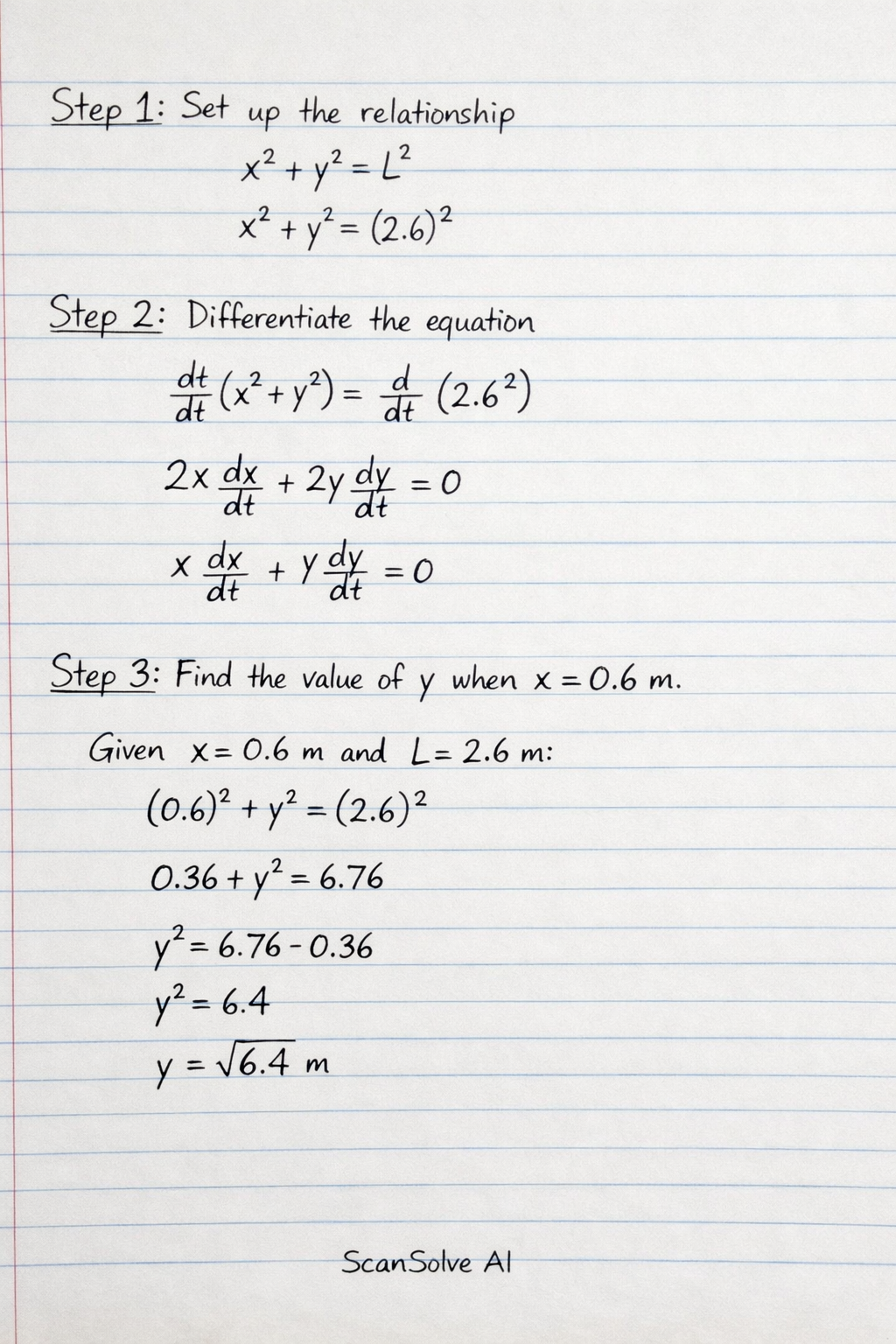

Handwritten step-by-step solution preview
