We read your photo as:

A linear transformation T maps A(2, 1) to A'(4, 1). If the transformation matrix T has the form [1 k; 0 1], find T and the images of B(3, 2), C(3, 4), D(2, 3) under T.

Mathematics

ScanSolve AI Answer

Answers

2 parts
a

[1201]\begin{bmatrix} 1 & 2 \\ 0 & 1 \end{bmatrix}

b

[12−4817−67]\begin{bmatrix} 12 & -48 \\ 17 & -67 \end{bmatrix}

Step-by-step solution

2 steps

Part a· 1 step

Step 1: Determine the transformation matrix T.

The transformation T is a shear with the x-axis invariant. A shear matrix with the x-axis invariant has the form [1k01]\begin{bmatrix} 1 & k \\ 0 & 1 \end{bmatrix}.
Given A(2, 1) is mapped to A'(4, 1).

[1k01][21]=[41]\begin{bmatrix} 1 & k \\ 0 & 1 \end{bmatrix} \begin{bmatrix} 2 \\ 1 \end{bmatrix} = \begin{bmatrix} 4 \\ 1 \end{bmatrix}

This gives two equations:
1(2)+k(1)=4⇒2+k=4⇒k=21(2) + k(1) = 4 \Rightarrow 2 + k = 4 \Rightarrow k = 2
0(2)+1(1)=1⇒1=10(2) + 1(1) = 1 \Rightarrow 1 = 1 (consistent)
So, the transformation matrix T is:

T=[1201]\mathbf{T} = \boxed{\begin{bmatrix} 1 & 2 \\ 0 & 1 \end{bmatrix}}
  1. Determine the coordinates of B', C', and D'.

    The original coordinates are B(3, 2), C(3, 4), D(2, 3).
    For B':

    [1201][32]=[1(3)+2(2)0(3)+1(2)]=[3+42]=[72]\begin{bmatrix} 1 & 2 \\ 0 & 1 \end{bmatrix} \begin{bmatrix} 3 \\ 2 \end{bmatrix} = \begin{bmatrix} 1(3) + 2(2) \\ 0(3) + 1(2) \end{bmatrix} = \begin{bmatrix} 3 + 4 \\ 2 \end{bmatrix} = \begin{bmatrix} 7 \\ 2 \end{bmatrix}

    So, B' is (7, 2).

    For C':

    [1201][34]=[1(3)+2(4)0(3)+1(4)]=[3+84]=[114]\begin{bmatrix} 1 & 2 \\ 0 & 1 \end{bmatrix} \begin{bmatrix} 3 \\ 4 \end{bmatrix} = \begin{bmatrix} 1(3) + 2(4) \\ 0(3) + 1(4) \end{bmatrix} = \begin{bmatrix} 3 + 8 \\ 4 \end{bmatrix} = \begin{bmatrix} 11 \\ 4 \end{bmatrix}

    So, C' is (11, 4).

    For D':

    [1201][23]=[1(2)+2(3)0(2)+1(3)]=[2+63]=[83]\begin{bmatrix} 1 & 2 \\ 0 & 1 \end{bmatrix} \begin{bmatrix} 2 \\ 3 \end{bmatrix} = \begin{bmatrix} 1(2) + 2(3) \\ 0(2) + 1(3) \end{bmatrix} = \begin{bmatrix} 2 + 6 \\ 3 \end{bmatrix} = \begin{bmatrix} 8 \\ 3 \end{bmatrix}

    So, D' is (8, 3).

Part b

[12−4817−67]\begin{bmatrix} 12 & -48 \\ 17 & -67 \end{bmatrix}

Step 1: Determine the transformation matrix H.

Let the transformation matrix H be [abcd]\begin{bmatrix} a & b \\ c & d \end{bmatrix}.
Given A'(4, 1) is mapped to A''(0, 1) and B'(7, 2) is mapped to B''(-12, -15).
For A':

[abcd][41]=[01]\begin{bmatrix} a & b \\ c & d \end{bmatrix} \begin{bmatrix} 4 \\ 1 \end{bmatrix} = \begin{bmatrix} 0 \\ 1 \end{bmatrix}

This gives:

  1. 4a+b=04a + b = 0
  2. 4c+d=14c + d = 1

For B':

[abcd][72]=[−12−15]\begin{bmatrix} a & b \\ c & d \end{bmatrix} \begin{bmatrix} 7 \\ 2 \end{bmatrix} = \begin{bmatrix} -12 \\ -15 \end{bmatrix}

This gives: 3) 7a+2b=−127a + 2b = -12 4) 7c+2d=−157c + 2d = -15

From (1), b=−4ab = -4a. Substitute into (3):
7a+2(−4a)=−127a + 2(-4a) = -12
7a−8a=−127a - 8a = -12
−a=−12⇒a=12-a = -12 \Rightarrow a = 12
Substitute a=12a = 12 into b=−4ab = -4a:
b=−4(12)=−48b = -4(12) = -48

From (2), d=1−4cd = 1 - 4c. Substitute into (4):
7c+2(1−4c)=−157c + 2(1 - 4c) = -15
7c+2−8c=−157c + 2 - 8c = -15
−c+2=−15-c + 2 = -15
−c=−17⇒c=17-c = -17 \Rightarrow c = 17
Substitute c=17c = 17 into d=1−4cd = 1 - 4c:
d=1−4(17)=1−68=−67d = 1 - 4(17) = 1 - 68 = -67

So, the transformation matrix H is:

H=[12−4817−67]\mathbf{H} = \boxed{\begin{bmatrix} 12 & -48 \\ 17 & -67 \end{bmatrix}}
  1. Determine the coordinates of C''.

    C' is (11, 4) from part (a).

    [12−4817−67][114]=[12(11)+(−48)(4)17(11)+(−67)(4)]=[132−192187−268]=[−60−81]\begin{bmatrix} 12 & -48 \\ 17 & -67 \end{bmatrix} \begin{bmatrix} 11 \\ 4 \end{bmatrix} = \begin{bmatrix} 12(11) + (-48)(4) \\ 17(11) + (-67)(4) \end{bmatrix} = \begin{bmatrix} 132 - 192 \\ 187 - 268 \end{bmatrix} = \begin{bmatrix} -60 \\ -81 \end{bmatrix}

    So, C'' is (-60, -81).

Was this helpful?

Still stuck on this one?

Ask a follow-up, and the answer starts from this question.

Got a different question?Ask your own question

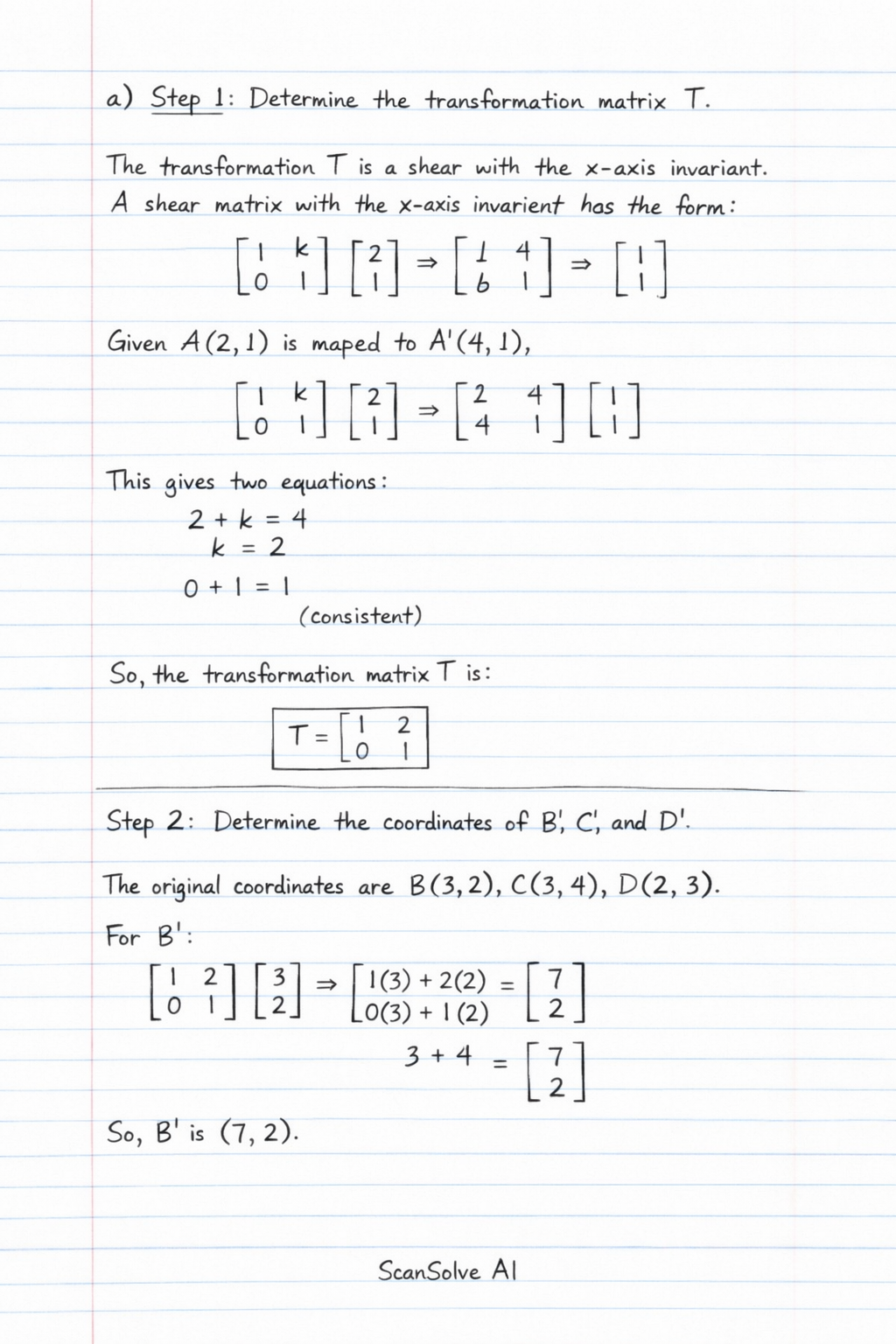

Handwritten step-by-step solution preview
