ANSWER ANY FOUR Questions 1)Construct an Equilateral triangle ABC, given AB=50mm 2)Construct an isosceles…

Question

ANSWER ANY FOUR Questions 1)Construct an Equilateral triangle ABC, given AB=50mm 2)Construct an isosceles triangle ABC, given AB=70mm, AC=50 3)Construct a scalena triangle ABC, given AB=80mm, AC=60mm, BC=40mm

ScanSolve AI Tutor · Accepted Answer

here are the construction steps for the triangles in your image, formatted as requested:

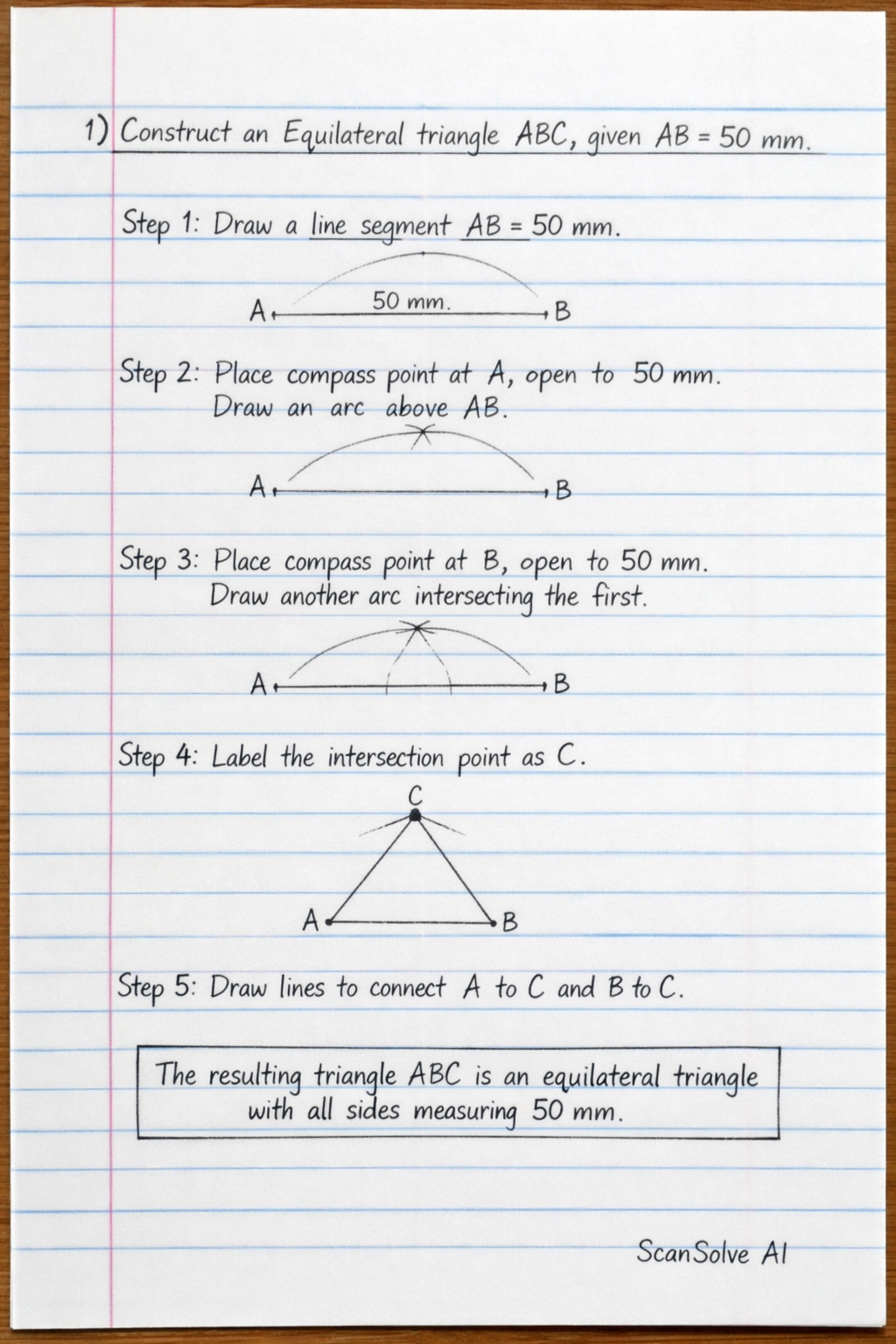

1) Construct an Equilateral triangle ABC, given AB= $50 \text{ mm}$

Draw a line segment AB of length $50 \text{ mm}$ .
Place the compass point at A and open it to a radius of $50 \text{ mm}$ .
Draw an arc above the line segment AB.
Place the compass point at B and, keeping the radius at $50 \text{ mm}$ , draw another arc that intersects the first arc.
Label the point where the two arcs intersect as C.
Draw straight lines to connect A to C and B to C.
$\boxed{\text{The resulting triangle ABC is an \textbf{equilateral triangle} with all sides measuring } 50 \text{ mm}.}$
2) Construct an isosceles triangle ABC, given AB= $70 \text{ mm}$ , AC= $50 \text{ mm}$
Draw a line segment AB of length $70 \text{ mm}$ .
Place the compass point at A and open it to a radius of $50 \text{ mm}$ (length of AC).
Draw an arc above the line segment AB.
Since it's an isosceles triangle and AC = $50 \text{ mm}$ , the other equal side must be BC, so BC = $50 \text{ mm}$ .
Place the compass point at B and, keeping the radius at $50 \text{ mm}$ , draw another arc that intersects the first arc.
Label the point where the two arcs intersect as C.
Draw straight lines to connect A to C and B to C.
$\boxed{\text{The resulting triangle ABC is an \textbf{isosceles triangle} with sides AB = } 70 \text{ mm, AC = } 50 \text{ mm, and BC = } 50 \text{ mm}.}$
3) Construct a scalene triangle ABC, given AB= $80 \text{ mm}$ , AC= $60 \text{ mm}$ , BC= $40 \text{ mm}$
Draw a line segment AB of length $80 \text{ mm}$ .
Place the compass point at A and open it to a radius of $60 \text{ mm}$ (length of AC).
Draw an arc above the line segment AB.
Place the compass point at B and open it to a radius of $40 \text{ mm}$ (length of BC).
Draw another arc that intersects the first arc.
Label the point where the two arcs intersect as C.
Draw straight lines to connect A to C and B to C.
$\boxed{\text{The resulting triangle ABC is a \textbf{scalene triangle} with sides AB = } 80 \text{ mm, AC = } 60 \text{ mm, and BC = } 40 \text{ mm}.}$
