Find the area of the following shape. Use Use pi=3.142 and give your answer correct to 1 decimal place.

Question

Find the area of the following shape. Use Use pi=3.142 and give your answer correct to 1 decimal place.

ScanSolve AI Tutor · Accepted Answer

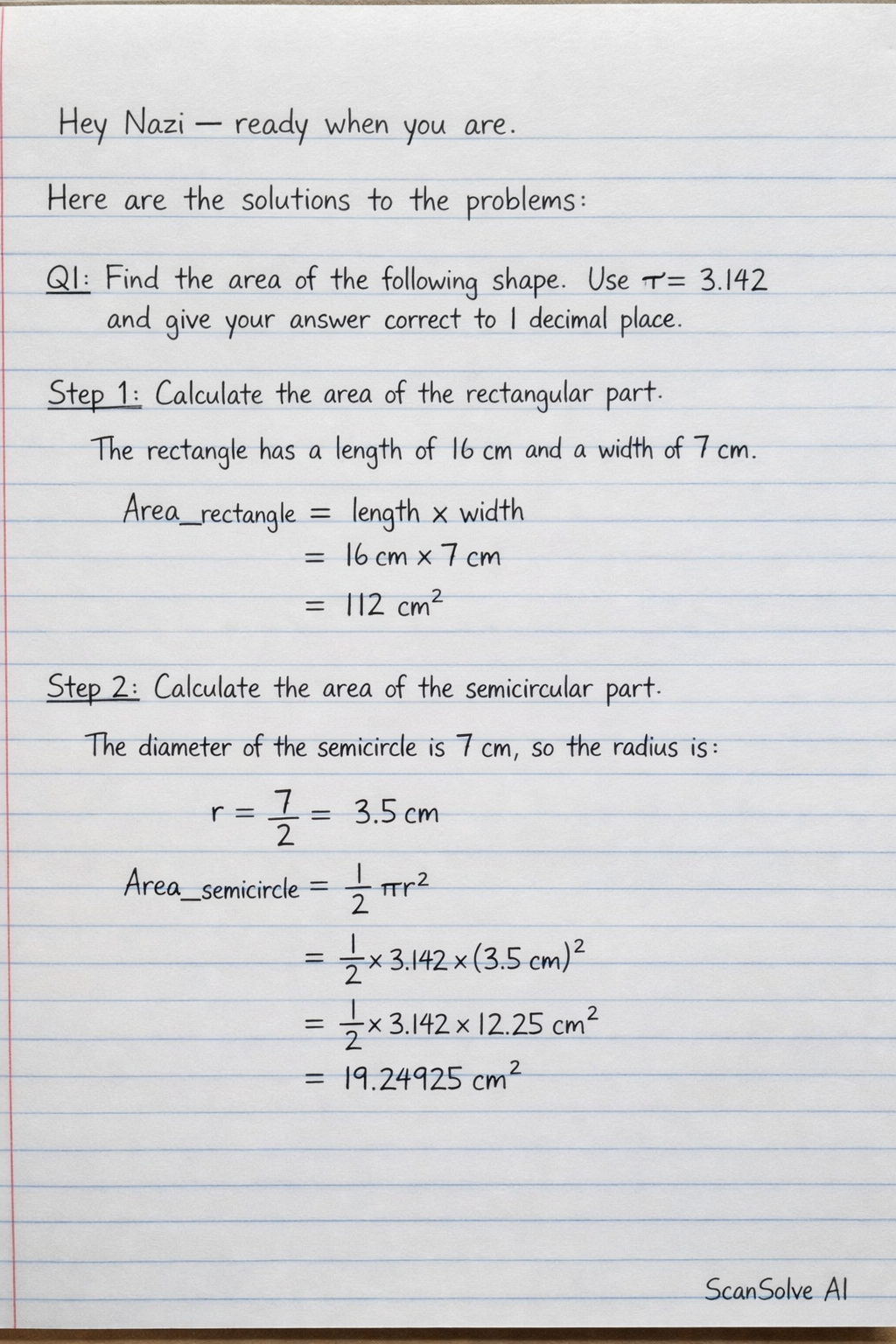

Here are the solutions to the problems:

Q1: Find the area of the following shape. Use $\pi=3.142$ and give your answer correct to 1 decimal place.

Calculate the area of the rectangular part.
The rectangle has a length of 16 cm and a width of 7 cm.
$\text{Area}_{\text{rectangle}} = \text{length} \times \text{width} = 16\, \text{cm} \times 7\, \text{cm} = 112\, \text{cm}^2$
Calculate the area of the semicircular part.
The diameter of the semicircle is 7 cm, so the radius is $r = \frac{7}{2} = 3.5$ cm.
$\text{Area}_{\text{semicircle}} = \frac{1}{2} \pi r^2 = \frac{1}{2} \times 3.142 \times (3.5\, \text{cm})^2$ $\text{Area}_{\text{semicircle}} = \frac{1}{2} \times 3.142 \times 12.25\, \text{cm}^2 = 19.24925\, \text{cm}^2$
Add the areas to find the total area and round to one decimal place.
$\text{Total Area} = \text{Area}_{\text{rectangle}} + \text{Area}_{\text{semicircle}} = 112\, \text{cm}^2 + 19.24925\, \text{cm}^2 = 131.24925\, \text{cm}^2$
Rounding to one decimal place:
$\text{Total Area} \approx 131.2\, \text{cm}^2$
The final answer is $\boxed{\text{131.2 cm}^2}$ .

Q2: Find the area of the shaded region. Give your answer to the nearest cm².
Calculate the area of the large rectangle.
The rectangle has a length of 44 cm and a width of 28 cm.
$\text{Area}_{\text{rectangle}} = \text{length} \times \text{width} = 44\, \text{cm} \times 28\, \text{cm} = 1232\, \text{cm}^2$
Calculate the area of the unshaded triangle.
The triangle has a base of 34 cm and a height of 18 cm.
$\text{Area}_{\text{triangle}} = \frac{1}{2} \times \text{base} \times \text{height} = \frac{1}{2} \times 34\, \text{cm} \times 18\, \text{cm} = 306\, \text{cm}^2$
Subtract the area of the triangle from the area of the rectangle to find the shaded area and round to the nearest cm².
$\text{Area}_{\text{shaded}} = \text{Area}_{\text{rectangle}} - \text{Area}_{\text{triangle}} = 1232\, \text{cm}^2 - 306\, \text{cm}^2 = 926\, \text{cm}^2$
The final answer is $\boxed{\text{926 cm}^2}$ .

Q3: Find the area of the following trapezium (correct to 2 decimal places).
Identify the lengths of the parallel sides and the height.
The parallel sides are $a = 5.54$ cm and $b = 7.64$ cm.
The height is $h = 3.9$ cm.
Use the formula for the area of a trapezium.
The area of a trapezium is given by $\text{Area} = \frac{1}{2} (a+b) h$ .
$\text{Area} = \frac{1}{2} (5.54\, \text{cm} + 7.64\, \text{cm}) \times 3.9\, \text{cm}$ $\text{Area} = \frac{1}{2} (13.18\, \text{cm}) \times 3.9\, \text{cm}$ $\text{Area} = 6.59\, \text{cm} \times 3.9\, \text{cm} = 25.701\, \text{cm}^2$
Round the answer to two decimal places.
$\text{Area} \approx 25.70\, \text{cm}^2$
The final answer is $\boxed{\text{25.70 cm}^2}$ .

Q4: Find the surface area of the Triangular prism.
Calculate the area of the two triangular bases.
The base of the triangle is $B = 35$ and the height is $H = 28$ .
$\text{Area}_{\text{base triangle}} = \frac{1}{2} \times B \times H = \frac{1}{2} \times 35 \times 28 = 490$
Since there are two such bases, their combined area is $2 \times 490 = 980$ .
Calculate the areas of the three rectangular faces.
The length of the prism is $L = 25$ . The sides of the triangular base are 35, 33, and 33 (from the diagram, assuming the $S=33$ refers to the equal sides of the isosceles triangle, which is consistent with $\sqrt{28^2 + (35/2)^2} \approx 33$ ).
- Area of the bottom rectangular face: $35 \times 25 = 875$
- Area of the first slanted rectangular face: $33 \times 25 = 825$
- Area of the second slanted rectangular face: $33 \times 25 = 825$
Sum all the areas to find the total surface area.
$\text{Total Surface Area} = (2 \times \text{Area}_{\text{base triangle}}) + \text{Area}_{\text{face 1}} + \text{Area}_{\text{face 2}} + \text{Area}_{\text{face 3}}$ $\text{Total Surface Area} = 980 + 875 + 825 + 825 = 3505$
The units are not specified in the question or diagram for this problem, so we will assume generic units.
The final answer is $\boxed{\text{3505 square units}}$ .

Q5: Find the Total surface area of the following closed cone with the following dimensions: $r=9$ , $H=18$ , $L=20$ . Use $\pi=3.14$ and give your answer to the nearest square units.
Identify the given dimensions.
Radius $r = 9$ .
Slant height $L = 20$ .
Height $H = 18$ .
Use $\pi = 3.14$ .
Calculate the area of the circular base.
$\text{Area}_{\text{base}} = \pi r^2 = 3.14 \times (9)^2 = 3.14 \times 81 = 254.34$
Calculate the lateral surface area of the cone.
$\text{Area}_{\text{lateral}} = \pi r L = 3.14 \times 9 \times 20 = 3.14 \times 180 = 565.2$
Add the base area and lateral surface area to find the total surface area and round to the nearest square unit.
$\text{Total Surface Area} = \text{Area}_{\text{base}} + \text{Area}_{\text{lateral}} = 254.34 + 565.2 = 819.54$
Rounding to the nearest square unit:
$\text{Total Surface Area} \approx 820$
The final answer is $\boxed{\text{820 square units}}$ .
