Construct the following angles with your compass and pencil only: 45°

Mathematics

ScanSolve AI Answer

Answer

The angle ∠UOA=45∘\text{The angle } \angle UOA = 45^\circ

Step-by-step solution

3 steps

To construct an angle of 45∘45^\circ, follow these steps:

  1. Draw a ray and construct a 90∘90^\circ angle.

    Draw a ray OA⃗\vec{OA}. Place the compass at OO and draw a large arc intersecting OA⃗\vec{OA} at PP. With the same radius, draw arcs from PP and then from the intersection point of the first arc to create points for a 90∘90^\circ angle. Specifically, from PP, draw an arc to intersect the large arc at QQ. From QQ, draw another arc to intersect the large arc at RR. Then, from QQ and RR, draw arcs that intersect above the large arc at SS. Draw a ray OS⃗\vec{OS} from OO through SS, such that ∠SOA=90∘\angle SOA = 90^\circ. Let TT be the point where the initial large arc intersects OS⃗\vec{OS}.

  2. Bisect the 90∘90^\circ angle.

    Place the compass at PP (the intersection of the first arc and OA⃗\vec{OA}) and draw an arc inside ∠SOA\angle SOA. Then, place the compass at TT (the intersection of the first arc and OS⃗\vec{OS}) and draw another arc that intersects the arc drawn from PP. Let this intersection point be UU.

  3. Draw the 45∘45^\circ angle.

    Draw a ray from OO through UU. This ray, OU⃗\vec{OU}, bisects ∠SOA\angle SOA.
    The angle ∠UOA\angle UOA is the constructed 45∘45^\circ angle.

    The angle ∠UOA=45∘\text{The angle } \angle UOA = 45^\circ
Was this helpful?

Try one yourself

A new problem that tests the same skill.

Still stuck on this one?

Ask a follow-up, and the answer starts from this question.

Got a different question?Ask your own question

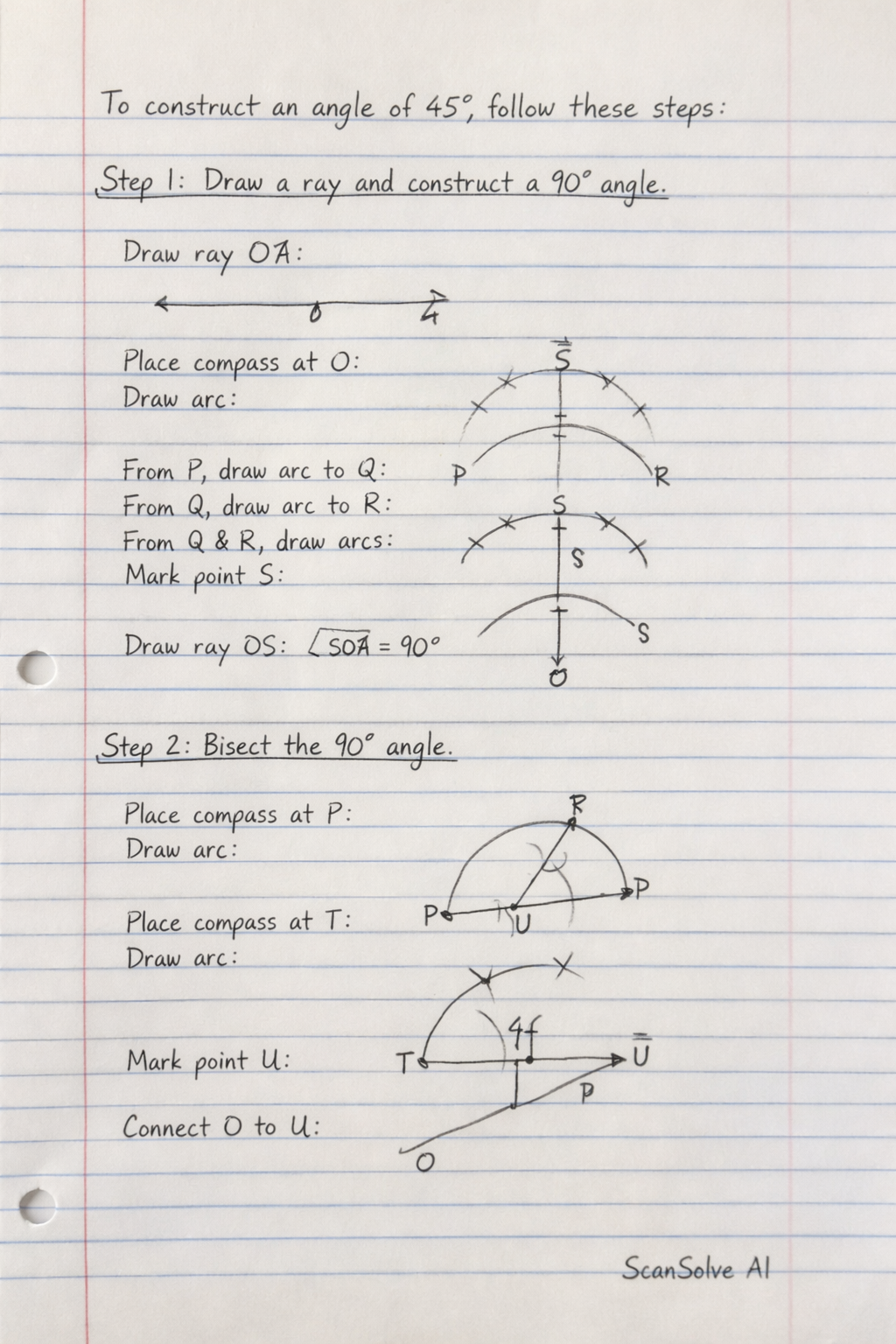

Handwritten step-by-step solution preview
