We read your photo as:

Construct triangle ABC.

Mathematics

ScanSolve AI Answer

Step-by-step solution

4 steps
  1. Construct triangle ABC.

    • Draw a line segment BC of length 10 cm10 \text{ cm}.
    • At point C, construct an angle of 60∘60^\circ. To do this:
      • Place the compass at C and draw an arc that intersects BC.
      • Without changing the compass radius, place the compass at the intersection point on BC and draw another arc that intersects the first arc.
      • Draw a ray from C through this intersection point. This ray forms a 60∘60^\circ angle with BC.
    • At point B, construct an angle of 45∘45^\circ. To do this:
      • First, construct a 90∘90^\circ angle at B. Extend BC to the left. Place the compass at B and draw an arc intersecting the line at two points. From these two points, draw arcs above B that intersect. Draw a ray from B through this intersection point to form a 90∘90^\circ angle with BC.
      • Bisect the 90∘90^\circ angle. Place the compass at B and draw an arc intersecting the 90∘90^\circ ray and BC. From these two intersection points, draw arcs that intersect within the angle.
      • Draw a ray from B through this intersection point. This ray forms a 45∘45^\circ angle with BC.
    • The intersection of the 60∘60^\circ ray from C and the 45∘45^\circ ray from B is point A.
  2. Construct Locus X, the locus of points equidistant from B and C.

    This is the perpendicular bisector of the line segment BC.

    • Place the compass at B and open it to a radius greater than half the length of BC. Draw arcs above and below BC.
    • Without changing the compass radius, place the compass at C and draw arcs that intersect the previous arcs.
    • Draw a straight line connecting the two intersection points of the arcs. This line is Locus X.
  3. Construct Locus Y, the locus of points 1/2 of points from A.

    We interpret "1/2 of points from A" as the locus of points at a distance of half the length of BC from A.

    • Calculate the radius: R=12×BC=12×10 cm=5 cmR = \frac{1}{2} \times BC = \frac{1}{2} \times 10 \text{ cm} = 5 \text{ cm}.
    • Set the compass to a radius of 5 cm5 \text{ cm}.
    • Place the compass point at A.
    • Draw a circle. This circle is Locus Y.
  4. Find the points of intersection of Locus X and Locus Y.

    • The points where the perpendicular bisector (Locus X) intersects the circle (Locus Y) are the required points of intersection. Mark these points.
Was this helpful?

Still stuck on this one?

Ask a follow-up, and the answer starts from this question.

Got a different question?Ask your own question

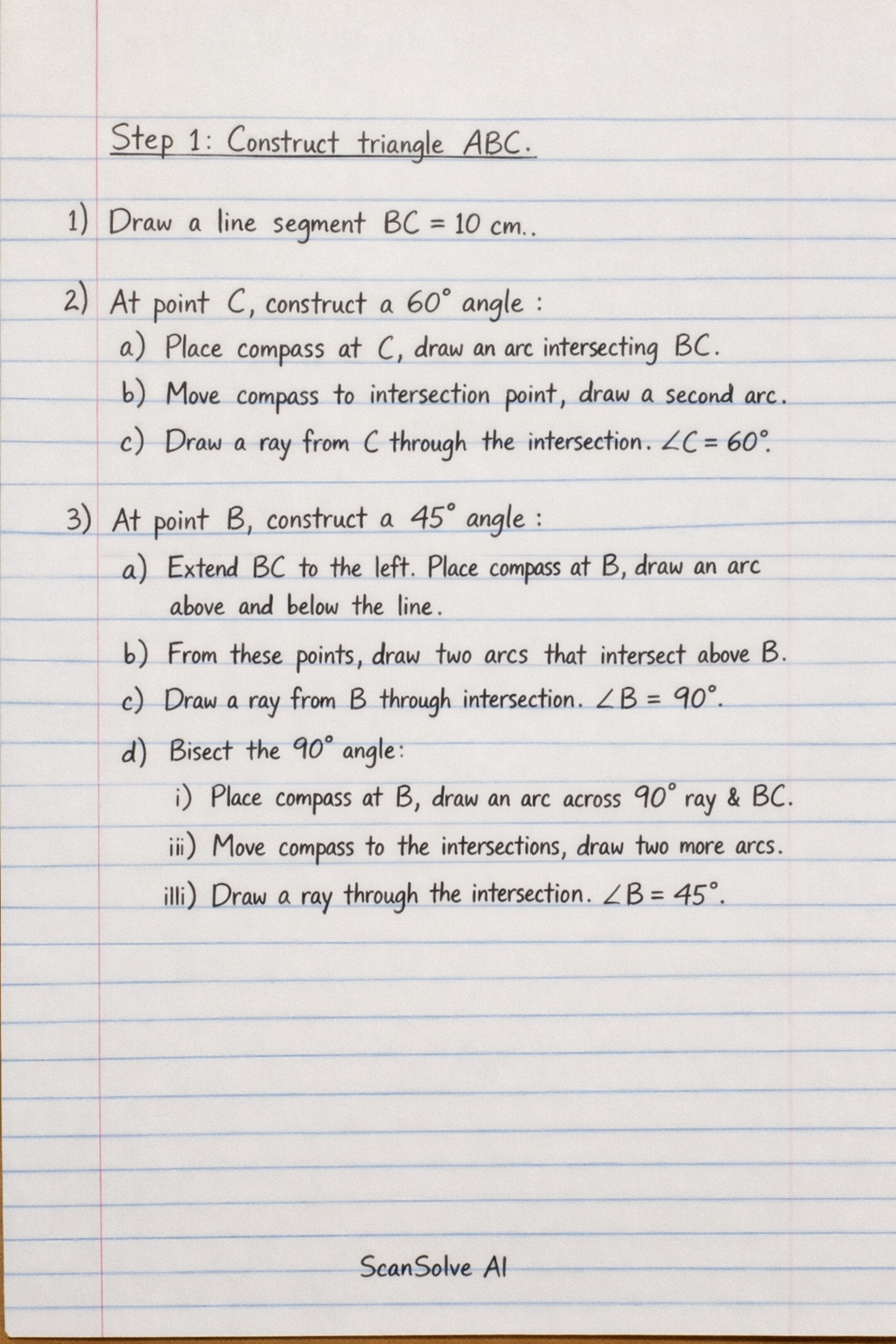

Handwritten step-by-step solution preview
