We read your photo as:

In the diagram below triangle EFG has a right angle at f.

Mathematics

ScanSolve AI Answer

Answer

atan⁡(ϕ)\mathbf{\frac{a}{\tan(\phi)}}

asin⁡(ϕ)\mathbf{\frac{a}{\sin(\phi)}}

Step-by-step solution

3 steps

The question asks about triangle EFG, which has a right angle at F. Side EF is given as aa, and angle G is ϕ\phi. Since the specific question is not visible, I will assume you need to express the lengths of the other two sides, FG and EG, in terms of aa and ϕ\phi.

  1. Identify the knowns and unknowns in relation to angle ϕ\phi.

    In the right-angled triangle EFG:

    • Angle F is 90∘90^\circ.
    • Side EF is opposite to angle G, so opposite=a\text{opposite} = a.
    • Side FG is adjacent to angle G, so adjacent=FG\text{adjacent} = FG.
    • Side EG is the hypotenuse, so hypotenuse=EG\text{hypotenuse} = EG.
    • Angle G is ϕ\phi.
  2. Express side FG using the tangent ratio.

    The tangent of an angle in a right-angled triangle is the ratio of the length of the opposite side to the length of the adjacent side.

    tan⁡(ϕ)=oppositeadjacent\tan(\phi) = \frac{\text{opposite}}{\text{adjacent}}

    Substitute the known values:

    tan⁡(ϕ)=EFFG=aFG\tan(\phi) = \frac{EF}{FG} = \frac{a}{FG}

    Rearrange the equation to solve for FG:

    FG=atan⁡(ϕ)FG = \frac{a}{\tan(\phi)}

    The length of side FG is atan⁡(ϕ)\boxed{\mathbf{\frac{a}{\tan(\phi)}}}

  3. Express side EG using the sine ratio.

    The sine of an angle in a right-angled triangle is the ratio of the length of the opposite side to the length of the hypotenuse.

    sin⁡(ϕ)=oppositehypotenuse\sin(\phi) = \frac{\text{opposite}}{\text{hypotenuse}}

    Substitute the known values:

    sin⁡(ϕ)=EFEG=aEG\sin(\phi) = \frac{EF}{EG} = \frac{a}{EG}

    Rearrange the equation to solve for EG:

    EG=asin⁡(ϕ)EG = \frac{a}{\sin(\phi)}

    The length of side EG is asin⁡(ϕ)\boxed{\mathbf{\frac{a}{\sin(\phi)}}}

Was this helpful?

Try one yourself

A new problem that tests the same skill.

Still stuck on this one?

Ask a follow-up, and the answer starts from this question.

Got a different question?Ask your own question

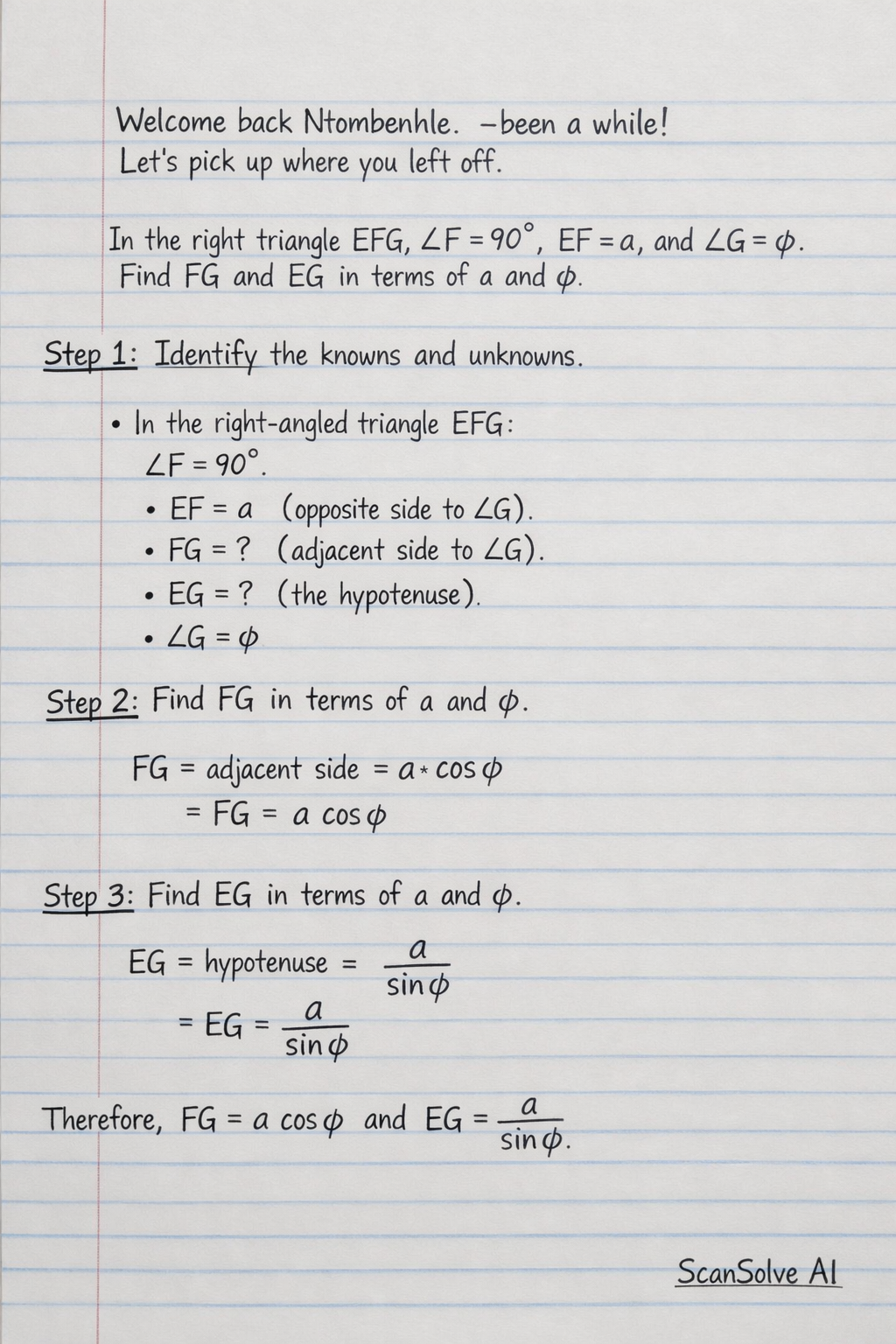

Handwritten step-by-step solution preview
