We read your photo as:

Understand the properties of the angles in STR.

Mathematics

ScanSolve AI Answer

Answer

8∘8^\circ

Step-by-step solution

5 steps
  1. Understand the properties of the angles in △STR\triangle STR.

    In △STR\triangle STR, the sum of angles is 180∘180^\circ.
    We are given that ∠STR=44∘\angle STR = 44^\circ.
    RT is the bisector of ∠R\angle R, so ∠SRT=12∠R\angle SRT = \frac{1}{2} \angle R.
    ST is the bisector of ∠S\angle S, so ∠TSR=12∠S\angle TSR = \frac{1}{2} \angle S.
    Therefore, we can write the sum of angles in △STR\triangle STR as:

    ∠STR+∠SRT+∠TSR=180∘\angle STR + \angle SRT + \angle TSR = 180^\circ 44∘+12∠R+12∠S=180∘44^\circ + \frac{1}{2} \angle R + \frac{1}{2} \angle S = 180^\circ
  2. Find the sum of ∠R\angle R and ∠S\angle S.

    From the equation in Step 1:

    12(∠R+∠S)=180∘−44∘\frac{1}{2} (\angle R + \angle S) = 180^\circ - 44^\circ 12(∠R+∠S)=136∘\frac{1}{2} (\angle R + \angle S) = 136^\circ ∠R+∠S=2×136∘\angle R + \angle S = 2 \times 136^\circ ∠R+∠S=272∘\angle R + \angle S = 272^\circ
  3. Use the sum of angles in quadrilateral PQRS.

    The sum of interior angles in any quadrilateral is 360∘360^\circ.

    ∠P+∠Q+∠R+∠S=360∘\angle P + \angle Q + \angle R + \angle S = 360^\circ

    Substitute the value of (∠R+∠S)(\angle R + \angle S) from Step 2:

    ∠P+∠Q+272∘=360∘\angle P + \angle Q + 272^\circ = 360^\circ ∠P+∠Q=360∘−272∘\angle P + \angle Q = 360^\circ - 272^\circ ∠P+∠Q=88∘\angle P + \angle Q = 88^\circ
  4. Use the given ratio of ∠P\angle P and ∠Q\angle Q to find their individual measures.

    The ratio of ∠P\angle P to ∠Q\angle Q is 5:65:6.
    Let ∠P=5x\angle P = 5x and ∠Q=6x\angle Q = 6x.
    Substitute these into the equation from Step 3:

    5x+6x=88∘5x + 6x = 88^\circ 11x=88∘11x = 88^\circ x=88∘11x = \frac{88^\circ}{11} x=8∘x = 8^\circ

    Now, calculate the measures of ∠P\angle P and ∠Q\angle Q:

    ∠P=5x=5×8∘=40∘\angle P = 5x = 5 \times 8^\circ = 40^\circ ∠Q=6x=6×8∘=48∘\angle Q = 6x = 6 \times 8^\circ = 48^\circ
  5. Calculate the difference between ∠P\angle P and ∠Q\angle Q.

    Difference = ∣∠Q−∠P∣|\angle Q - \angle P|
    Difference = ∣48∘−40∘∣|48^\circ - 40^\circ|
    Difference = 8∘8^\circ

    The difference between the measures of ∠P\angle P and ∠Q\angle Q is 8∘\boxed{8^\circ}.

Was this helpful?

Try one yourself

A new problem that tests the same skill.

Still stuck on this one?

Ask a follow-up, and the answer starts from this question.

Got a different question?Ask your own question

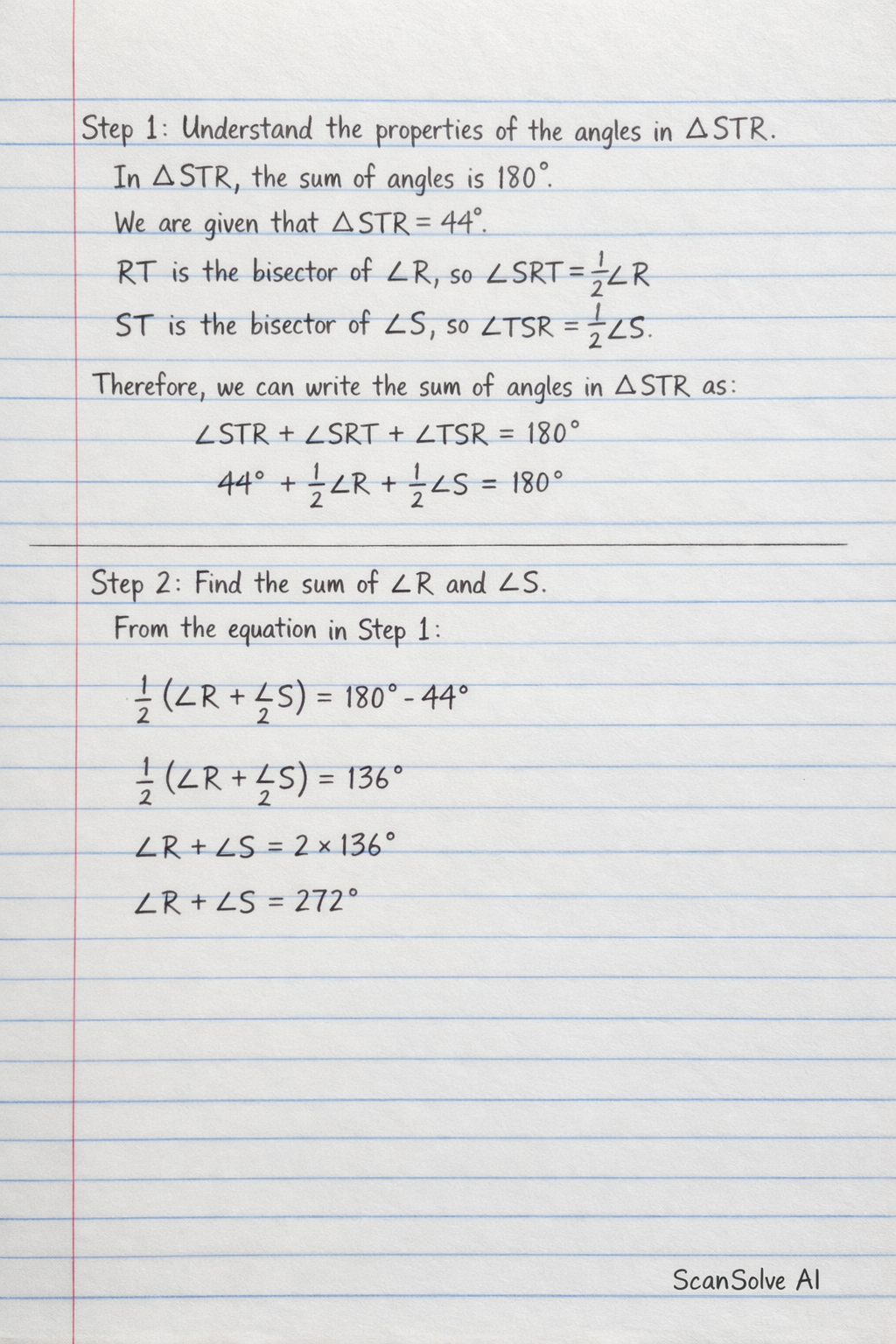

Handwritten step-by-step solution preview
