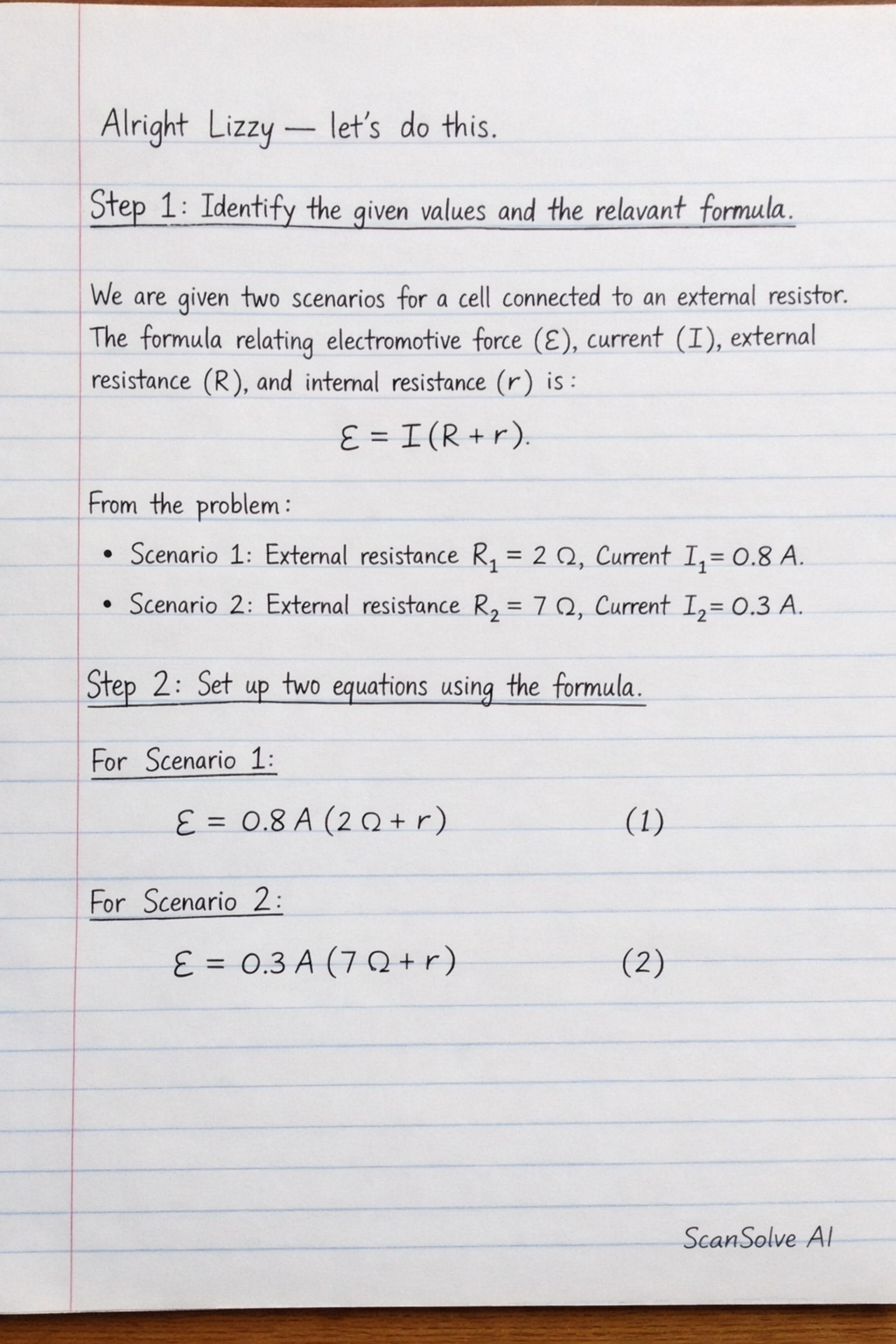

Alright Lizzy — let's do this. Step 1: Identify the given values and the relevant formula. We are given two scenarios for a cell connected to an external resistor. The formula relating electromotive force (E), current (I), external resistance (R), and internal resistance (r) is E = I(R + r). From the problem: • Scenario 1: External resistance R_1 = 2 \, , Current I_1 = 0.8 \, A. • Scenario 2: External resistance R_2 = 7 \, , Current I_2 = 0.3 \, A. Step 2: Set up two equations using the formula. For Scenario 1: E = 0.8 \, A (2 \, + r) (1) For Scenario 2: E = 0.3 \, A (7 \, + r) (2) Step 3: Equate the two expressions for E and solve for r. Since both equations equal E, we can set them equal to each other: 0.8(2 + r) = 0.3(7 + r) Distribute the current values: 1.6 + 0.8r = 2.1 + 0.3r Rearrange the terms to solve for r: 0.8r - 0.3r = 2.1 - 1.6 0.5r = 0.5 r = (0.5)/(0.5) r = 1 \, Step 4: Substitute the value of r back into either equation (1) or (2) to find E. Using equation (1): E = 0.8(2 + 1) E = 0.8(3) E = 2.4 \, V The electromotive force (EMF) of the cell is 2.4 V and the internal resistance of the cell is 1 . Send me the next one 📸
