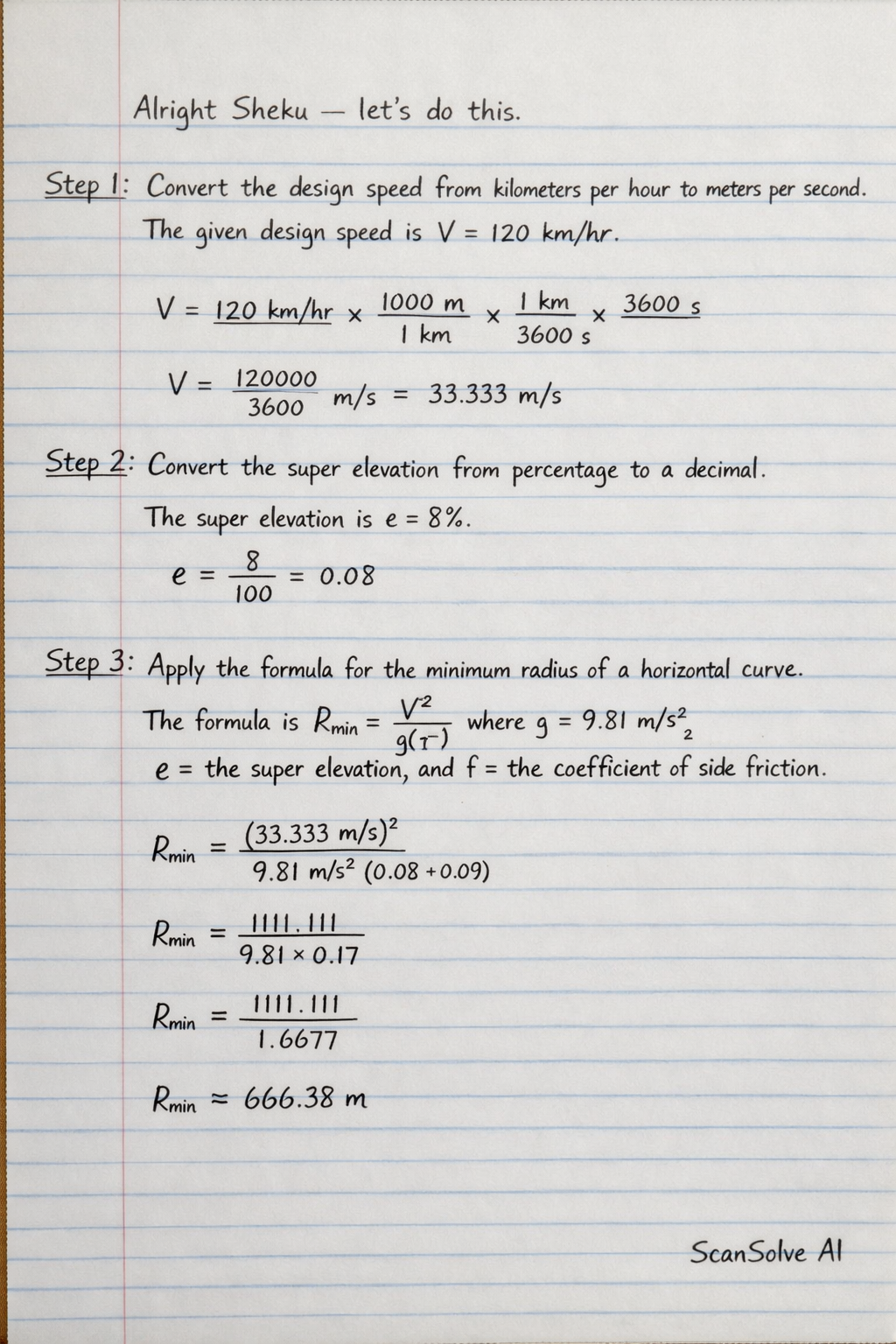

To determine the minimum radius of the curve, we will use the horizontal curve design formula that incorporates super elevation and side friction. Step 1: Convert the design speed from kilometers per hour to meters per second. The given design speed is V = 120 km/hr. V = 120 km/hr × 1000 m1 km × 1 hr3600 s V = (120000)/(3600) m/s = 33.333 m/s Step 2: Convert the super elevation from percentage to a decimal. The super elevation is e = 8\%. e = (8)/(100) = 0.08 Step 3: Apply the formula for the minimum radius of a horizontal curve. The formula is R_min = (V^2)/(g(e+f)), where g is the acceleration due to gravity (9.81 m/s^2), e is the super elevation, and f is the coefficient of side friction. R_min = (33.333 m/s)^29.81 m/s^2 (0.08 + 0.09) R_min = (1111.111)/(9.81 × 0.17) R_min = (1111.111)/(1.6677) R_min ≈ 666.38 m The minimum radius of the curve that will provide safe vehicle operation is approximately 666.38 m. 666.38 m What's next?
