We read your photo as:

A simply supported beam of length 10 units has a point load of 6 units at its center. Calculate the reactions at the supports A and B.

Physics

ScanSolve AI Answer

Step-by-step solution

2 steps

The image shows a simply supported beam with a point load at its center.

  • The point load at C is 6 units.
  • The distance from A to C is 5 units.
  • The distance from C to B is 5 units.
  • The total length of the beam is 5+5=105 + 5 = 10 units.

Your handwritten calculations show RA+RB=10R_A + R_B = 10. However, the diagram clearly indicates a single downward load of 6 units. For the beam to be in static equilibrium, the sum of upward reactions must equal the sum of downward loads. Therefore, RA+RBR_A + R_B should be equal to 6, not 10.

I will proceed by assuming the point load shown in the diagram (6 units) is correct. This means the sum of vertical forces must be equal to this load (RA+RB=6R_A + R_B = 6). This will result in different reaction forces for RAR_A than you calculated.

  1. Calculate the Reactions at Supports A and B

    Let RAR_A be the reaction force at support A and RBR_B be the reaction force at support B.

    • Sum of vertical forces (∑Fy=0\sum F_y = 0):

      RA+RB−6=0R_A + R_B - 6 = 0 RA+RB=6(∗)R_A + R_B = 6 \quad (*)

    • Sum of moments about point A (∑MA=0\sum M_A = 0): (Assume counter-clockwise moments are positive)

      (RB×10)−(6×5)=0(R_B \times 10) - (6 \times 5) = 0 10RB−30=010 R_B - 30 = 0 10RB=3010 R_B = 30 RB=3010R_B = \frac{30}{10} RB=3 unitsR_B = 3 \text{ units}

    • Substitute RBR_B into equation (∗)(*) to find RAR_A:

      RA+3=6R_A + 3 = 6 RA=6−3R_A = 6 - 3 RA=3 unitsR_A = 3 \text{ units}

    So, the correct reaction forces are RA=3R_A = 3 units and RB=3R_B = 3 units.

  2. Calculate the Shear Force (V(x)V(x))

    We will analyze the beam in two sections:

    1. From A to C (0≤x<50 \le x < 5)
    2. From C to B ($5 < x \le 10
Was this helpful?

Still stuck on this one?

Ask a follow-up, and the answer starts from this question.

Got a different question?Ask your own question

More Physics Questions

QA simply supported beam of 8m length is subjected to three concentrated loads of 10kN, 15kN, and…QA simply supported beam is loaded as shown in FIGURE 1. By referring to FIGURE 1 determine the…QA uniform beam of mass 20 kg and length 2.4 m supports a load of 10 kg. What are the forces acting…QConsider the loaded beam in FIGURE 1 below and answer the following questions. Calculate the…QA light, horizontal beam, ABCDE, with A on the left-hand side is 26 m long. It is supported at two…
Browse by topic:Civil Engineering
See all Physics questions →
Got a syllabus? Photograph it and I'll tell you what's due and what's worth the most.

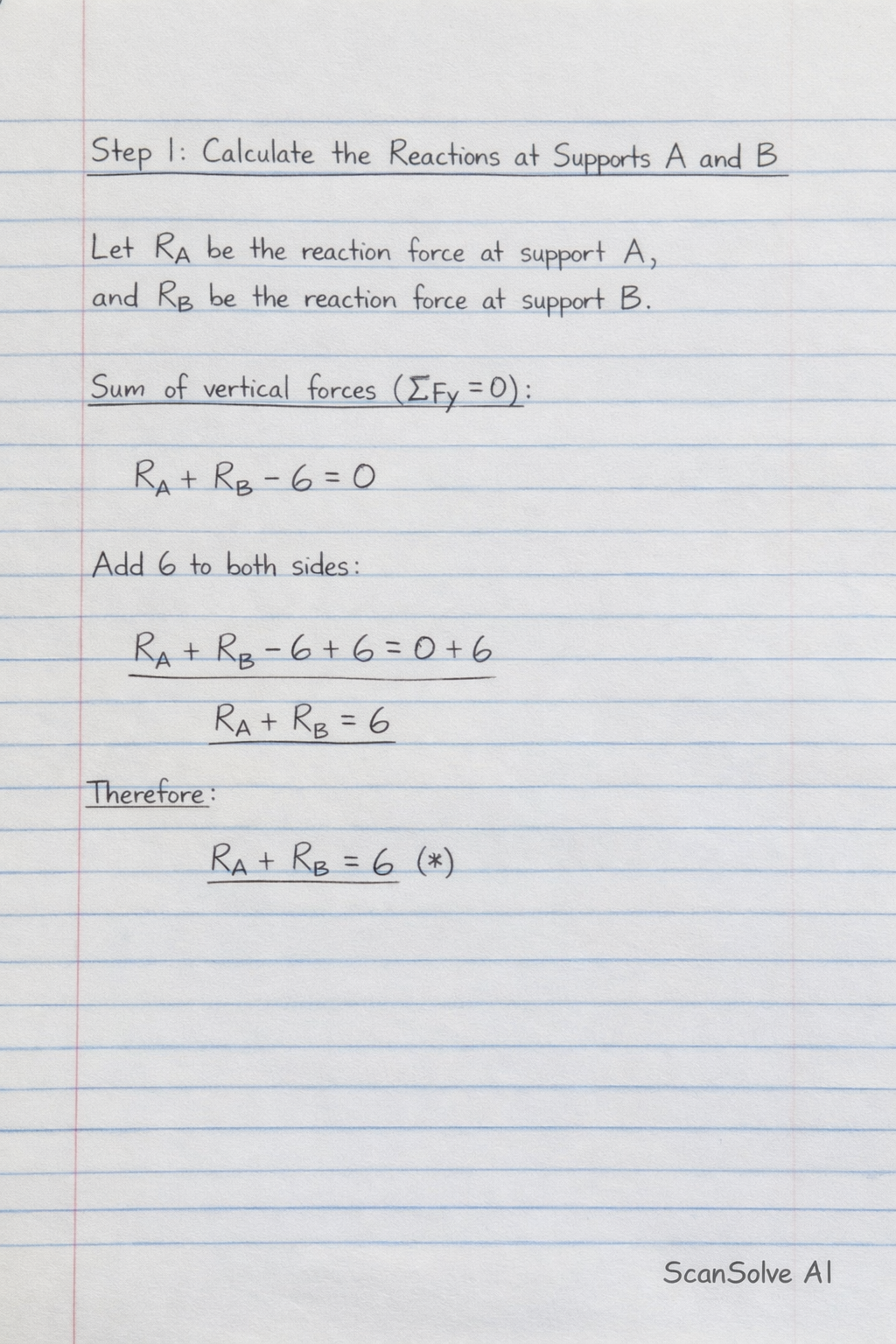

Handwritten step-by-step solution preview
