A tractor weighing 4 tonnes has four tyres with a total contact area of 4000 cm2. A car weighing 1 tonne has four tyres with a total contact area of 250 cm2. Calculate the pressure exerted by each veh

Physics

ScanSolve AI Answer

Step-by-step solution

3 steps

Here are the answers to your tasks:

Part a

The physical features leading to the observation are

  • The tractor has large tyres with a large contact area (4000 cm2^2). This distributes its heavy weight over a wider surface.
  • The car has smaller tyres with a small contact area (250 cm2^2). This concentrates its weight onto a smaller surface.

Part b· 3 steps

Comparison of pressure exerted

First, convert mass to force (weight) and area to square meters. Assume acceleration due to gravity g=10 m/s2g = 10 \text{ m/s}^2.
1 tonne = 1000 kg
1 cm2^2 = 10−410^{-4} m2^2

  1. Calculate the pressure exerted by the tractor.

    Mass of tractor (mTm_T) = 4 tonnes = 4×1000 kg=4000 kg4 \times 1000 \text{ kg} = 4000 \text{ kg}
    Weight of tractor (FTF_T) = mT×g=4000 kg×10 m/s2=40000 Nm_T \times g = 4000 \text{ kg} \times 10 \text{ m/s}^2 = 40000 \text{ N}
    Contact area of tractor (ATA_T) = 4000 cm2^2 = 4000×10−4 m2=0.4 m24000 \times 10^{-4} \text{ m}^2 = 0.4 \text{ m}^2
    Pressure exerted by tractor (PTP_T) is:

    PT=FTAT=40000 N0.4 m2=100000 PaP_T = \frac{F_T}{A_T} = \frac{40000 \text{ N}}{0.4 \text{ m}^2} = 100000 \text{ Pa}
  2. Calculate the pressure exerted by the car.

    Mass of car (mCm_C) = 1 tonne = 1×1000 kg=1000 kg1 \times 1000 \text{ kg} = 1000 \text{ kg}
    Weight of car (FCF_C) = mC×g=1000 kg×10 m/s2=10000 Nm_C \times g = 1000 \text{ kg} \times 10 \text{ m/s}^2 = 10000 \text{ N}
    Contact area of car (ACA_C) = 250 cm2^2 = 250×10−4 m2=0.025 m2250 \times 10^{-4} \text{ m}^2 = 0.025 \text{ m}^2
    Pressure exerted by car (PCP_C) is:

    PC=FCAC=10000 N0.025 m2=400000 PaP_C = \frac{F_C}{A_C} = \frac{10000 \text{ N}}{0.025 \text{ m}^2} = 400000 \text{ Pa}
  3. Compare the pressures.

    The pressure exerted by the tractor is 100000 Pa100000 \text{ Pa}.
    The pressure exerted by the car is 400000 Pa400000 \text{ Pa}.
    The car exerts a higher pressure on the ground than the tractor, which is why it sinks.

    c) To enable the father's car to move on soft ground with ease, its contact area with the ground should be increased. This can be achieved by fitting the car with wider tyres or tracks (like those on a tractor). Increasing the area reduces the pressure exerted on the soft ground, preventing the car from sinking.

    d) One application in real life where knowledge on pressure is applied is in the design of snowshoes. Snowshoes have a large surface area that distributes a person's weight over a wider area, reducing the pressure on the snow and preventing the person from sinking.

Was this helpful?

Still stuck on this one?

Ask a follow-up, and the answer starts from this question.

Got a different question?Ask your own question

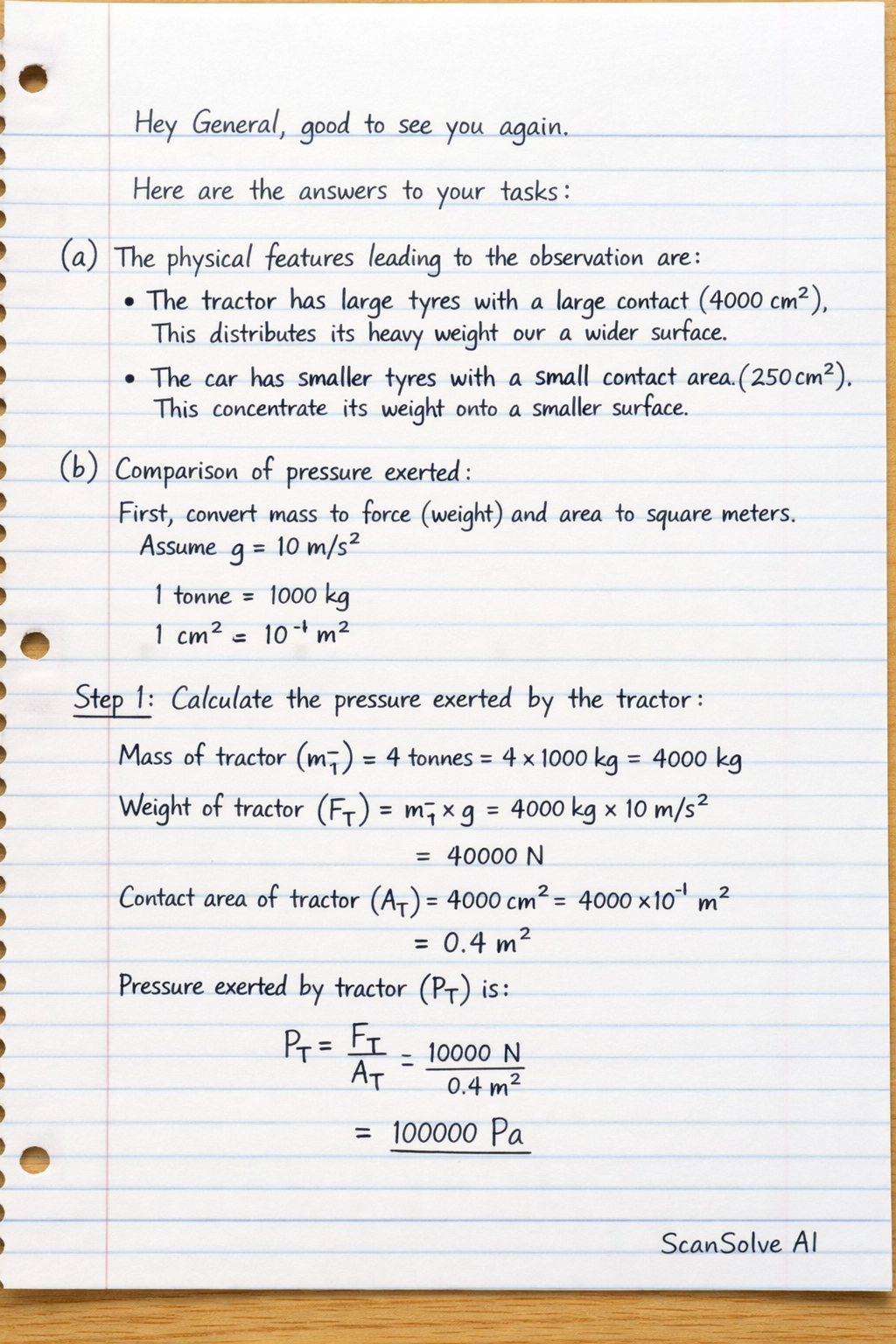

Handwritten step-by-step solution preview
