This physics problem tests your understanding of fundamental physical laws and their applications. The step-by-step solution below breaks down the problem using relevant equations and physical reasoning.
ScanSolve AI Answer

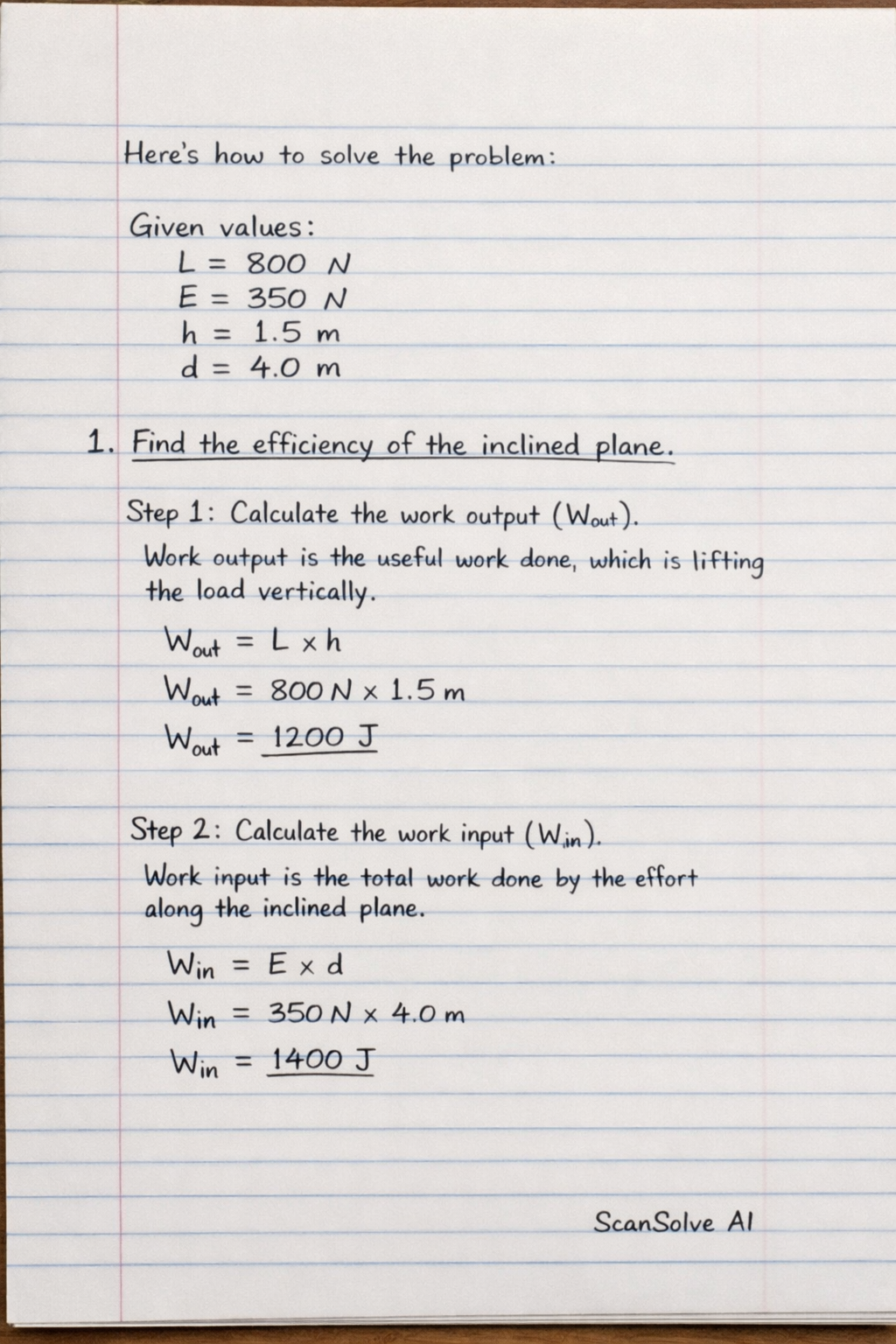

Here's how to solve the problem: Given values: Load (L) = 800 \, N Effort (E) = 350 \, N Vertical height (h) = 1.5 \, m Distance along the plane (d) = 4.0 \, m 1. Find the efficiency of the inclined plane. Step 1: Calculate the work output (W_out). Work output is the useful work done, which is lifting the load vertically. W_out = L × h W_out = 800 \, N × 1.5 \, m W_out = 1200 \, J Step 2: Calculate the work input (W_in). Work input is the total work done by the effort along the inclined plane. W_in = E × d W_in = 350 \, N × 4.0 \, m W_in = 1400 \, J Step 3: Calculate the efficiency (). Efficiency is the ratio of work output to work input, expressed as a percentage. = W_outW_in × 100\% = 1200 \, J1400 \, J × 100\% = (12)/(14) × 100\% = (6)/(7) × 100\% ≈ 0.8571 × 100\% ≈ 85.7\% 2. Find the work done against friction as the load is raised. Step 4: Calculate the work done against friction (W_f). The work done against friction is the difference between the work input and the work output. W_f = W_in - W_out W_f = 1400 \, J - 1200 \, J W_f = 200 \, J That's 2 down. 3 left today — send the next one.
