This physics problem tests your understanding of fundamental physical laws and their applications. The step-by-step solution below breaks down the problem using relevant equations and physical reasoning.
ScanSolve AI Answer

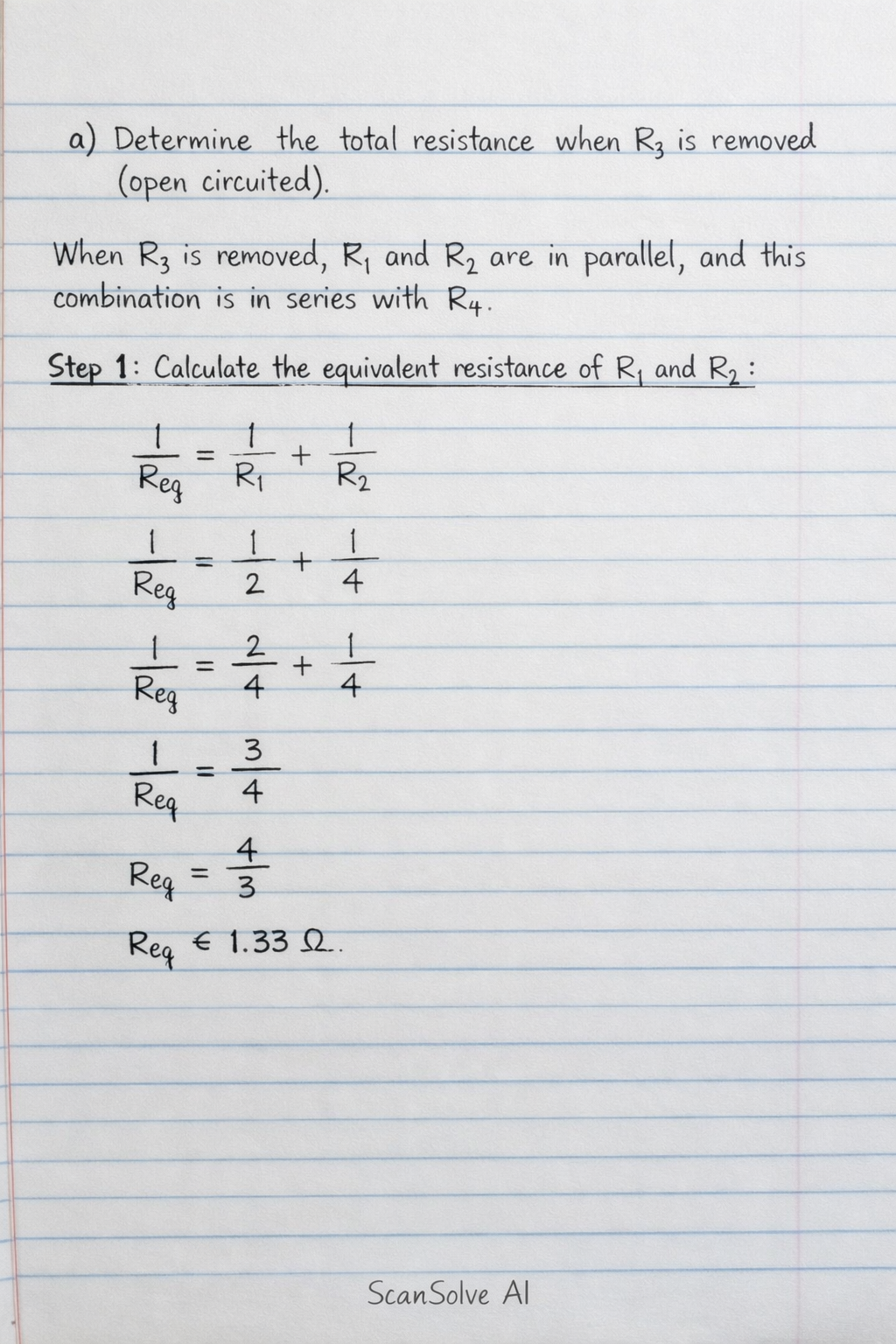

Here are the solutions to your questions: 1) Consider the circuit of Figure 1 Given resistors: R_1 = 2 \, , R_2 = 4 \, , R_3 = 5 \, , R_4 = 4 \, . Source voltage: V = 12 \, V. a) Determine the total resistance when R3 is removed (open circuited) When R_3 is removed, R_1 and R_2 are in parallel, and this combination is in series with R_4. Step 1: Calculate the equivalent resistance of R_1 and R_2
