Calculate the total resistance of a circuit with a 6V EMF source, 0.5 Ohm internal resistance, and resistors R1=2 Ohm, R2=2 Ohm, R3=3 Ohm, R4=2 Ohm when the switch is closed.

Question

Asked on April 20, 2026Physics

This physics problem tests your understanding of fundamental physical laws and their applications. The step-by-step solution below breaks down the problem using relevant equations and physical reasoning.

Accepted Answer · 2026-04-20T14:18:40.446Z

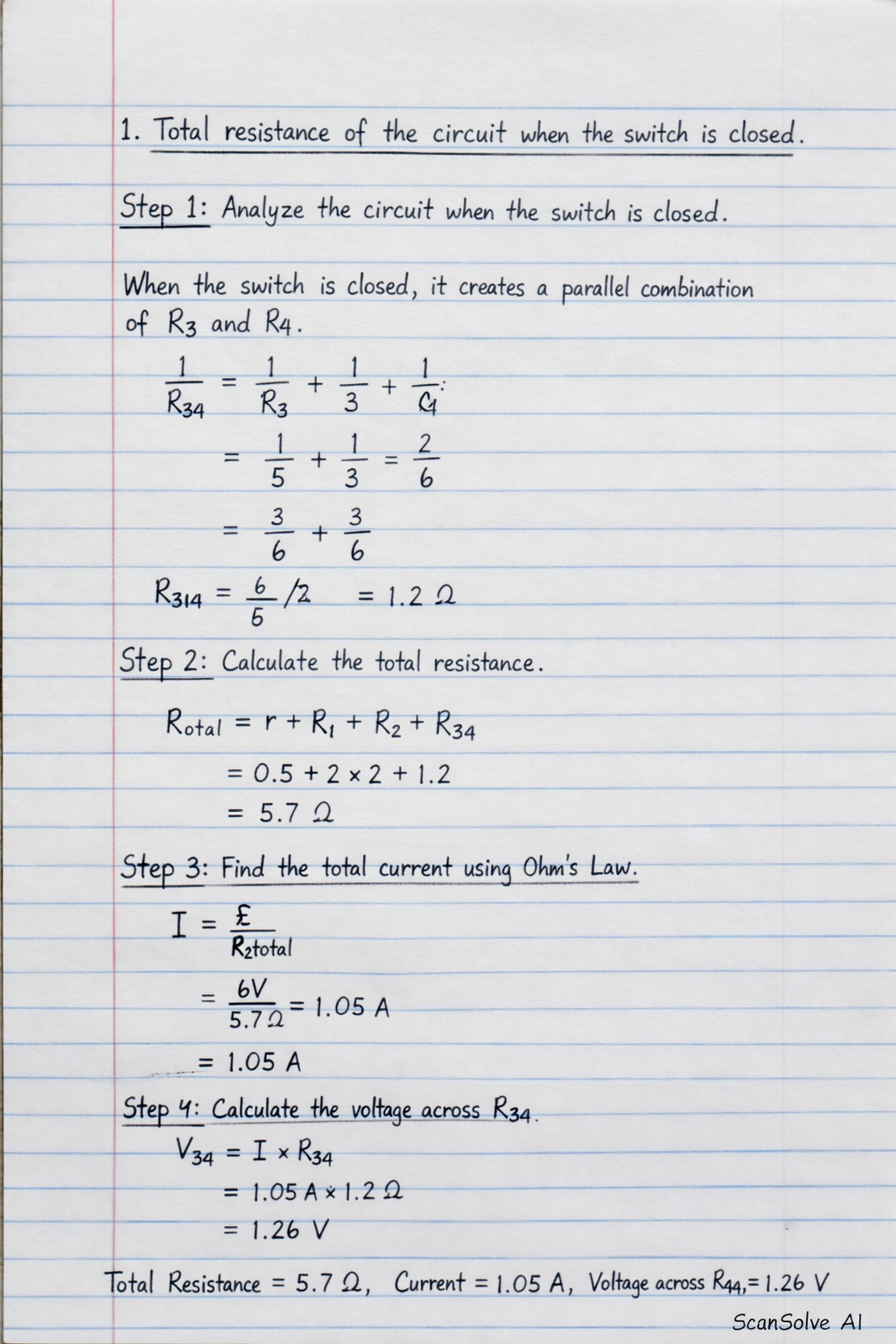

Here are the solutions to the circuit problems: Given values: Electromotive force (EMF) of the source, E = 6 \, V Internal resistance of the source, r = 0.5 \, Resistance R_1 = 2 \, Resistance R_2 = 2 \, Resistance R_3 = 3 \, Resistance R_4 = 2 \, --- I. Total resistance of the circuit when the switch is closed. Step 1: Analyze the circuit when the switch is closed. When the switch is closed, it creates a

Accepted Answer · 2026-04-20T14:18:40.446Z

Here are the solutions to the circuit problems: Given values: Electromotive force (EMF) of the source, E = 6 \, V Internal resistance of the source, r = 0.5 \, Resistance R_1 = 2 \, Resistance R_2 = 2 \, Resistance R_3 = 3 \, Resistance R_4 = 2 \, --- I. Total resistance of the circuit when the switch is closed. Step 1: Analyze the circuit when the switch is closed. When the switch is closed, it creates a

Calculate the total resistance of a circuit with a 6V EMF source, 0.5 Ohm internal resistance, and resistors R1=2 Ohm, R2=2 Ohm, R3=3 Ohm, R4=2 Ohm when the switch is closed.

Need help with your own homework?

More Physics Questions

Calculate the total resistance of a circuit with a 6V EMF source, 0.5 Ohm internal resistance, and resistors R1=2 Ohm, R2=2 Ohm, R3=3 Ohm, R4=2 Ohm when the switch is closed.
