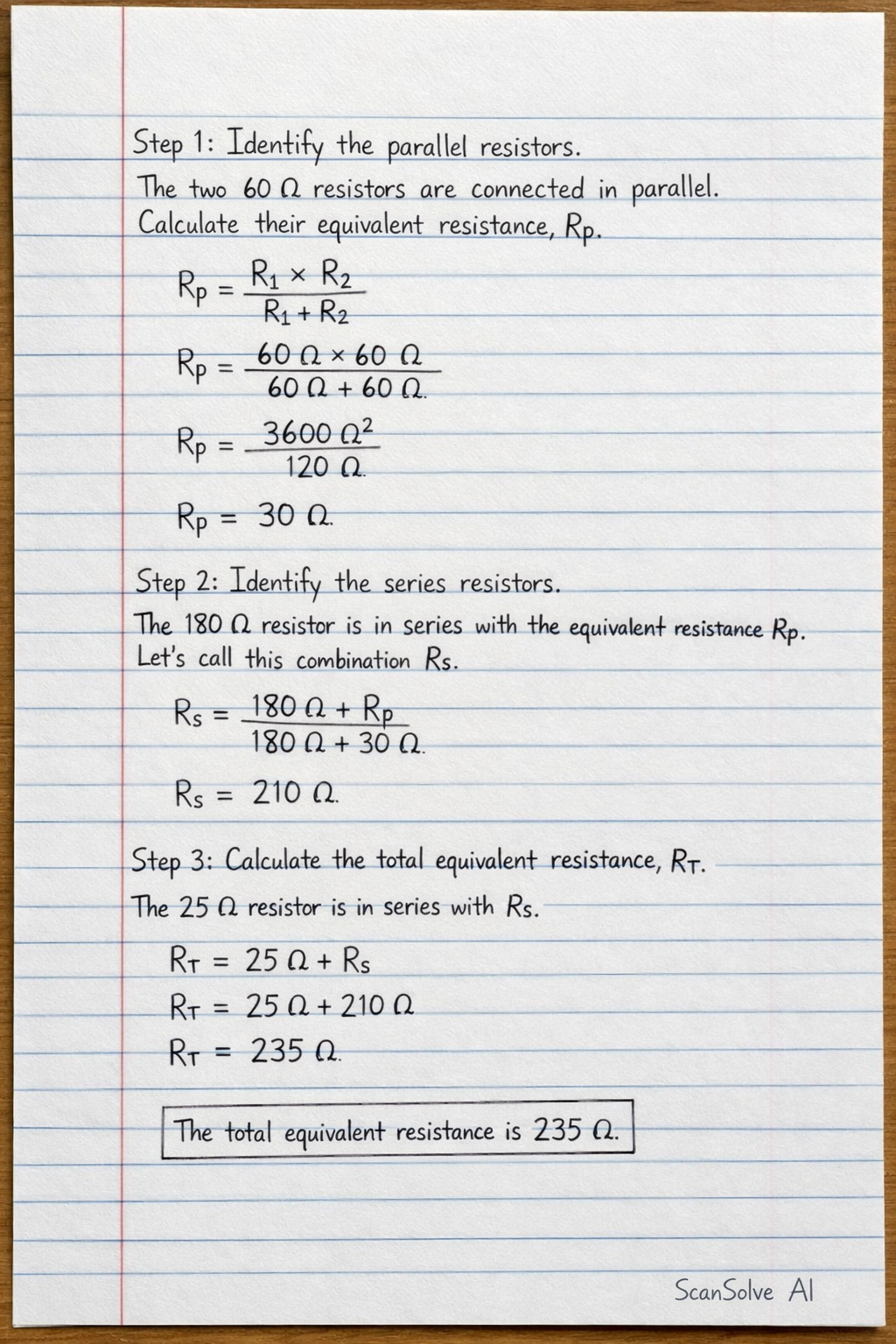

Step 1: Identify the parallel resistors. The two 60 \, resistors are connected in parallel. Calculate their equivalent resistance, R_p. R_p = (R_1 × R_2)/(R_1 + R_2) R_p = (60 \, × 60 \, )/(60 \, + 60 \, ) R_p = (3600 \, ^2)/(120 \, ) R_p = 30 \, Step 2: Identify the series resistors. The 180 \, resistor is in series with the equivalent resistance R_p. Let's call this combination R_s. R_s = 180 \, + R_p R_s = 180 \, + 30 \, R_s = 210 \, Step 3: Calculate the total equivalent resistance, R_T. The 25 \, resistor is in series with R_s. R_T = 25 \, + R_s R_T = 25 \, + 210 \, R_T = 235 \, The total equivalent resistance is 235 .
