šŸ”¹ Question 4 Three resistors 2 Ī©, 3 Ī©, and 5 Ī© are connected in series across a 20 V battery. Find the total current flowing through the circuit. šŸ”¹ Question 5 In the same circuit as Question 4, find the voltage drop across the 3 Ī© resistor. šŸ”¹ Question 6 Two resistors, R1=8 Ī© and R2=4 Ī©, are connected in parallel, and the combination is connected in series with a 2 Ī©resistor. The circuit is connected to a 24 V battery. Calculate: a) The total resistance b) The total current c) The power dissipated in the 4 Ī©resistor šŸ”¹ Question 7 Three resistors are connected in parallel. Two of them have values 3 Ī© and 6 Ī©. The total resistance is 1.5 Ī©. Calculate the value of the third resistor.

Physics

ScanSolve AI Answer

Step-by-step solution

2 steps

  1. Calculate the total resistance of the series circuit.

    For resistors connected in series, the total resistance RtotalR_{\text{total}} is the sum of individual resistances.

    Rtotal=R1+R2+R3R_{\text{total}} = R_1 + R_2 + R_3 Rtotal=2ā€‰Ī©+3ā€‰Ī©+5ā€‰Ī©R_{\text{total}} = 2 \, \Omega + 3 \, \Omega + 5 \, \Omega Rtotal=10ā€‰Ī©R_{\text{total}} = 10 \, \Omega

  2. Use Ohm's Law to find the total current flowing through the circuit.

    Ohm's Law states V=IRV = I R, where VV is the total voltage, II is the total current, and RR is the total resistance.

    Itotal=VtotalRtotalI_{\text{total}} = \frac{V_{\text{total}}}{R_{\text{total}}} Itotal=20ā€‰V10ā€‰Ī©I_{\text{total}} = \frac{20 \, \text{V}}{10 \, \Omega} Itotal=2ā€‰AI_{\text{total}} = 2 \, \text{A}

    The total current flowing through the circuit is 2Ā A\boxed{\text{2 A}}.

Was this helpful?

Still stuck on this one?

Ask a follow-up, and the answer starts from this question.

Got a different question?Ask your own question

More Physics Questions

QA circuit has two resistors in parallel, R1 = 4 ohms and R2 = 12 ohms, connected to a 9 V batteryā€¦QProblem solving/show you solution 2. A series circuit has a 9V battery connected to two resistorsā€¦QD.C Circuit: Three resistors 4 , 6 and 12 are connected in parallel to a 12V battery. Calculate: (8ā€¦QThe circuit shows a battery of negligible internal resistance connected to three resistors. (a)ā€¦QA circuit contains a 6V battery with internal resistance 2 ohms. Resistors P=10 ohms, Q=10 ohms, andā€¦
Browse by topic:Electrical Engineering
See all Physics questions ā†’
Got a syllabus? Photograph it and I'll tell you what's due and what's worth the most.

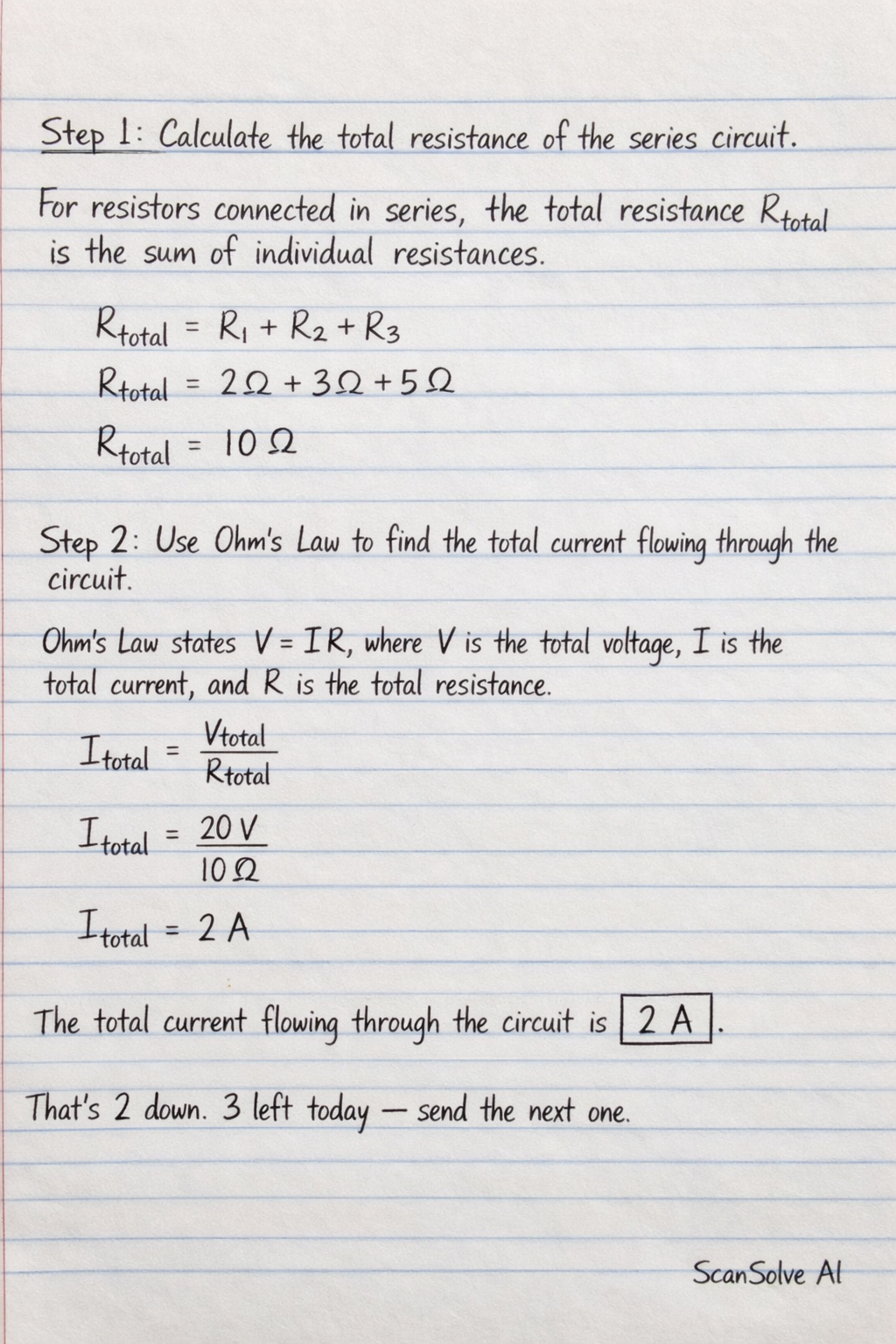

Handwritten step-by-step solution preview
